Section 3: Product Overview

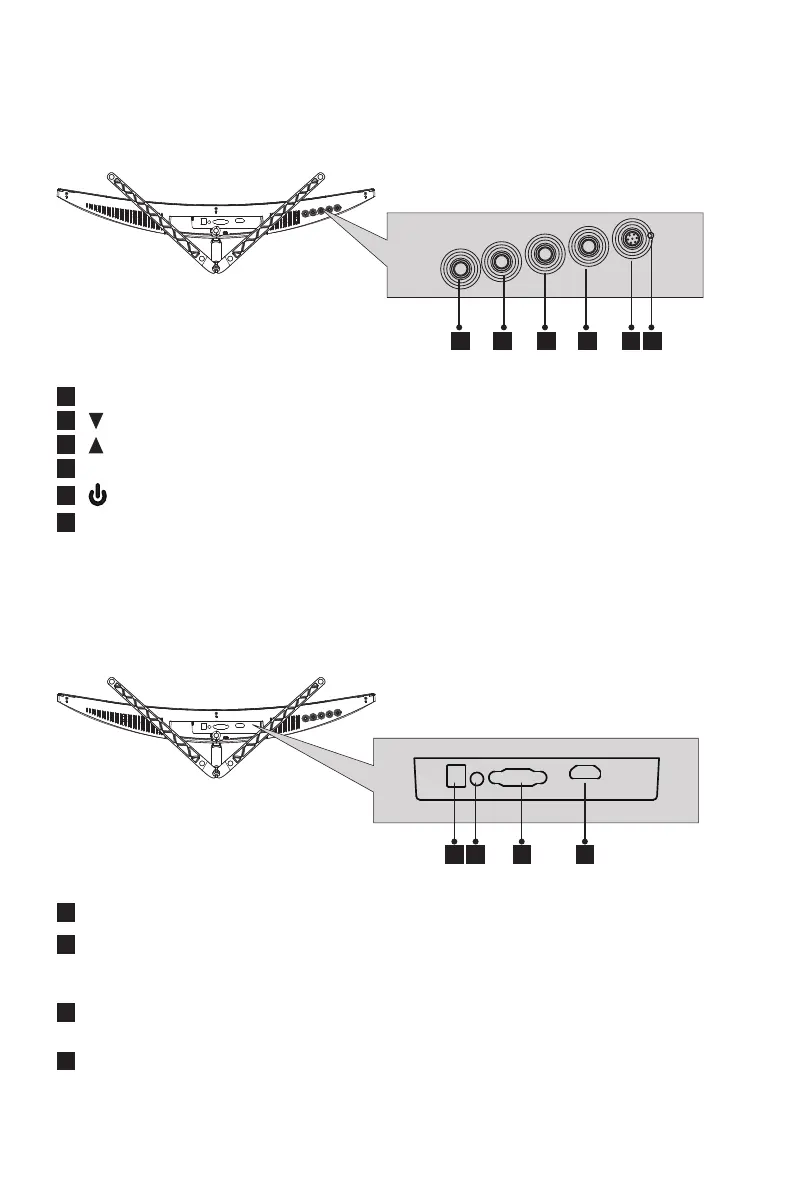

3.1 – Monitor Buttons
7
Power Connector: Insert the power cable to supply power to the monitor.
8
Audio Output: Insert one end of the audio cable into an external audio
source, e.g., speakers or headphones, to pass audio signals through the
monitor.
9
VGA Connector: Insert one end of the VGA cable into the computer’s VGA
output and connect the other end to the monitor’s VGA port.
10
HDMI Connector: Insert one end of the HDMI cable into the computer’s
HDMI output and connect the other end to the monitor’s HDMI port.
7 8 9 10
2 3 4 5 6 1
1
M Menu Button
: Press to display the OSD menu or enter sub-menus.
2
Down Button
: Press to move down in the menus.
3
Up Button
: Press to move up in the menus.
4
E Exit Button
: Press to exit.
5
Power Button
: Press to turn the monitor on/off.
6
LED Indicator: Changes colors to indicate status. Refer to Section 7.
3.2 – Monitor Ports
