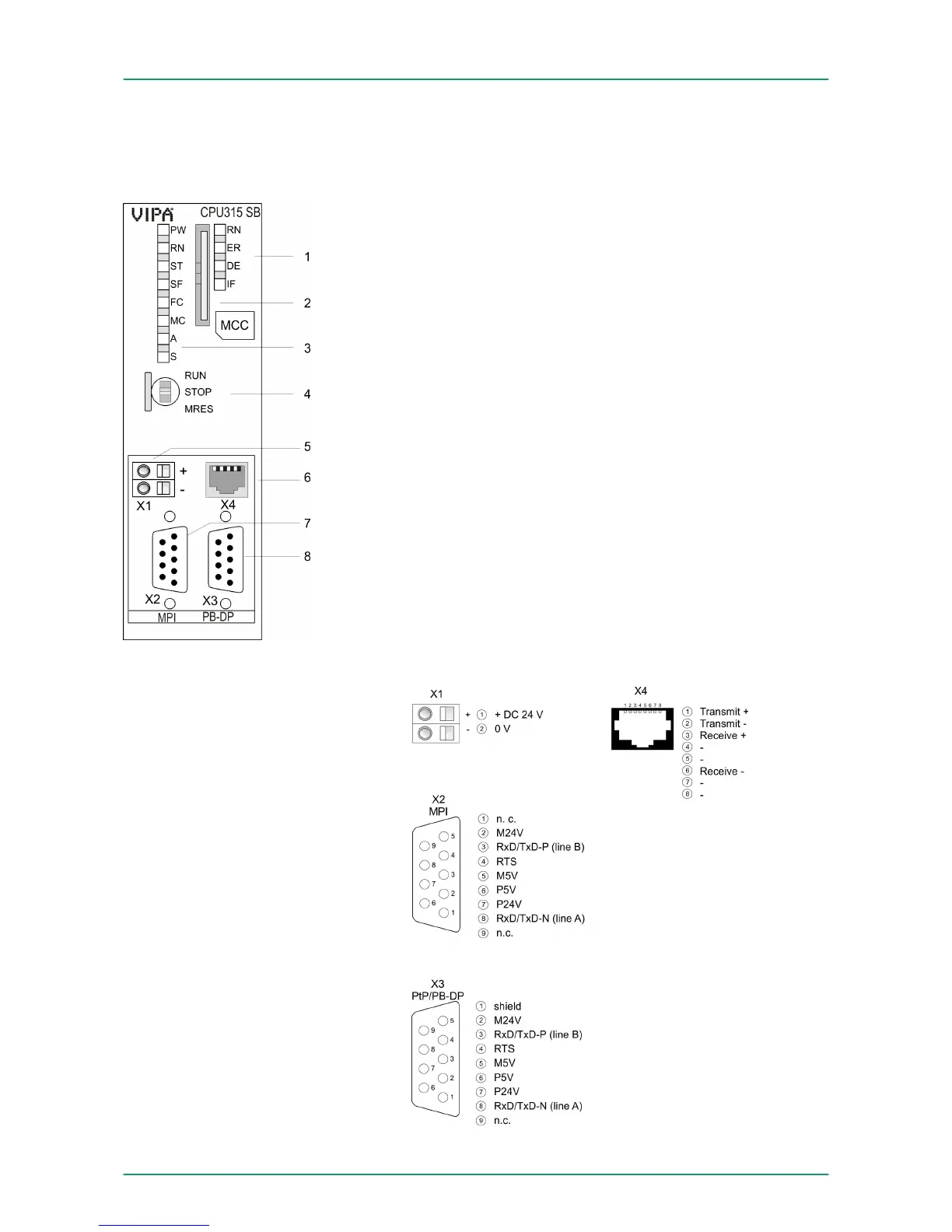

4.2 Structure
4.2.1
General
1 LEDs of the integrated PROFIBUS DP master
2 Storage media slot (lockable)
3 LEDs of the CPU part
4 Operating mode switch CPU
5 Slot for DC 24V power supply
6 Twisted pair interface for Ethernet PG/OP channel
7 MPI interface
8 PROFIBUS DP/PtP interface
Components 5 - 8 are under the front flap!
4.2.2
Interfaces
CPU 315-2AG13
VIPA System 300S CPUHardware description
Structure > Interfaces
HB140 | CPU | 315-2AG13 | GB | Rev. 14-40 26
