Viper 3121V - Installation Guide

13
© 2017 Directed. All rights reserved.
Installation Guide

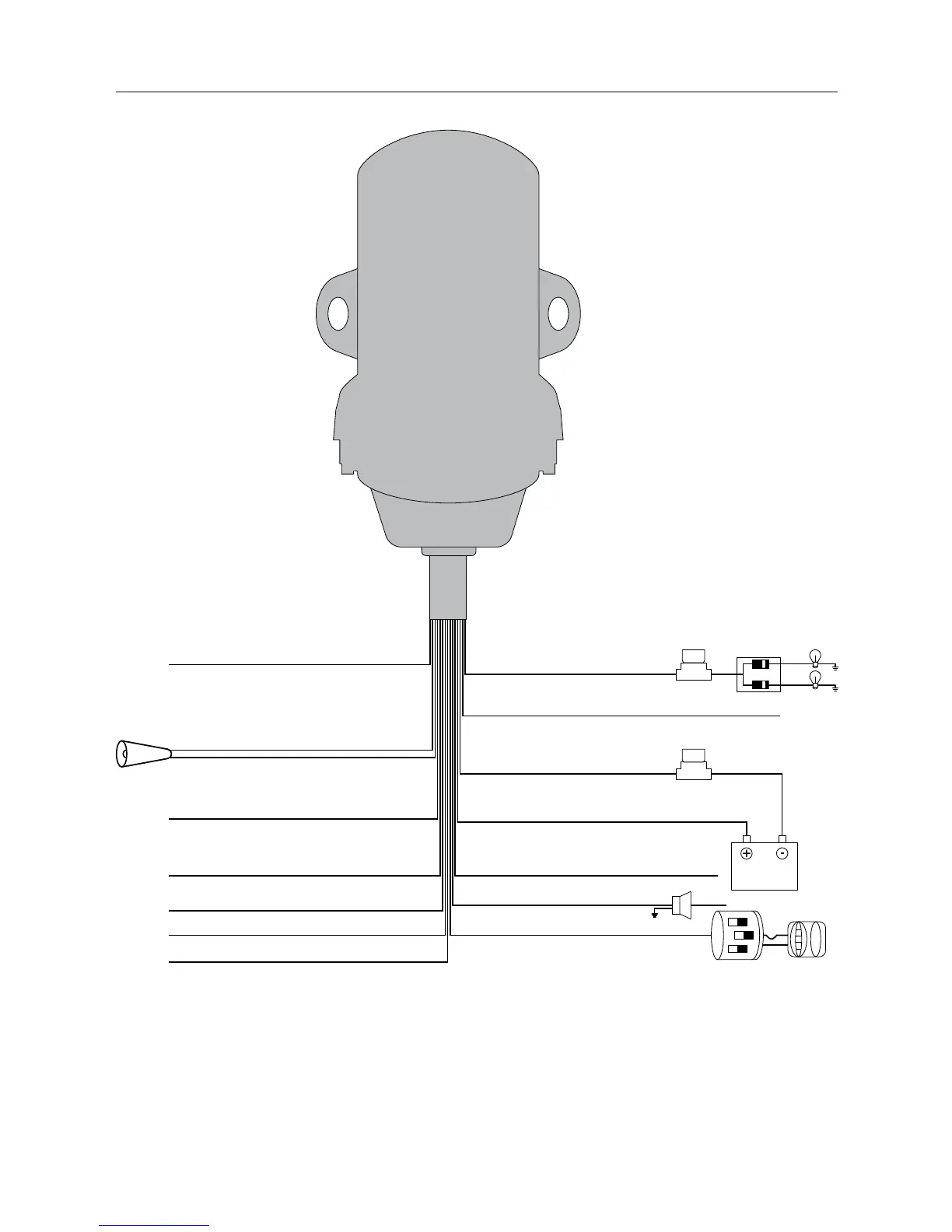

Blue (-) Trigger Input
White 18AWG Lamp Out
White/Brown Lamp In
Red 22AWG (+) 12V
Black 22AWG (-) Ground
Black/White 22AWG Ant
Brown 22AWG Siren
Yellow 22AWG (+) Ignition
Red (+) LED
Violet/White #22 Loop In
Violet/White #22 Loop Out
Red/White (-) AUX Output
Green 18AWG Cut NC
Green 18AWG Cut COM
Black (-) LED
Fuse
15A
Fuse
15A
12V
Battery
