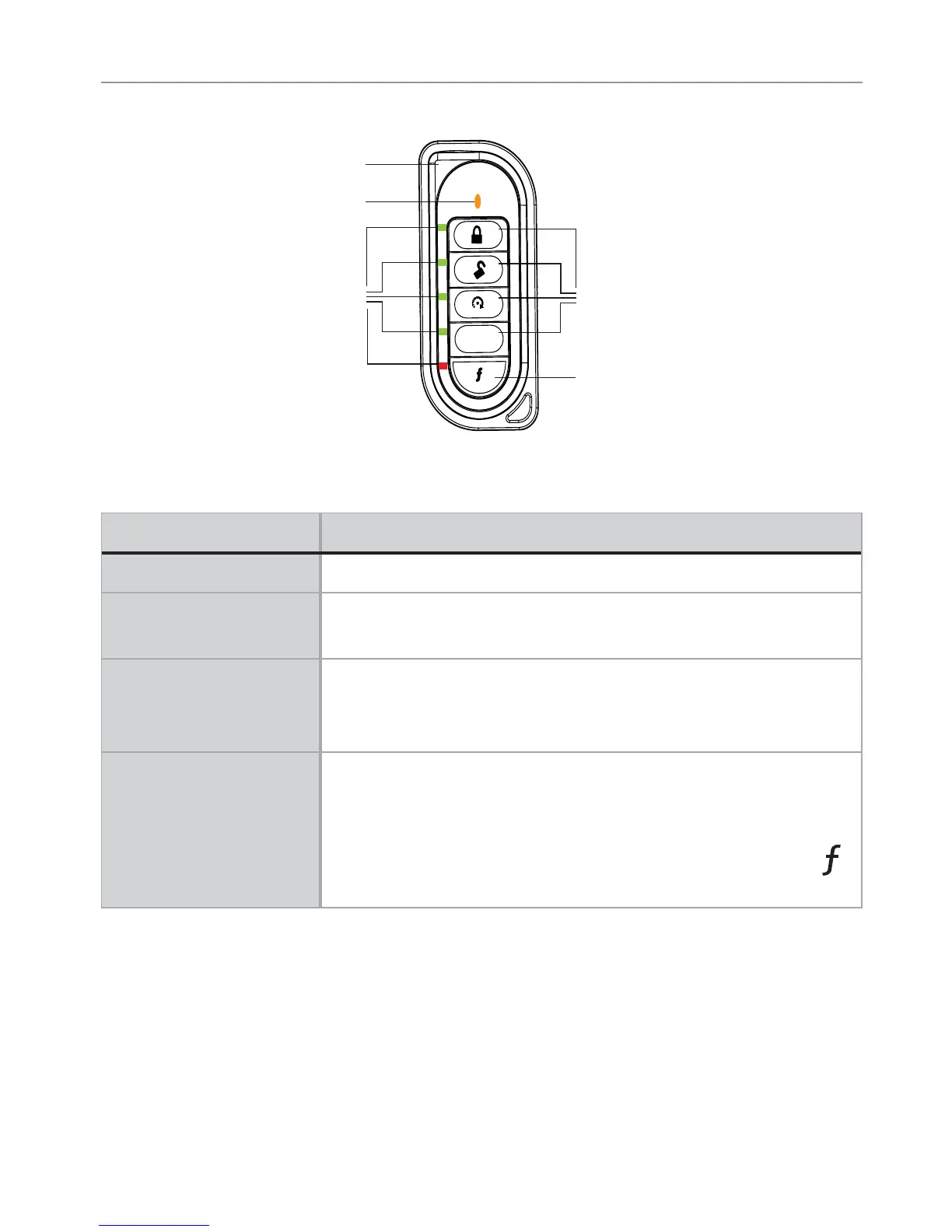

Remote Control Information
Transmit
LED
Internal
Antenna
Ghost
LED’s
Command
Buttons
Function
Button
AUX
Feature Description
Internal Antenna Used for transmitting and receiving*information
Command buttons (4) Used to perform locking, unlocking, auxiliary channel and
remote start commands
Function button Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports.
Ghost LED’s** Each button has an associated LED next to it that are active
during related operations. These LED’s are labeled respec-
tively as:
Lock LED, Unlock LED, Remote Start LED, Aux LED, and
LED
*2-way communication is only applicable to the Responder LE
remote control
** Term denotes that these LED’s are only visible when On (Ghost
LED’s are only applicable to the Responder LE remote control).
