Vision 1624R User Manual

Vision 1624R, 2525 and 2550 Series 5 Installation Guide34
© 2019 Vision Engraving & Routing Systems

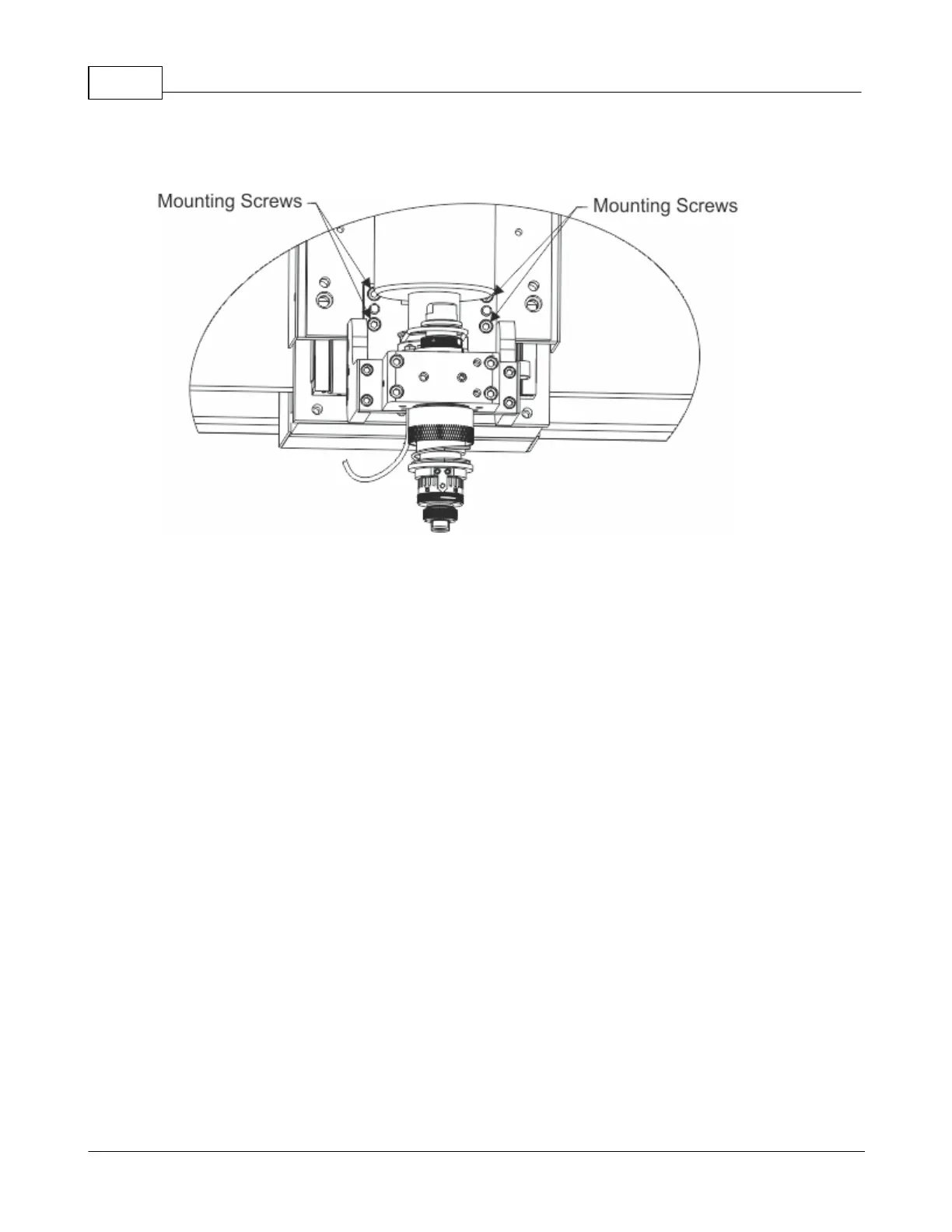

High Speed Engraving Spindle - Mounted
6. Install the Drive Belt on to the Drive Pulley, then lightly stretch it of the top of the Spindle Pulley.
NOTE: Do not excessively stretch the drive belt. The belt can be damaged by over-stretching and may
slip and not drive the spindle properly.

Vision 1624R Specifications

General

Brand	Vision
Model	1624R
Category	Engraver
Language	English
