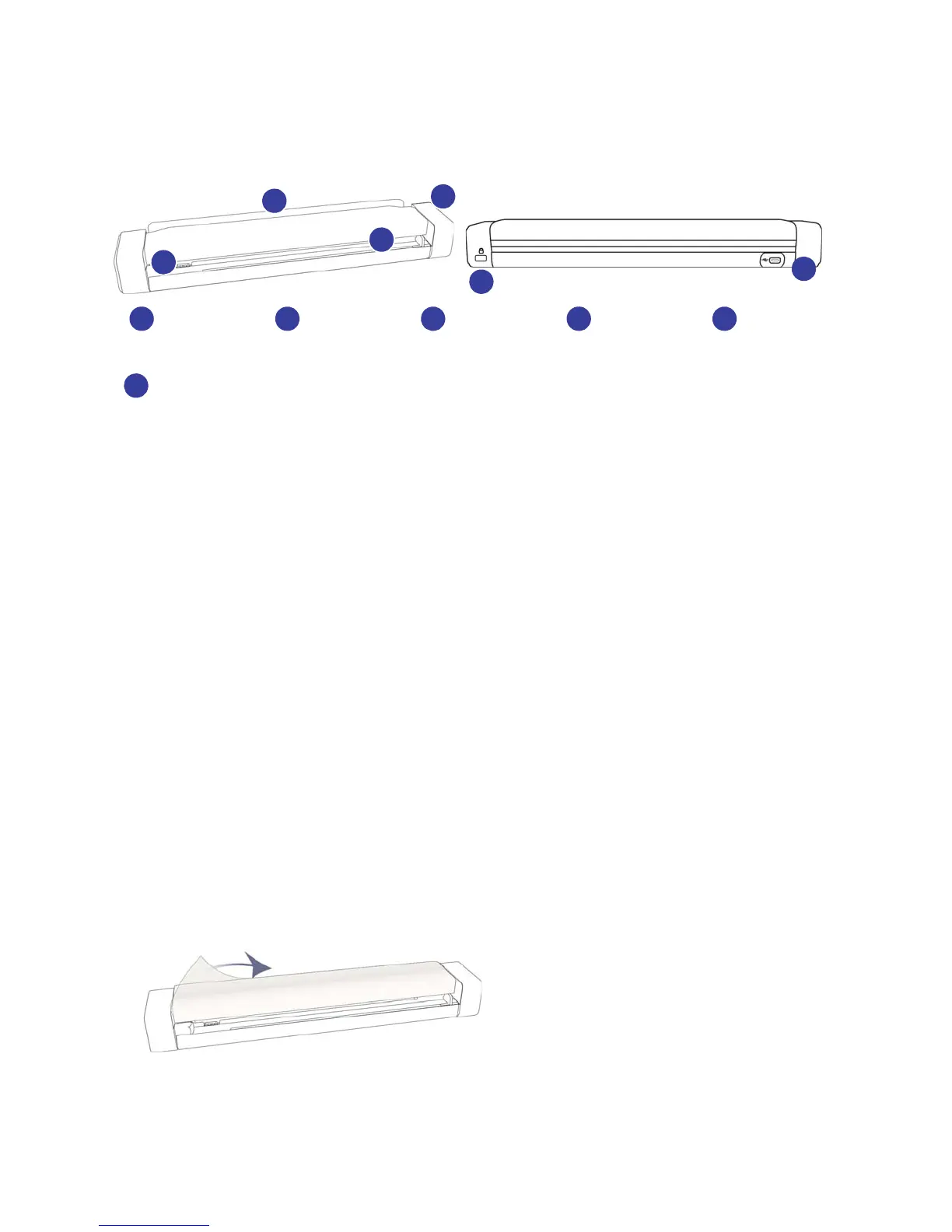

THE VISIONEER ROADWARRIOR 3 SERIES SCANNER FEATURES
Paper Feed—place an item face up in paper feed aligned to the left side.
■ Paper sensor—the optical sensor on the left side of the paper feed slot. Detects when an item has been
inserted in the scanner.
■ Scanner top—can be pulled away from the scanner body to open the scanner for cleaning.
Paper Return—guides paper up from the back of the scanner as it is exited during scanning. This feature is
available on the RoadWarrior 3 and 3g scanners only.
Paper Guide—helps to prevent documents from skewing while feeding through the scanner during scanning.
Slide the guide left or right to adjust the guide to the width of the document you want to scan.
■ Alignment strip—alignment marks for common paper sizes for the paper guide.
Scanner Button—button control for the scanner. When a scan is in progress, pressing the button will cancel the
scan. When no paper is in the scanner, long-press will open the OneTouch properties window. When
AutoLaunch™ is turned off, pressing the button will start scanning.
Universal Serial Bus (USB) port—connects the scanner to the computer.
Safety lock slot—slot for installing a Kensington® style safety lock. (RoadWarrior Lite/Pro/X3).
UNPACK THE SCANNER
1. Remove the blue plastic strip from around the scanner.
2. Remove the clear plastic film from the top of the scanner.
Paper Return
(RoadWarrior 3/3g)
Paper Feed Scanner button Safety lock slot
(RoadWarrior Lite/
Pro/X3
3 41 2 5
5
4
3
2
1
Paper Guide
6
USB port
6
