12
Note:
You must connect the OK/ERR/BZ, if using access controller to control the LED and buzzer of the
Wiegand card reader.
4.2 Installing Door Lock
4.2.1 Installation of Cathode Lock

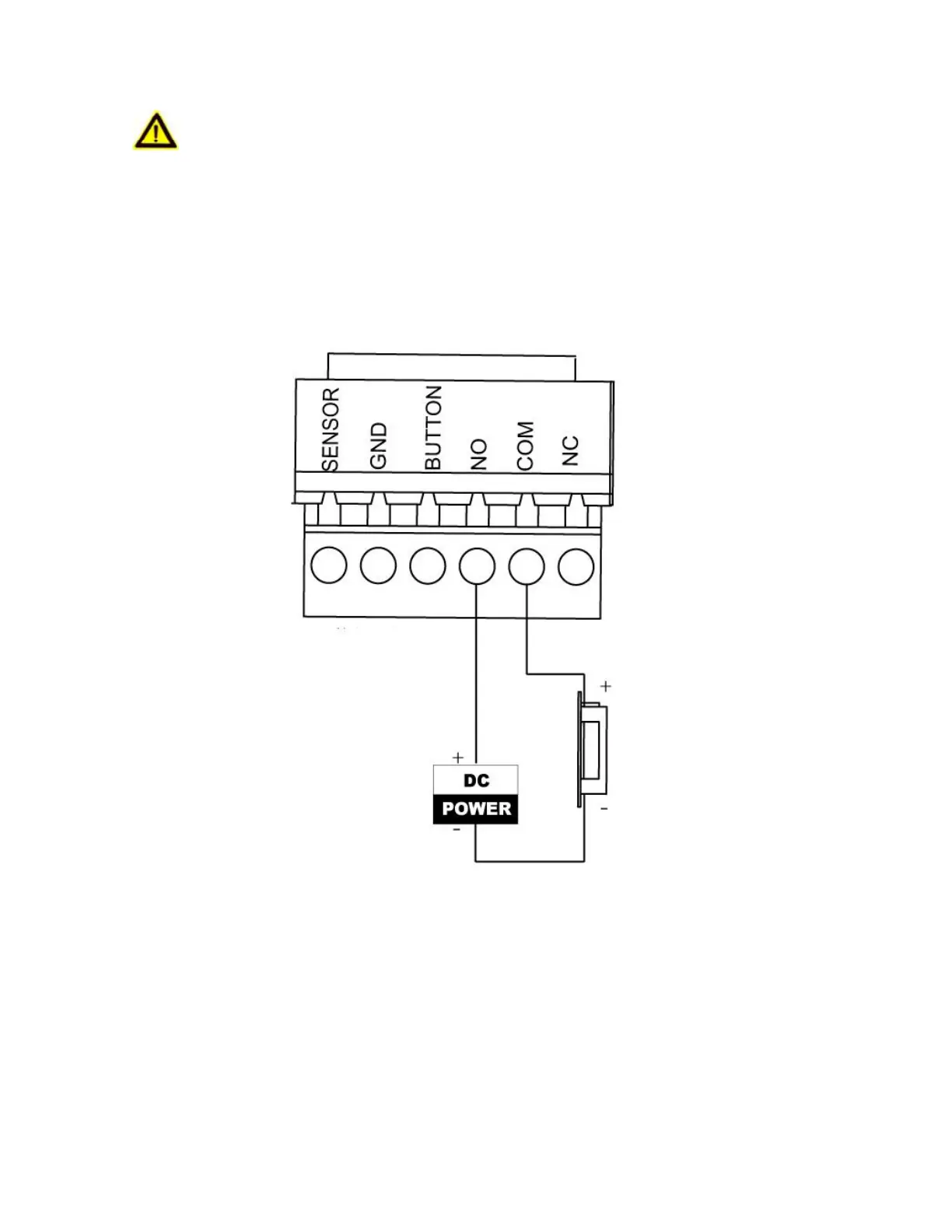

Figure 4-2 Wiring diagram of cathode lock
