Visionis VS-AXESS-2ETL - Relay Input and Output Configuration

16
Note:
The initializing of the hardware will restore all the parameters to the default setting and all the
device events are wiping out.
5.2 Relay Input NO/NC
5.2.1 Lock Relay Output

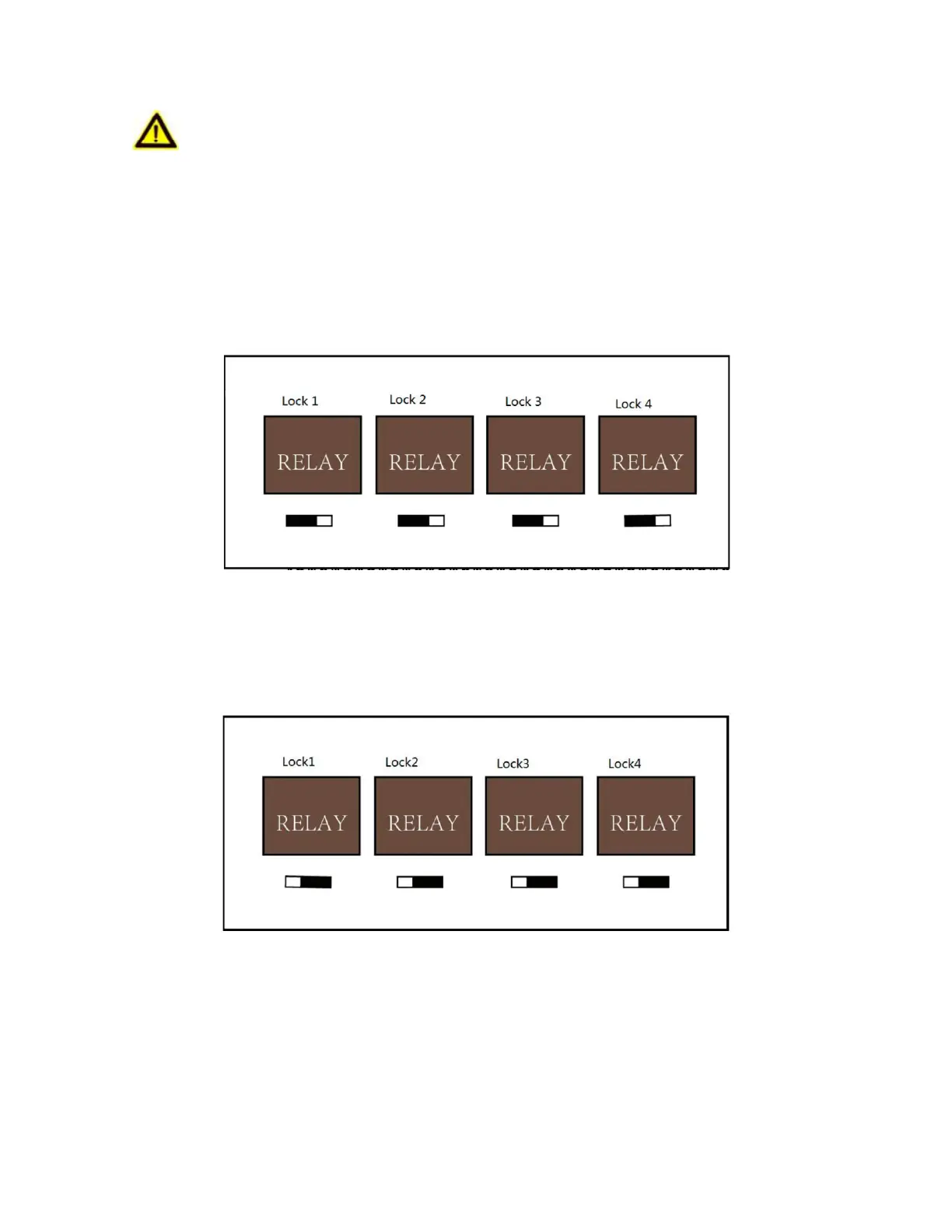

Lock Relay Normally Open Status
Figure 5-2 Normally Open Status
Lock Relay Normally Closed Status
Figure 5-3 Normally Closed Status
