PTX-PRO Specifications A-1PTX-PRO User and Technical Manual
PTX-PRO Specifications
This appendix contains specifications for your PTX-PRO Transmitter (PTX-PRO).
A.1 PTX-PRO Physical Specifications
Dimensions: 9.3” x 4.0” x 12.0”
Weight: 19.85 lbs (9.0 Kg).
Operating temperature: –20°C to +50°C
A.2 Power Connections
Check the electrical supply to be sure it can provide all the power needed at the site without
overloading. Power ratings for equipment can be found on a rating plate, usually on the rear
panel. If necessary, consult a licensed electrician.
A.2.1 Power Supply and Distribution
The PTX-PRO PWR (power) connector is located on the front panel. The mating connector that
plugs into this panel connector is as follows.
Manufacturer: ITT Cannon
Part Number: KPT06F14-12SX
Manufacturer: Amphenol
Part Number: PT06E14-12SX

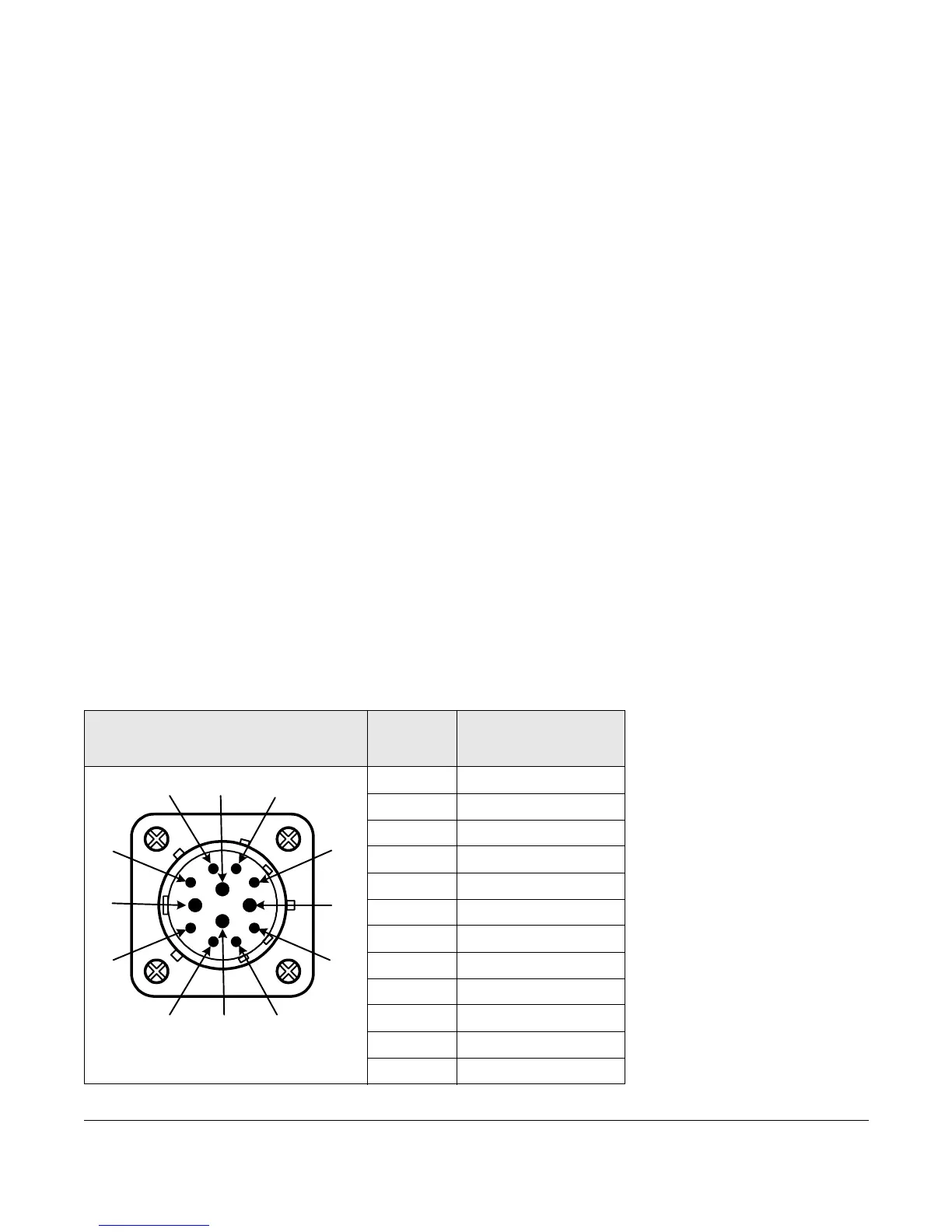

The following table shows the pin-outs on the front panel 12-pin PWR connector.
Connector Information Pin-Out
Signal
Description
A 90 to 264 VAC
BN/C
C Neutral
DN/C
EN/C
FN/C
GN/C
HN/C
J DC (+)
K DC (-)
L AC Ground / DC (-)
M DC (+)
A
B
C
D
E
F
G
H
J
K
L
M
