13

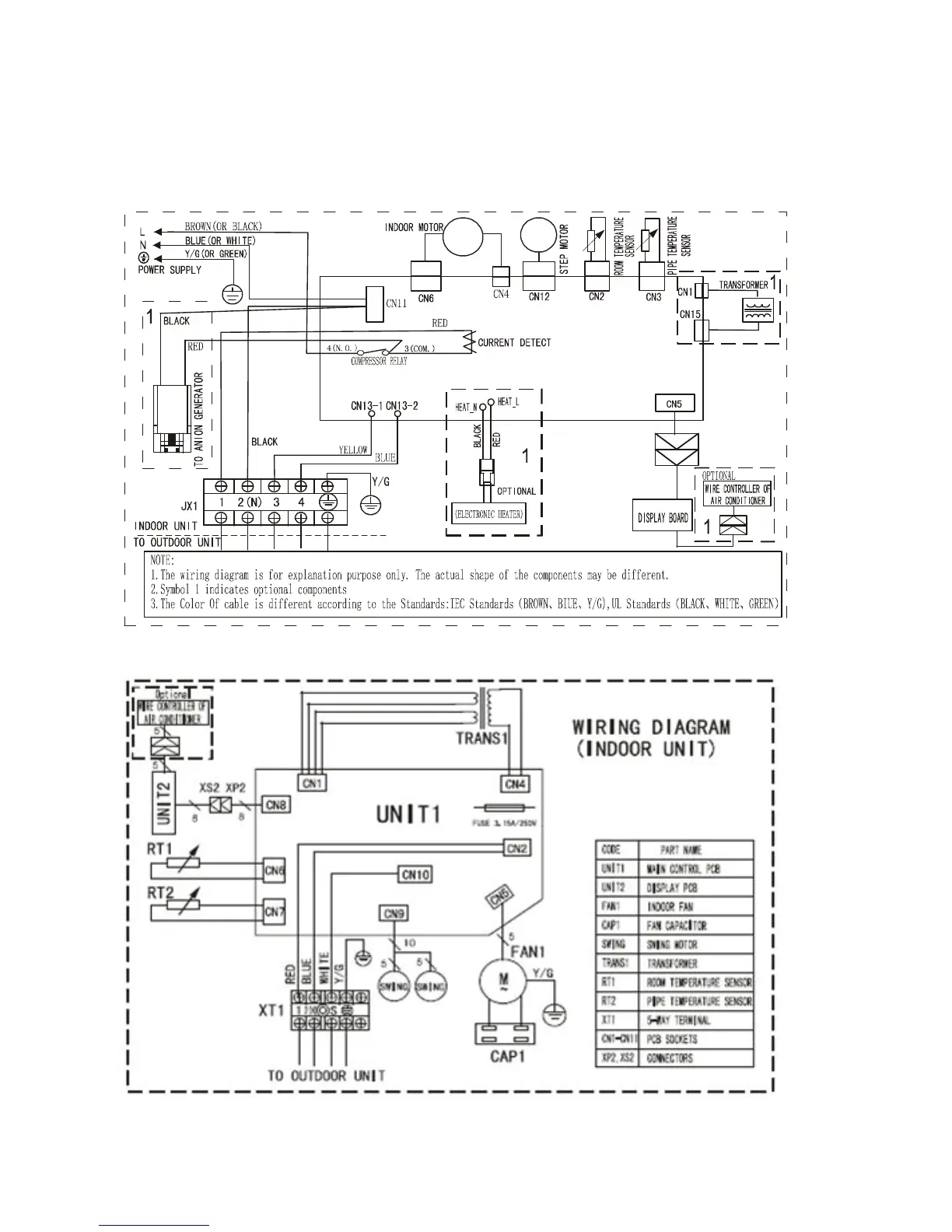

5. Wiring Diagram
5.1 Indoor Units
ACP-09CH25AEF, ACP-12CH35AEF, ACP-18CH50AEF, ACP-09CH25AEG, ACP-12CH35AEG, ACP-18CH50AEG
ACP-24CH70AEG
