Indoor unit installation
98 Installation
3.3.3 Install the pendant bolt
① Ceiling installation

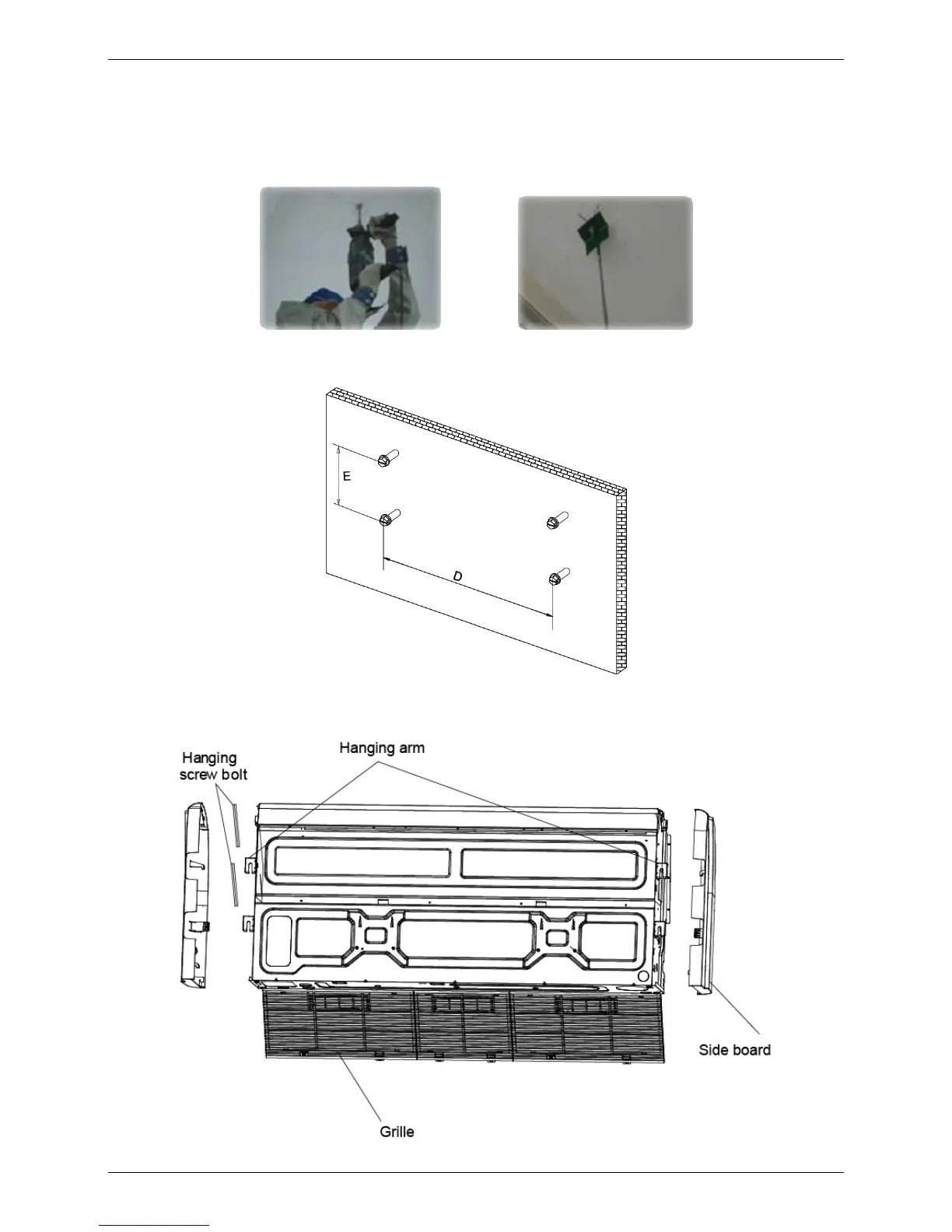

Select the position of installation hooks according to the hook holes positions showed in upper picture.
Drill four holes of Ø12mm, 45~50mm deep at the selected positions on the ceiling. Then embed the
expansible hooks (fittings).
② Wall-mounted installation
Install the tapping screws onto the wall.(Refer to picture below)
3.3.4 Install the main body
① Ceiling installation (The only installation method for the unit with drain pump)
Remove the side board and the grille.
Locate the hanging arm on the hanging screw bolt. Prepare the mounting bolts on the unit.
