Outdoor unit installation (Side Discharge Unit)
104 Installation
4. Outdoor unit installation (Side Discharge Unit)

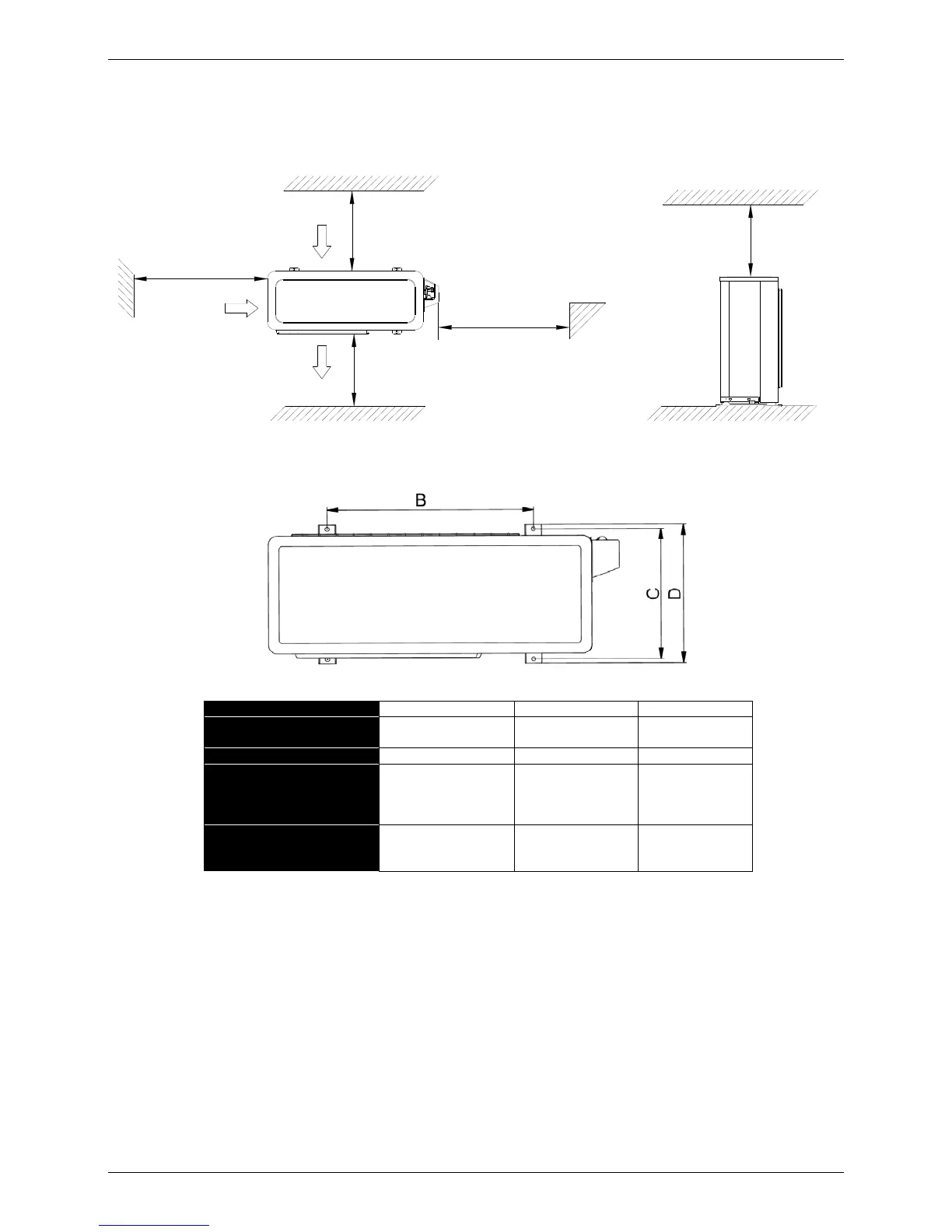

4.1 Service space for outdoor unit
More than 60cm
More than 30cm
More than 60cm
More than 200cm
Air inlet
Air inlet
More than 30cm
Air outlet
(Wall or obstacle)
Maintain channel
4.2 Bolt pitch
Model B C D
MOZU-12HFN1-QRD0W
MOZU-18HFN1-QRD0
549 325 350
MOFU-24HFN1-QRD0 560 335 360
MOYU-30HFN1-QRD0
MOYU-36HFN1-QRD0
MOYU-36HFN1-RRD0
MOYU-42HFN1-RRD0
640 405 448
MOEU-48HFN1-QRD0
MOEU-48HFN1-R
MOEU-55HFN1-RRD0RD0
634 404 448
4.3 Install the Unit
Since the gravity center of the unit is not at its physical center, so please be careful when lifting it with a sling.
Never hold the inlet of the outdoor unit to prevent it from deforming.
Do not touch the fan with hands or other objects.
Do not lean it more than 45, and do not lay it sidelong.
Make concrete foundation according to the specifications of the outdoor units.
Fasten the feet of this unit with bolts firmly to prevent it from collapsing in case of earthquake or strong wind.
