Dimensions
Indoor Units 55
2. Dimensions

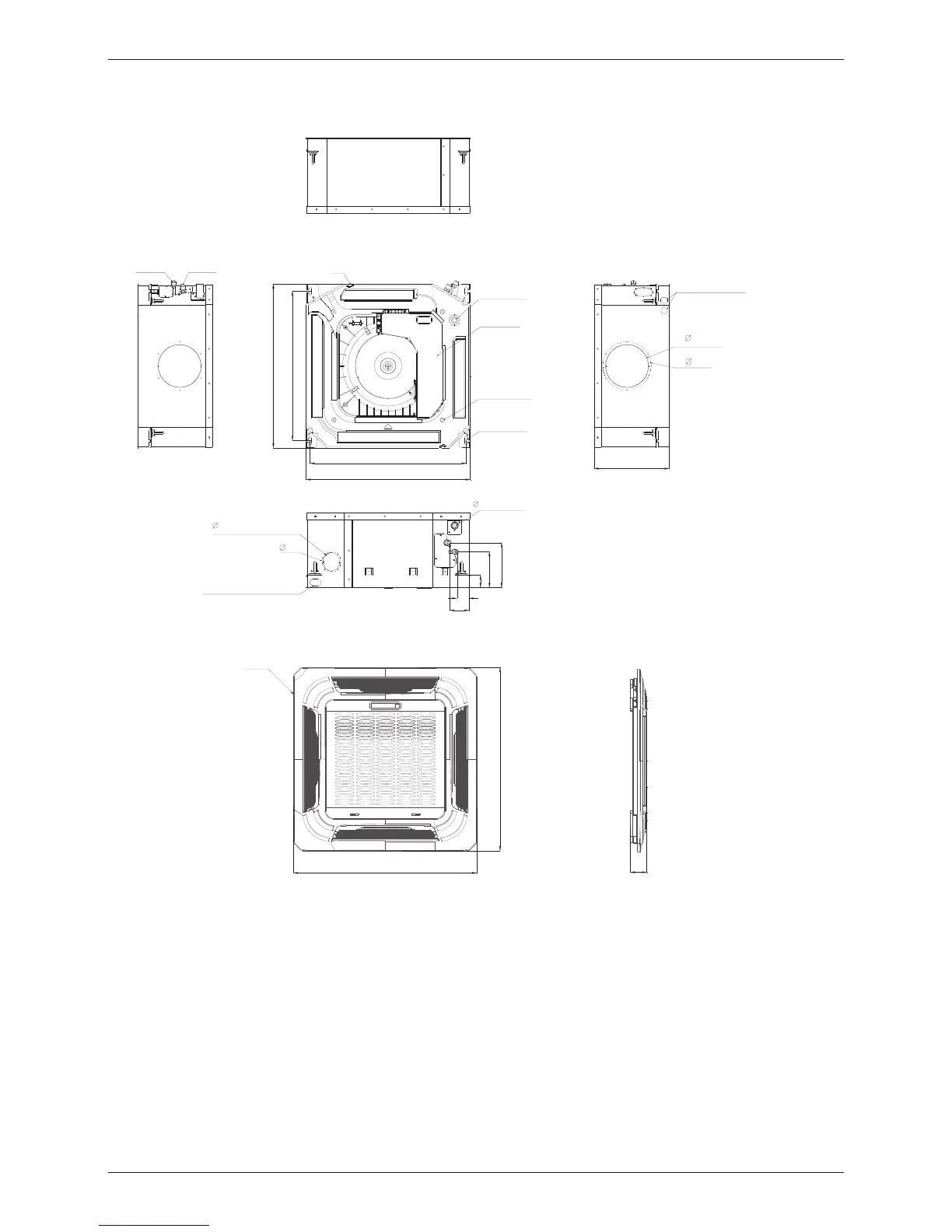

ACP-12CC35AECI , ACP-18CC50AECI
Panel
Gas side
Liquid side
4-install hanger
Body
Drain pipe32
Fresh air intake
65
647
647
50
Drain hole
( for Service )
545
570
260
68
42
157
126
44
Wiring connection port
75
150
Distribution duct
2-
E-parts box
4-Screw hole
(for install panel)
523
570
Wiring connection port
170
2-
