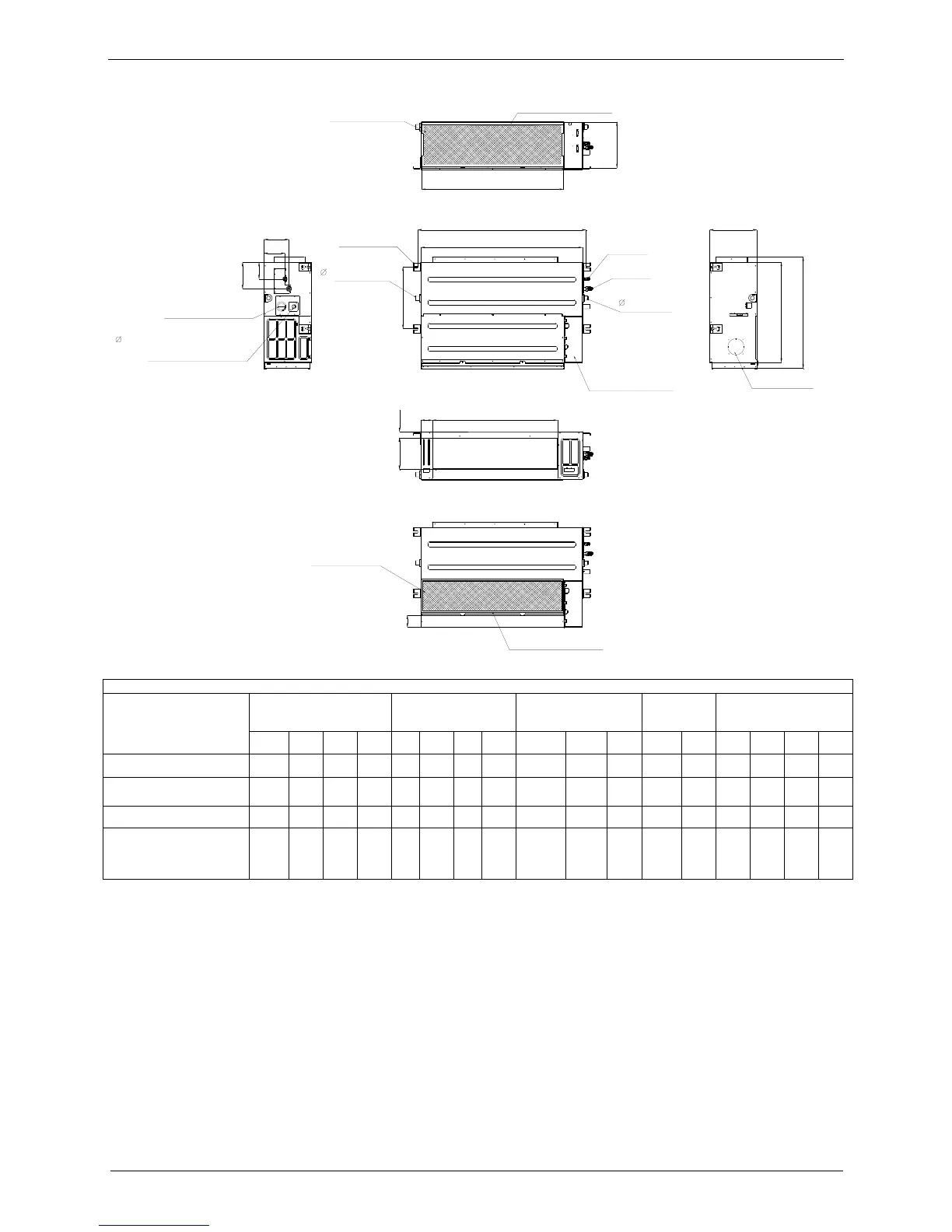

Dimensions
26 Indoor Units
2. Dimensions
A
C
B
D
J
I
K
Air filter ( optional )
air inlet from rear side
air inlet from bottom side
FE
G
H
Electric control box
Air filter ( optional )
L
4-install hanger
Gas side
Liquid side
M
W1
W2
H1
H2
25 Drain connecting pipe
( for pump )
Test mouth & Test cover
Fresh air intake
25 Drain pipe
25 Drain pipe
Note: standard product without filter Unit: mm
Model
Outline dimension(mm) Air outlet opening size Air return opening size
Size of
install
hanger
Size of refrigerant pipe
A B C D E F G H I J K L M H1 H2 W1 W2
MTBU-12HWFN1-QRD0W 700 210 635 570 65 493 35 119 595 200 80 740 350 120 143 95 150
MTB-18HWFN1-QRD0
MTB-24HWFN1-QRD0
920 270 635 570 65 713 35 179 815 260 20 960 350 120 143 95 150
MTB-30HWFN1-QRD0 1140 270 775 710 65 933 35 179 1035 260 45 1240 500 120 143 95 150
MTB-36HWFN1-QRD0
MTB-42HWFN1-QRD0
MTB-48HWFN1-QRD0
MTB-55HWFN1-QRD0
1200 300 865 800 80 968 40 204 1094 288 45 1240 500 175 198 155 210
