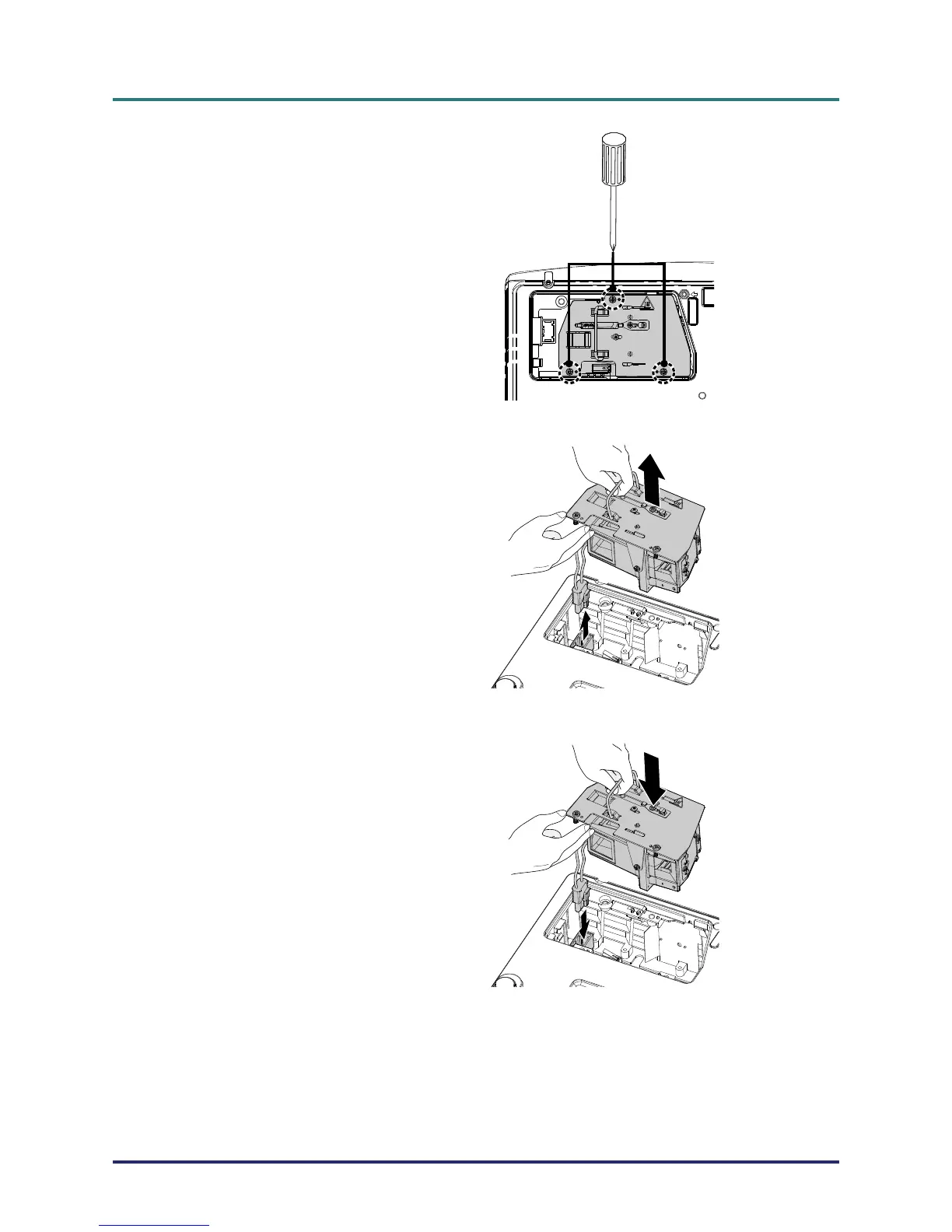

3.
Remove the threeo screws
from the lamp module.
4.
Lift the module handle up.
5.
Disconnect the lamp connec-
tor.
6.
Pull firmly on the module
handle to remove the lamp
module.
7.
Reverse steps 1 to 6 to install
the new lamp module.
While installing, align the
lamp module with the
connector and ensure it is
level to avoid damage.
Note: The lamp module
must sit securely in place and
the lamp connector must be
connected properly before
tightening the screws.
