Views of Projector Parts

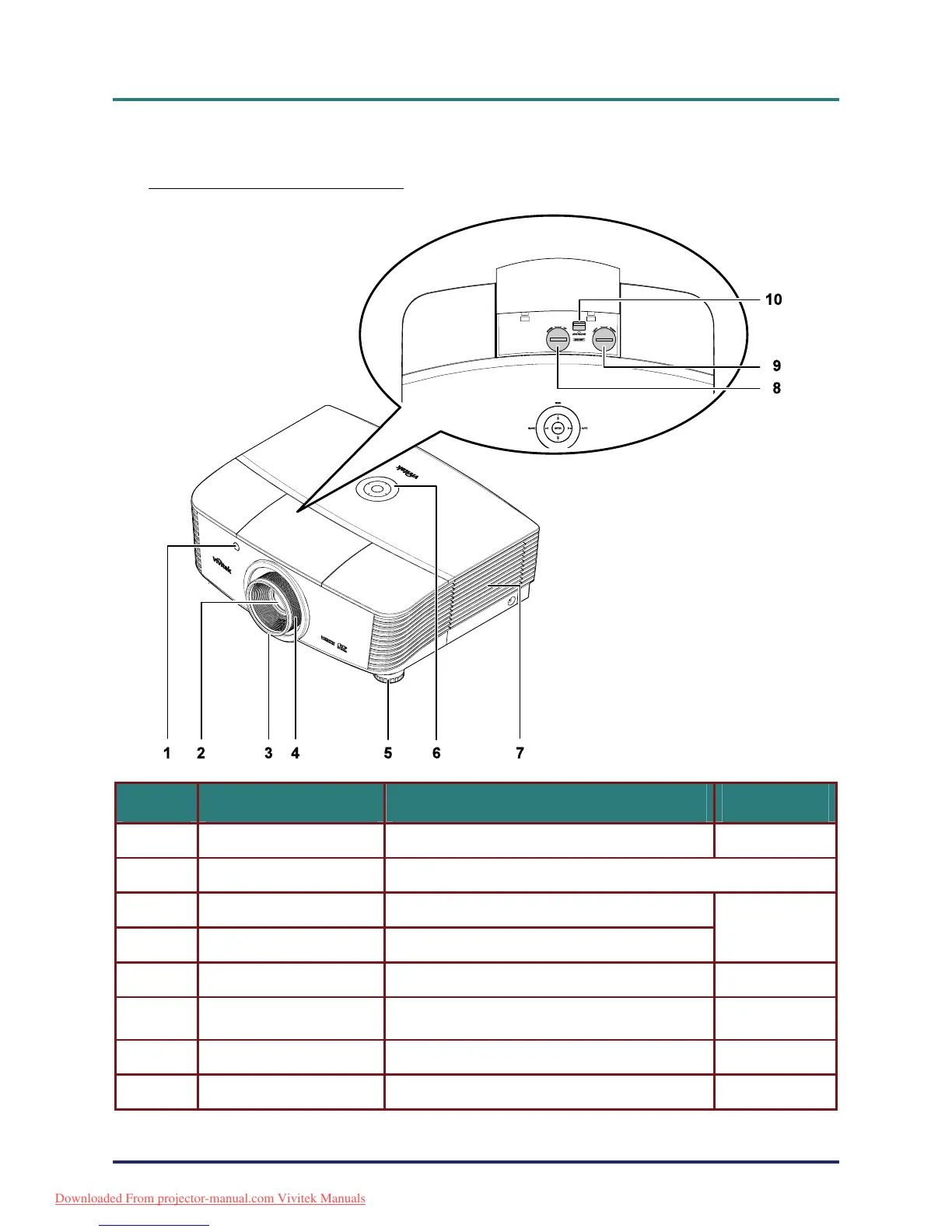

H5080 Series Front-right View
ITEM LABEL DESCRIPTION SEE PAGE:
1.
IR receiver Receives IR signal from remote control
8
2.
Lens Projection Lens
3.
Focus ring Focuses the projected image
4.
Zoom ring Enlarges the projected image
18
5.
Height adjuster Adjusts level of projector
17
6.
Function keys
See Top view—On-screen Display (OSD) buttons
and LEDs.
4
7.
Lamp cover Removes cover to replace lamp or color wheel
35
8.
Vertical lens shift Adjusts the image position vertically
18
– 2 –
