Accessories
External View
．CE, LVD, FCC, VCCI, C-Tick
．CPU: VVTK-1000 SoC
．Flash: 8MB
．RAM: 64MB
．Embedded OS: Linux 2.4
．Board lens, vari-focal, f = 3.3 ~ 12 mm,
F1.4 (wide), F2.9 (tele), auto-iris, focus range:
50 cm to infinity
．Removable IR-cut filter for day & night function
．1/5 sec. to 1/15,000 sec.
．17.9° ~ 63.6° (horizontal)
．13.5° ~ 46.5° (ve
rtical)
．1/4” CMOS sensor in VGA resolution
．0.56 Lux / F1.4
．0 Lux / F1.4 (IR LED on)
．Built-in IR illuminators, effective up to 15 meters
Specifications
Networking
Alarm and
Event Management
Security
Users
Dimension
Weight
LED Indicator
Power
Approvals
System
Lens
Shutter Time
Image Sensor
Ang
le of View
Minimum
Illumination
IR Illuminators
Video
Image Settings
Audio
．10/100 Mbps Ethernet, RJ-45
．Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/
RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS and PPPoE
．Triple-window video motion detection
．One D/I and one D/O for external sensor and alarm
．PIR (Passive Infrared Sensor) for human detection
．Event notification using HTTP, SMTP or FTP
．Local recording of MP4 file
．Multi-level user access with password protection
．IP address filtering
．HTTPS encrypted data transmission
．Live viewing for up to 10 clients
．
Ø
143 mm x 106 mm
．Net: 619 g
．System power and status indicator
．System activity and network link indicator
．12V DC
．Power consumption: Max. 11 W
．802.3af compliant Power-over-Ethernet
．Compression:
GSM-AMR speech encoding, bit rate:
4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate:
16 kbps to 128 kbps
．Interface:
Built-in microphone
External microphone input
Audio output
External/Internal microphone switch
．Supports two-way audio via SIP protocol
．Supports audio mute
．Compression: MJPEG & MPEG-4
．Streaming:
Simultaneous dual streams
MPEG-4 streaming over UDP, TCP, HTTP or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
．Supports 3GPP mobile surveillance
．Frame rates:
MPEG-4: Up to 30/25 fps at 640x480
MJPEG: Up to 30/25 fps at 640x480
．Adjustable image size, quality and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, contrast, saturation,
sharpness and white balance
．AGC, AWB, AES
．Automatic, manual or scheduled day/night mode
．Supports privacy masks
Operating
Environments
Viewing System
Requirements
Installation, Management,
and Maintenance
Applications
．Temperature: 0 ~ 50 °C (32 ~ 122 °F)
．Humidity: 20% ~ 80% RH
．OS: Microsoft Windows 2000/XP/Vista
．Browser: Mozilla Firefox, Internet Explorer
6.x or above
．Cell phone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above
．SDK available for application development
and system integration
Warranty
．24 months
．3-axis mechanism for flexible ceiling and
wall mount installation
．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade

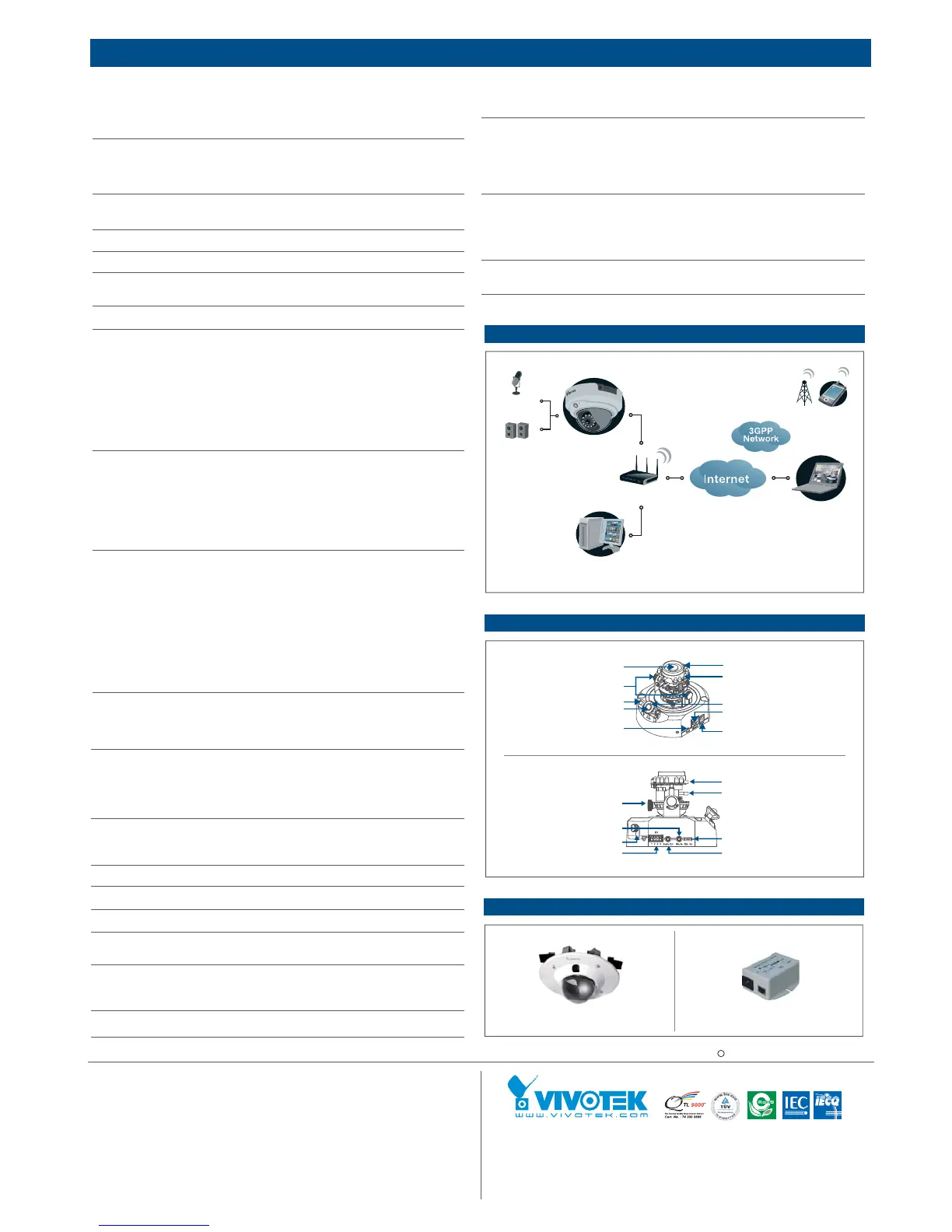

System Overview
P/N: 011001401 Ver 1.2
All specications are subject to change without notice. Copyright 2009 VIVOTEK INC. All rights reserved.
c
PC with
Recording Software
Speaker
External
Microphone
Router
Notebook with
Web Browser
3G Cell Phone
FD7132
Focus Controller
Zoom Controller
General I/O Terminal lock
Audio Out
Microphone In
External/Internal
Microphone Switch
Pan Screw
Image Adjustment Screw
Audio Out Mic. In Ext. Int.
1234
I/O
Lens
Tilt Screw
Built-in Microphone
PIR Sensor
IR LEDs
Power Cord Socket
Ethernet 10/100
RJ45 Socket
Indented Reset Button
Status LED
Light Sensor
PoE InjectorRecessed Kit
Distributed by:
6F, No.192, Lien-Cheng Rd., Chung-Ho, Taipei County, Taiwan
Tel: +886 2 8245 5282
|
Fax: +886 2 8245 5532
|
E-mail: sales@vivotek.com
VIVOTEK USA, INC.
470 Lakeside Drive Suite C, Sunnyvale, CA 94085 USA
Tel: 408-773-8686
|
Fax: 408-773-8298
|
E-mail: salesusa@vivotek.com
