VIVOTEK
14 - User's Manual
1
2
3
4
5
6
7
8
9
10
7
# Name
1 Audio_MIC_N
2 EXT_MIC_P
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+
9 12V DC-_IN
10 12V DC+_IN

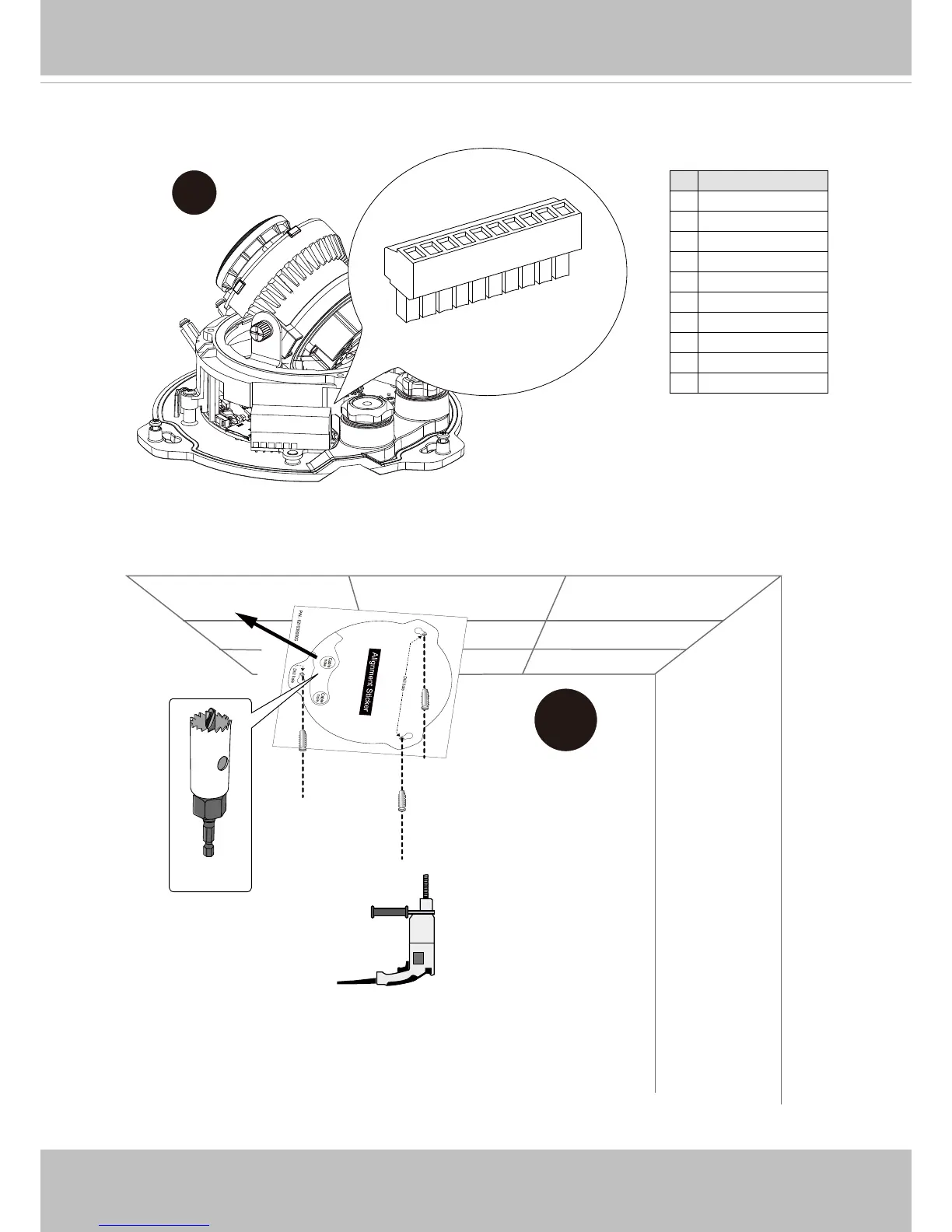

7. If preferred, connect the DI/DO wires to the terminal block.
A
8
8. Attach the alignment sticker to wall, and drill holes on it. You may drill a cabling hole for
routing the cables.
