Vivotek FD8167-T User Manual

VIVOTEK
320 - User's Manual

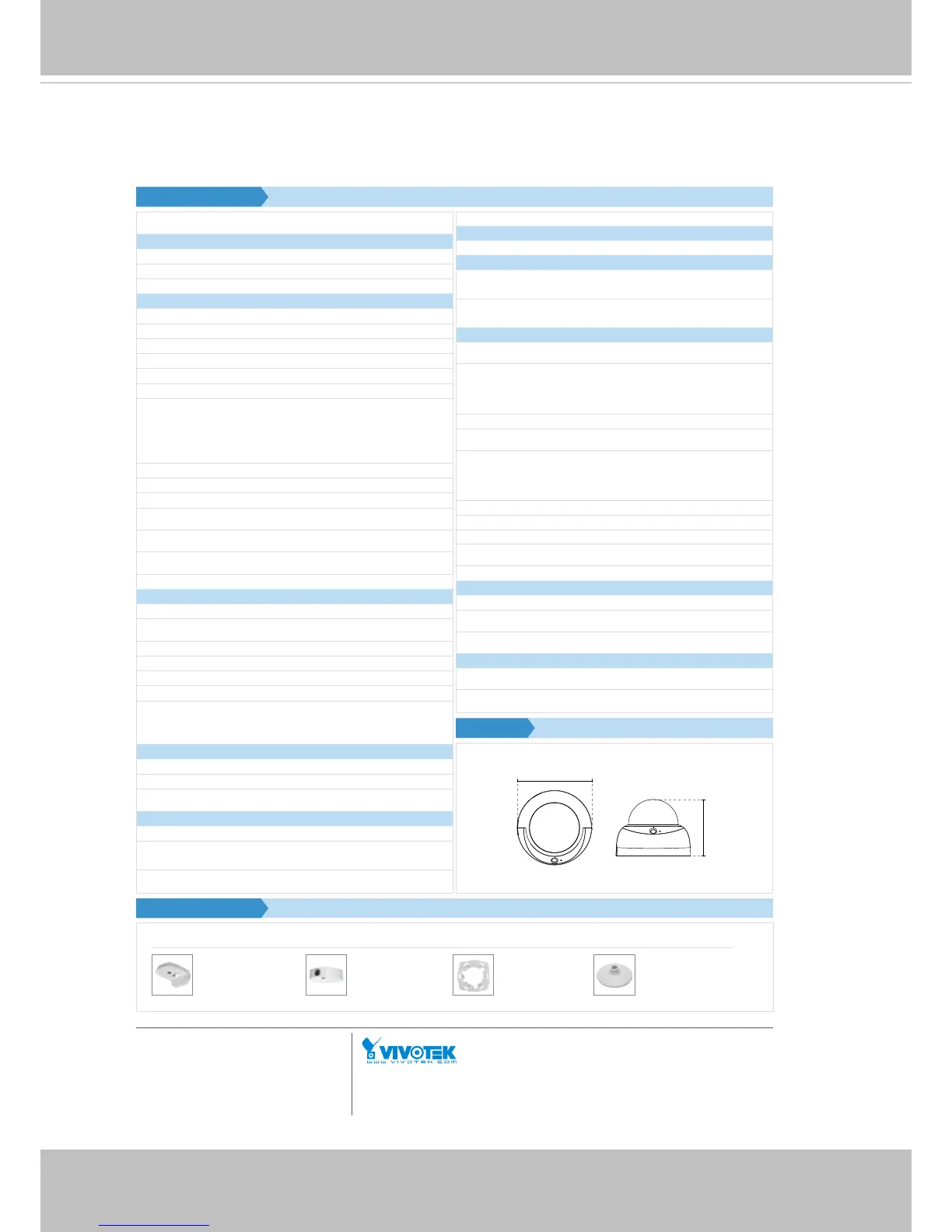

Technical Specications
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36 -5298- 434
E: saleseurope@vivotek.com
Ver. 5
Distributed by:
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reser ved.
VIVOTEK Europe
Models FD8167
FD8167-T
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 256MB
Camera Features
Image Sensor 1/2.8” Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type Vari-focal
Focal Length f = 2.8 ~ 12 mm
Aperture F1.8 ~ F2.85
Auto-iris P-Iris
Field of View FD8167
35° ~ 99° (Horizontal)
20° ~ 54° (Vertical)
41° ~ 123° (Diagonal)
FD8167-T
45° ~ 101° (Horizontal)
25° ~ 55° (Vertical)
52° ~ 125° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR Enhanced
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination 0.06 Lux @ F1.8 (Color)
0.001 Lux @ F1.8 (B/W)
Pan/tilt/zoom Functionalities ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR
IR LED*6
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264 & MJPEG
Maximum Frame Rate 30 fps @ 1920x1080
In both compression modes
Maximum Streams 3 simultaneous streams
S/N Ratio Above 62 dB
Dynamic Range 60.37 dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings Adjustable image size, quality and bit rate, Time stamp, text
overlay, flip & mirror, Configurable brightness, contrast,
saturation, sharpness, white balance, exposure control, gain,
backlight compensation, privacy masks, Scheduled profile
settings, Seamless recording, smart stream, 3D Noise Reduction
Audio
Audio Capability Audio input /output (full duplex)
Compression G.711, G.726
Interface Internal microphone input
External line output
Network
Users Live viewing for up to 10 clients
Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP
Interface 10Base-T/100 BaseTX Ethernet (RJ-45)
Technical Specifications
Compatible Accessories
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Triple-window video motion detection
Alarm and Event
Alarm Triggers Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection, audio detection
Alarm Events Event notification using digital output, HTTP, SMTP, FTP and NAS
server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System Manual focus
Remote Focus (FD8167-T)
Connectors RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input DC 12V
IEEE 802.3af PoE Class 3
Power Consumption FD8167
Max: 8.6 W (DC12V)
Max: 9.7 W (PoE)
FD8167-T
Max: 11 W (DC12V)
Max: 11.6 W (PoE)
Dimensions Ø: 135 x 102 mm
Weight Net: 512 g
Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
Warranty 36 months
System Requirements
Operating System Microsoft Windows 7/8/Vista/XP/2000
Web Browser Mozilla Firefox 7~10 (Streaming only)
Internet Explorer 7.x, 8.x, 9.x,10.x
Other Players VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others Quick installation guide, warranty card, alignment sticker/
desiccant bag, screw pack
Dimensions
Mounting Kits
AM -215
L Shape Bracket
AM -712
Conduit Box
AM-517
Adaptor Ring
AM-520
Mounting Adapter
Ø135 m m
102 mm
