VIVOTEK
6 - User's Manual

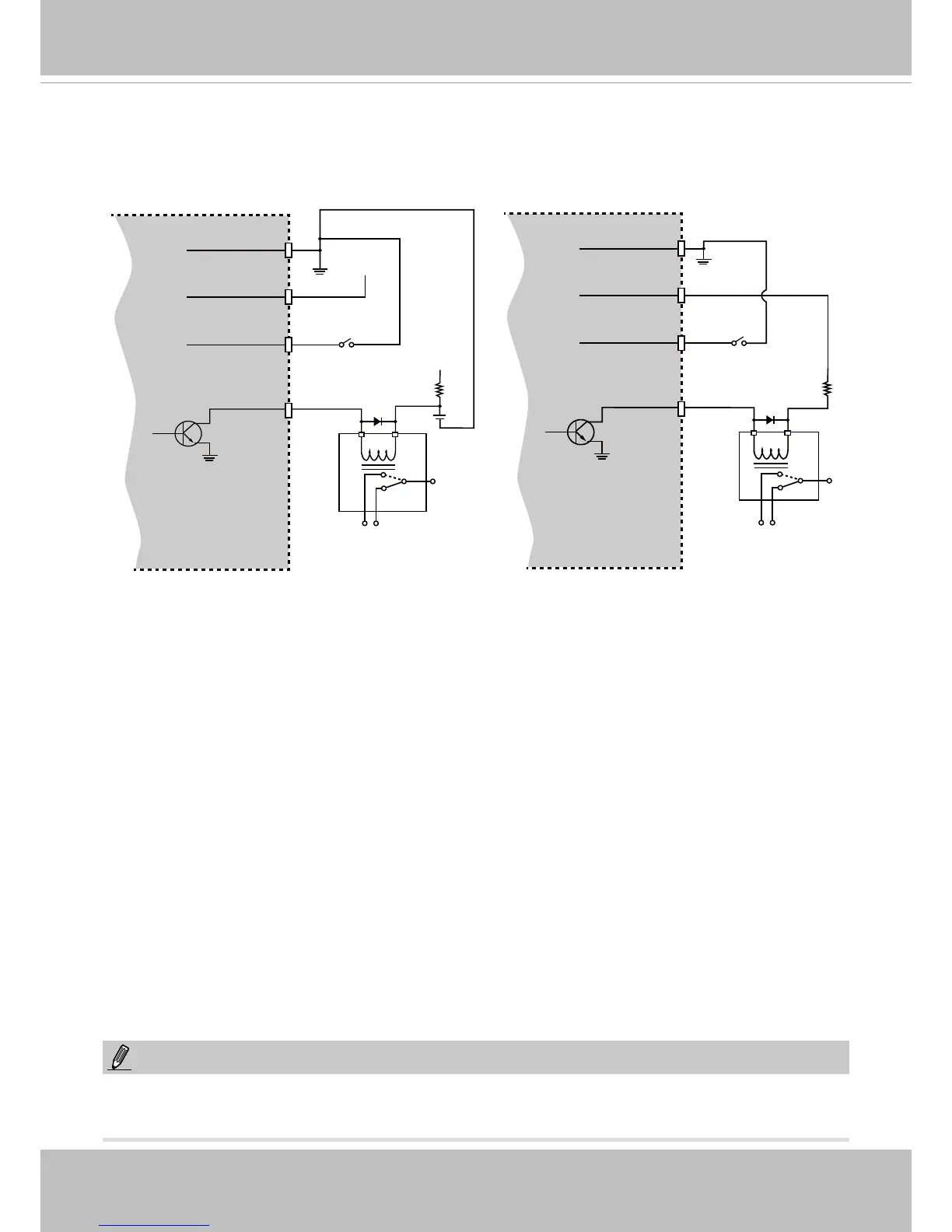

DI/DO Diagram
Please refer to the following illustration for the connection method.
GND
Camera Power
Input
Output
+12
VDC
Max.
VDC
Switch
BJT transistor
GND
Camera Power
Input
Output
+12
VDC
VDC
Switch
BJT transistor
Relay
Relay
NOTE:
The maximum output load from the Digital Output pins is 50mA.
