Vivotek FD8167 User Manual

VIVOTEK
User's Manual - 13
3
o
O
g
B
b
G
br
BR
1
2
3
4
5
6
7
8
o: white/orange stripe
O: orange solid
g: white/green stripe
B: blue solid
b: white/blue stripe
G: green solid
br: white/brown stripe
BR: brown solid
4
5
6
5~6.3mm
DI/DO: 1.8~2.1mm

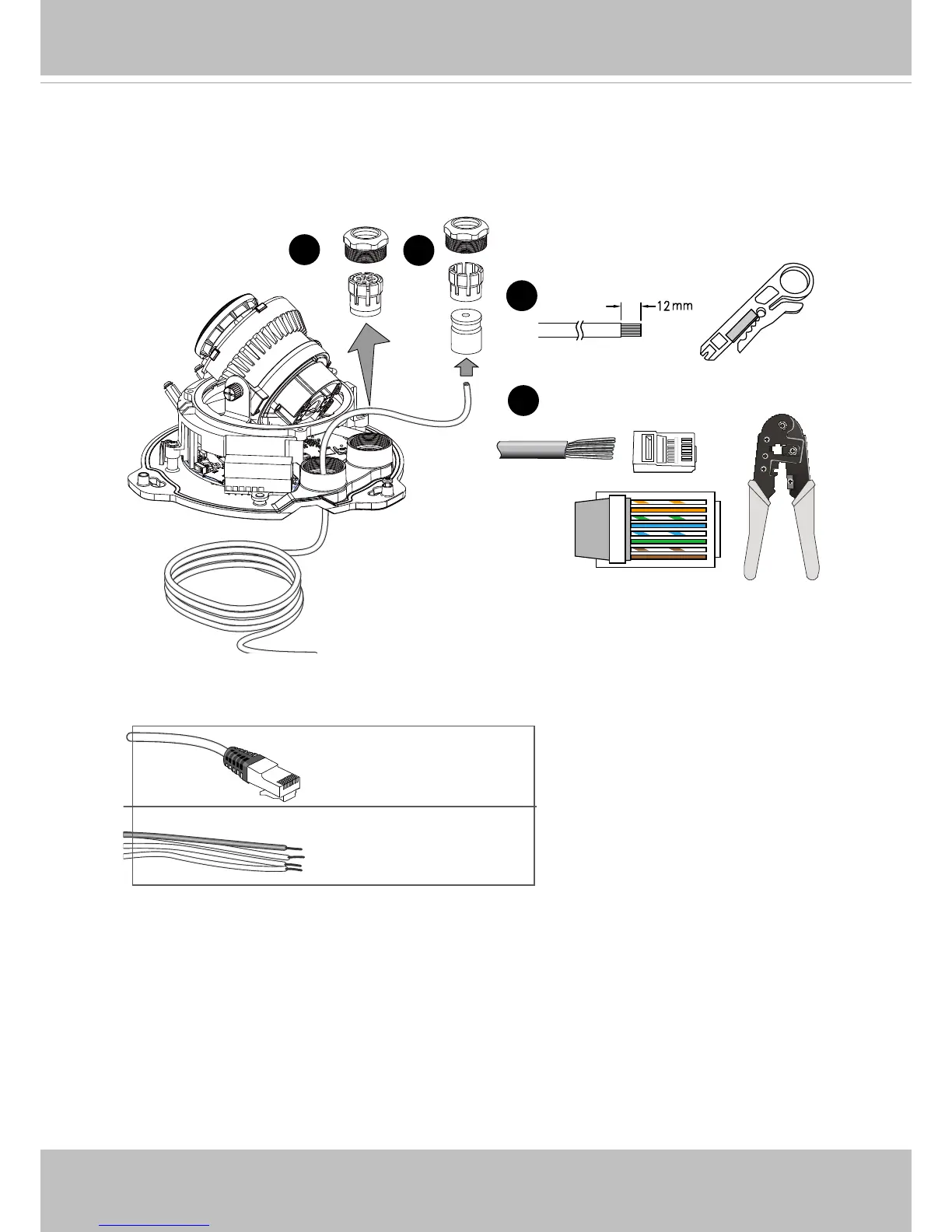

3. Remove the waterproof connectors.
4. Pass cables through the rubber seal and cable gland.
5. Strip part of the cable.
6. Use a crimping tool to attach the wires to an RJ45 connector.
The supported cable diameters are shown below.

Vivotek FD8167 Specifications

General

Brand	Vivotek
Model	FD8167
Category	Security Camera
Language	English
