Vivotek FD8169 User Manual

VIVOTEK
10 - User's Manual
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below.

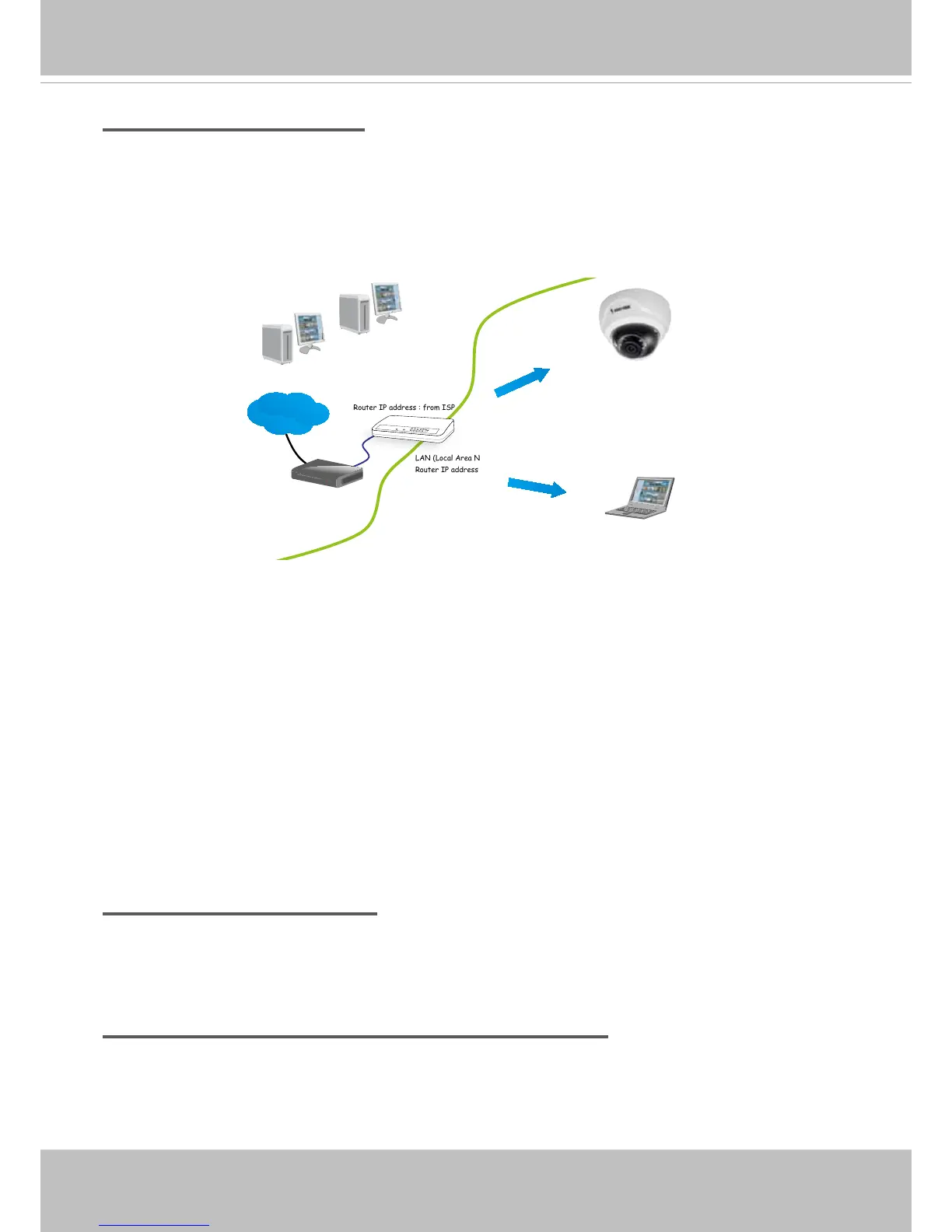

1. Connect your Network Camera behind a router, the Internet environment is illustrated below.
Regarding how to obtain your IP address, please refer to Software Installation on page 12 for
details.
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
LAN (Local Area Network)
Router IP address : 192.168.0.1
WAN (Wide Area Network )
Router IP address : from ISP
Cable or DSL Modem
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Internet
2. In this case, if the Local Area Network (LAN) IP address of your Network Camera is
192.168.0.3, please forward the following ports for the Network Camera on the router.
■ HTTP port: default is 80
■ RTSP port: default is 554
■ RTP port for video: default is 5556
■ RTCP port for video: default is 5557
If you have changed the port numbers on the Network page, please open the ports
accordingly on your router. For information on how to forward ports on the router, please refer
to your router’s user’s manual.
3. Find out the public IP address of your router provided by your ISP (Internet Service Provider).
Use the public IP and the secondary HTTP port to access the Network Camera from the
Internet. Please refer to Network Type on page 60 for details.
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN setting on page 59 for details.
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line. Please refer to
PPPoE on page 60 for details.

Vivotek FD8169 Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	CE C-Tick FCC ( Class B ) LVD VCCI
Placement supported	Indoor
Connectivity technology	Wired
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
Signal-to-Noise Ratio (SNR)	53 dB
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, MPEG
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
DC output voltage	12
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	7.5 W
Pan range	0 - 348 °
Tilt angle range	0 - 70 °
Angle of rotation	345 °
Minimum illumination	0 lx
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Sensor type	CMOS
Optical sensor size	1/2.7 \
Digital zoom	48 x
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
LED type	IR
Night vision distance	15 m
Number of illumination LEDs	6

Weight and Dimensions

Length	98 mm
Weight	435 g
Diameter	128 mm
