User's Manual - 9
Network Deployment

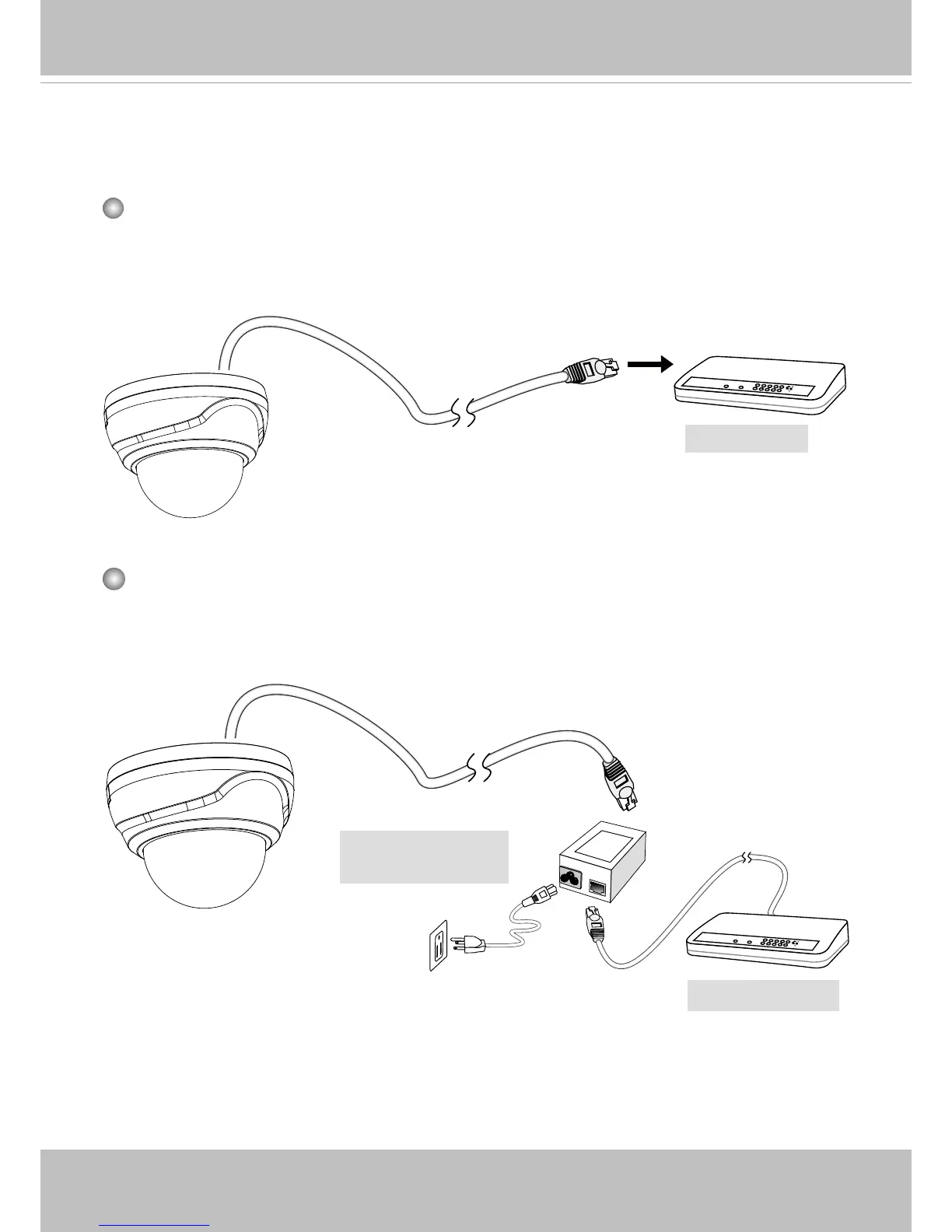

General Connection (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, allowing transmission of power and data via a sin-
gle Ethernet cable. Follow the below illustration to connect the Network Camera to a PoE-
enabled switch via Ethernet cable.
POW
ER
C
OLL
I
S
ION
LINK
RECEIVE
PARTITIO
N
1
2
3
4
5
PoE Switch
When using a non-PoE switch
Use a PoE power injector (optional) to connect between the Network Camera and a non-
PoE switch.
POW
ER
C
O
LL
I
S
ION
L
I
N
K
RE
CEIVE
PARTITIO
N
1
2
3
4
5
Non-PoE Switch
PoE Power Injector
(optional)

Vivotek FD8169 Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	CE C-Tick FCC ( Class B ) LVD VCCI
Placement supported	Indoor
Connectivity technology	Wired
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
Signal-to-Noise Ratio (SNR)	53 dB
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, MPEG
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
DC output voltage	12
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	7.5 W
Pan range	0 - 348 °
Tilt angle range	0 - 70 °
Angle of rotation	345 °
Minimum illumination	0 lx
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Sensor type	CMOS
Optical sensor size	1/2.7 \
Digital zoom	48 x
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
LED type	IR
Night vision distance	15 m
Number of illumination LEDs	6

Weight and Dimensions

Length	98 mm
Weight	435 g
Diameter	128 mm
