Vivotek FD8169 User Manual

VIVOTEK
8 - User's Manual
Hardware Reset
The reset button is used to reset the system or restore the factory default settings. Sometimes
resetting the system can return the camera to normal operation. If the system problems remain
after reset, restore the factory settings and install again.
Reset: Press the recessed reset button. Wait for the Network Camera to reboot.
Restore: Press and hold the reset button until the status LED rapidly blinks. Note that all settings
will be restored to factory default. Upon successful restore, the status LED will blink green and
red during normal operation.
Micro SD/SDHC Card Capacity
This network camera is compliant with Micro SD/SDHC 16GB / 8GB / 32GB / 64GB and other
preceding standard SD cards.

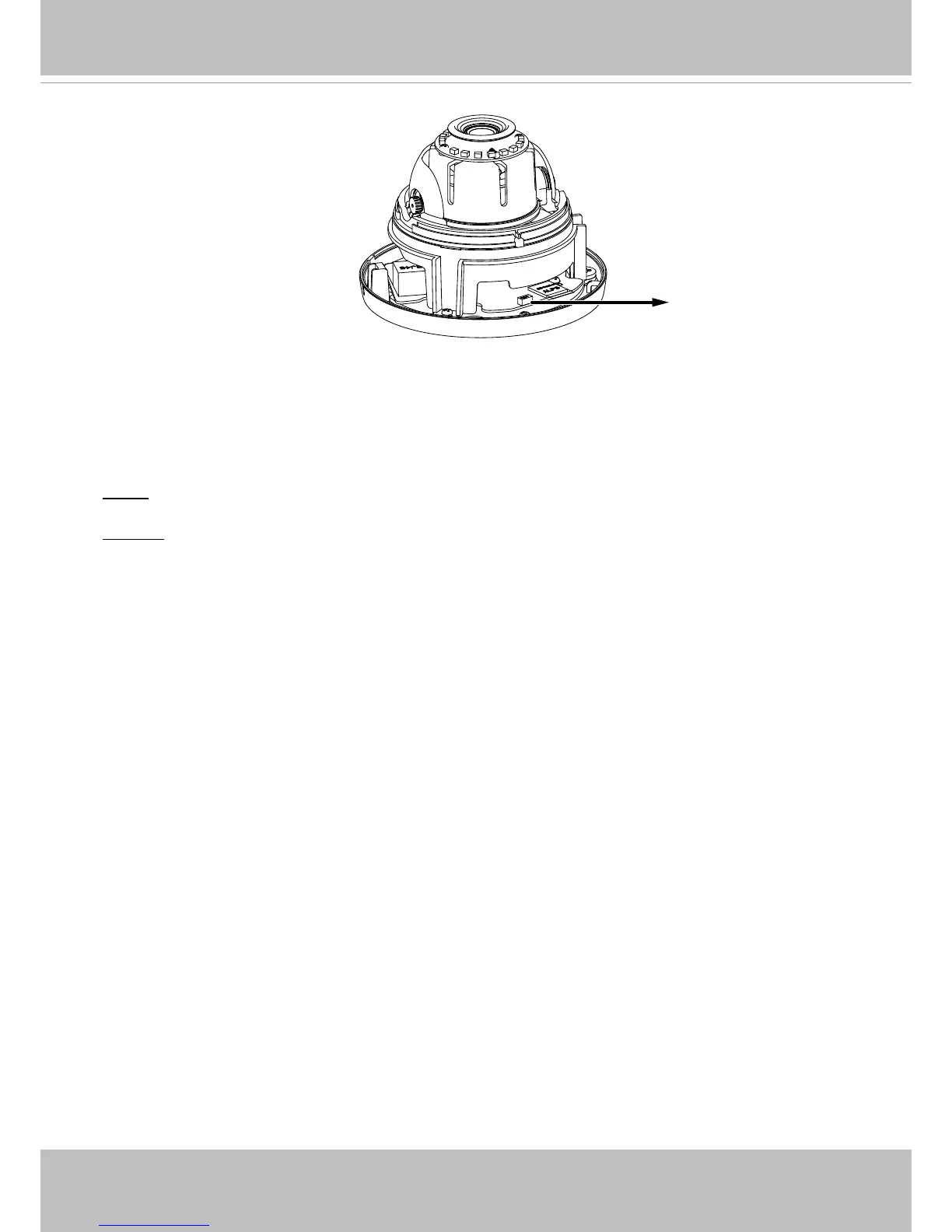

Reset Button

Vivotek FD8169 Specifications

General

Type	IP security camera
PTZ control	Yes
Certification	CE C-Tick FCC ( Class B ) LVD VCCI
Placement supported	Indoor
Connectivity technology	Wired
Wi-Fi	No
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3af
Supported network protocols	IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP
Ethernet LAN (RJ-45) ports	1
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
Signal-to-Noise Ratio (SNR)	53 dB
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, MPEG
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
DC output voltage	12
Power source type	PoE
Power consumption (Power over Ethernet (PoE))	7.5 W
Pan range	0 - 348 °
Tilt angle range	0 - 70 °
Angle of rotation	345 °
Minimum illumination	0 lx
Storage temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-10 - 50 °C
Sensor type	CMOS
Optical sensor size	1/2.7 \
Digital zoom	48 x
Flash memory	128 MB
Internal memory	256 MB
Compatible memory cards	MicroSD (TransFlash), SDHC, SDXC
LED type	IR
Night vision distance	15 m
Number of illumination LEDs	6

Weight and Dimensions

Length	98 mm
Weight	435 g
Diameter	128 mm
