VIVOTEK
User's Manual - 5

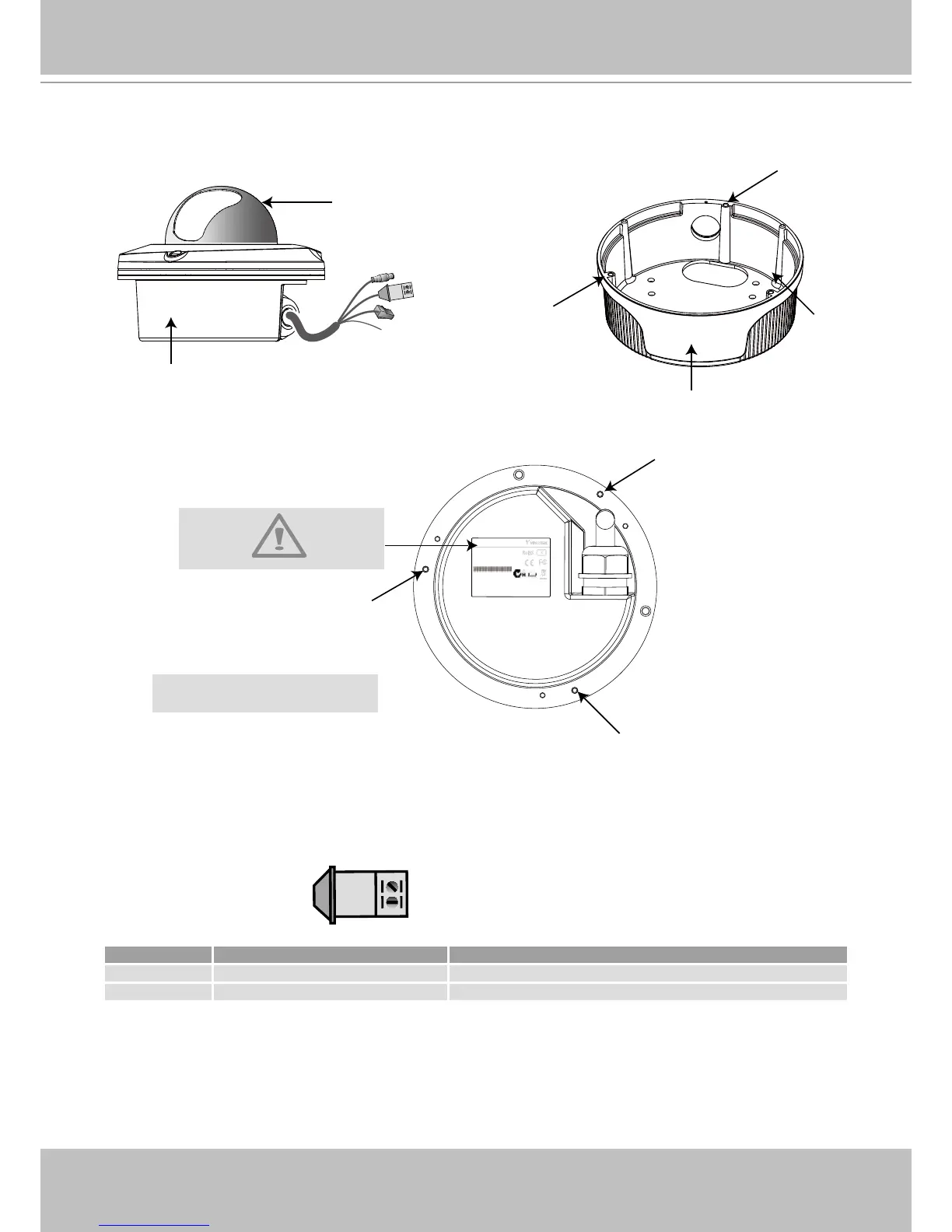

Outer View
General I/O Terminal Block
This Network Camera provides a general I/O terminal block which is used to connect external
input / output devices. The pin denitions are described below.
Network Camera
Model No: FD8361
Made in Taiwan
This device complies with part 15 of the FCC rules. Operation is subject to
the following two conditions:
(1)This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Pat. 6,930,709
RoHS
V I
MAC:0002D1083236
CLASS A
IP66-rated Vandal-proof
Dome Cover
AC24V
AC24V
Camera Base
a
b
c
Hole a~c:
Holes to secure the bottom base�
IP66-rated Vandal-proof
Bottom Base
a
b
c
AC24V
AC24V
AC24V: Power in AC 24V
AC24V: Power in AC 24V
Pin Name Specification
AC24V Power in AC 24V AC 24V ± 5%
AC24V Power in AC 24V AC 24V ± 5%
Record the MAC address
under the camera base before
installing the camera�
To Next Page
