Vivotek FD836B-(E)HVF2 User Manual

VIVOTEK
312 - User's Manual

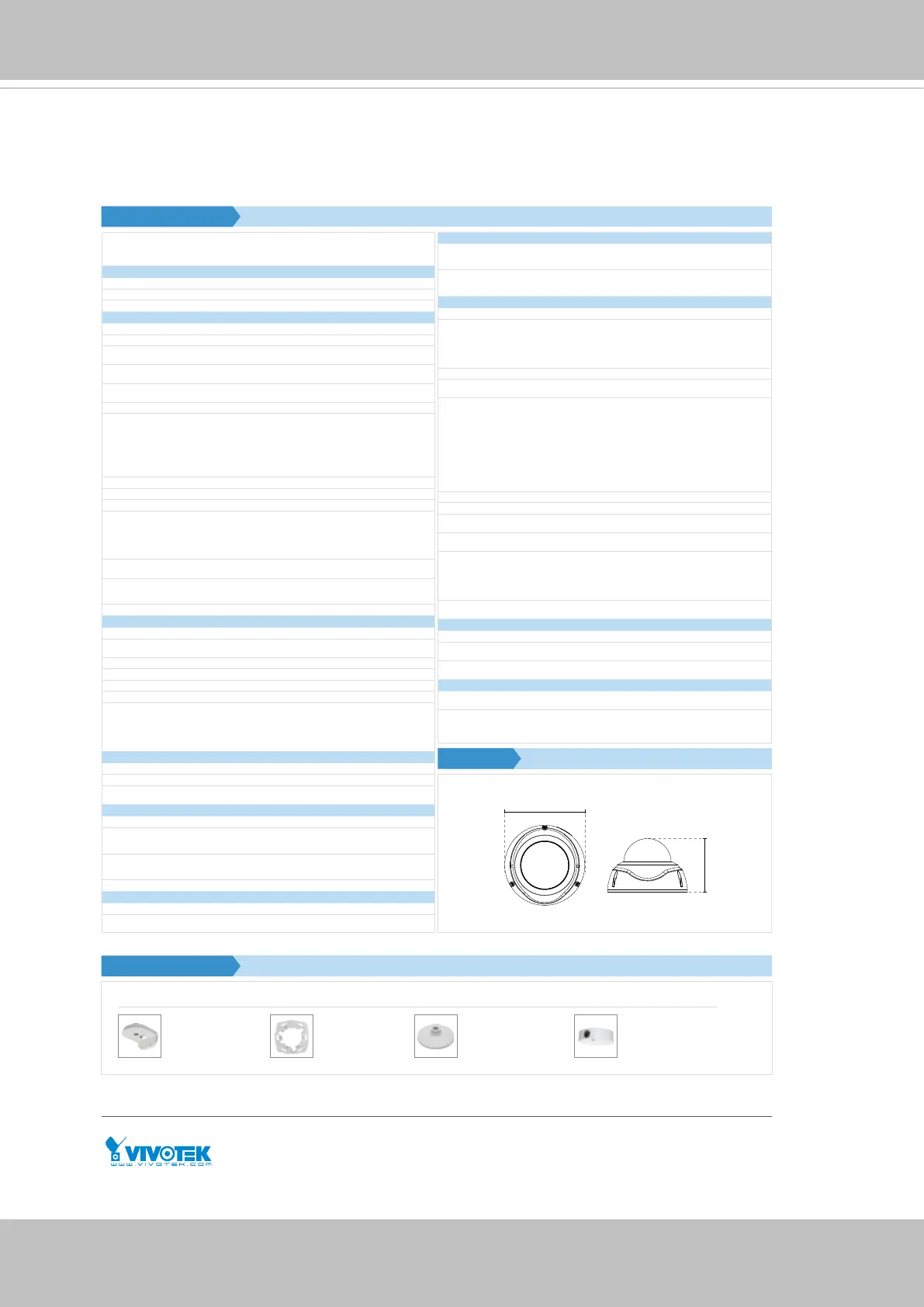

Technical Specications
Model
FD836B-HTV: Vari-focal, P-iris, Remote Focus
FD836B-EHTV: Vari-focal, P-iris, Remote Focus, Extreme Weather
FD836B-HVF2: Fixed-focal
FD836B-EHVF2: Fixed-focal, Extreme Weather
System Information
CPU Multimedia SoC (System-on-Chip)
Flash 1Gb
RAM 2Gb
Camera Features
Image Sensor 1/2.8" Progressive CMOS
Maximum Resolution 1920x1080 (2MP)
Lens Type
FD836B-HTV/FD836B-EHTV: Vari-focal
FD836B-HVF2/FD836B-EHVF2: Fixed-focal
Focal Length
FD836B-HTV/FD836B-EHTV: f = 2.8 ~ 12 mm
FD836B-HVF2/FD836B-EHVF2: f = 2.8 mm
Aperture
FD836B-HTV/FD836B-EHTV: F1.8 ~ F2.85
FD836B-HVF2/FD836B-EHVF2: F2.1
Auto-iris P-iris (FD836B-HTV/FD836B-EHTV)
Field of View
FD836B-HTV/FD836B-EHTV:
42° ~ 104° (Horizontal)
24° ~ 71° (Vertical)
49° ~ 111° (Diagonal)
FD836B-HVF2/FD836B-EHVF2:
83° (Horizontal)
53° (Vertical)
91° (Diagonal)
Shutter Time 1/5 sec. to 1/32,000 sec.
WDR Technology WDR
Day/Night Removable IR-cut filter for day & night function
Minimum Illumination
FD836B-HTV/FD836B-EHTV:
0.03 Lux @ F1.8 (Color)
0.001 Lux @ F1.8 (B/W)
FD836B-HVF2/FD836B-EHVF2:
0.06 Lux @ F2.1 (Color)
0.001 Lux @ F2.1 (B/W)
Pan/tilt/zoom
Functionalities
ePTZ:
48x digital zoom (4x on IE plug-in, 12x built in)
IR Illuminators
Built-in IR illuminators, effective up to 30 meters
with Smart IR
IR LED*8
On-board Storage MicroSD/SDHC/SDXC card slot
Video
Compression H.264 & MJPEG
Maximum Frame Rate
30 fps @ 1920x1080
In both compression modes
Maximum Streams 4 simultaneous streams
S/N Ratio 58dB
Dynamic Range 100dB
Video Streaming Adjustable resolution, quality and bitrate
Image Settings
Adjustable image size, quality and bit rate, Time stamp, text
overlay, flip & mirror, Configurable brightness, contrast,
saturation, sharpness, white balance, exposure control, gain,
backlight compensation, privacy masks,Scheduled profile
settings, Seamless recording, smart stream, 3D Noise Reduction,
Video Rotation, Defog
Audio
Audio Capability Two-way Audio (full duplex)
Compression G.711, G.726
Interface
External microphone input
External line output
Network
Users Live viewing for up to 10 clients
Protocols
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP,
SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP,
802.1X, UDP, ICMP, ARP, SSL, TLS
Interface
10 Base-T/100 BaseTX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables
which are compliant with the 3P/ETL standard.
ONVIF Supported, specification available at www.onvif.org
Intelligent Video
Video Motion Detection Five-window video motion detection
VC A* Line crossing detection, field detection, loitering detection
Technical Specifications
Compatible Accessories
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input, periodical
trigger, system boot, recording notification, camera tampering
detection, audio detection
Alarm Events
Event notification using digital output, HTTP, SMTP, FTP and NAS
server, SD Card
File upload via HTTP, SMTP, FTP, NAS server and SD card
General
Smart Focus System FD836B-HTV/FD836B-EHTV: Remote Focus
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input
Audio output
DC 12V power input
Digital input*1
Digital output*1
LED Indicator System power and status indicator
Power Input
DC 12V
IEEE 802.3at PoE
Power Consumption
FD836B-HTV:
Max. 11.5 W (DC 12V)
Max. 13 W (PoE)
FD836B-HVF2:
Max. 7.5 W (DC 12V)
Max. 9 W (PoE)
FD836B-EHTV:
Max. 21/11.5 W (DC 12V-Heater on/off)
Max. 25/13 W (PoE-Heater on/off)
FD836B-EHVF2:
Max. 21/7.5 W (DC 12V-Heater on/off )
Max. 25/9 W (PoE-Heater on/off)
Dimensions Ø 155 x 103 mm
Weight 920 g
Casing
Weather-proof IP66-rated housing
Vandal-proof IK10-rated metal housing
Safety Certifications
FD836B-HTV/-EHTV: CE, LVD, FCC Class A, VCCI, C-Tick, UL
FD836B-HVF2/-EVF2: CE, LVD, FCC Class A, VCCI, C-Tick
Operating Temperature
FD836B-HVF2/FD836B-HTV:
Starting Temperature: -10°C ~ 50°C (14°F~ 122°F)
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F)
FD836B-EHVF2/FD836B-EHTV:
Starting Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
Working Temperature: -50°C ~ 50°C (-58°F ~ 122°F)
Warranty
36 months (FD836B-HTV/FD836B-EHTV)
24 months (FD836B-HVF2/FD836B-EHVF2)
System Requirements
Operating System Microsoft Windows 7/8/Vista/XP/2000
Web Browser
Mozilla Firefox 7~10 (streaming only)
Internet Explorer 7/8/9/10/11
Other Players
VLC: 1.1.11 or above
Quicktime: 7 or above
Included Accessories
CD
User's manual, quick installation guide, Installation Wizard 2,
ST7501 32-channel recording software
Others
Quick installation guide, warranty card, alignment sticker/
desiccant bag, screw pack
Dimensions
Ø155 m m
103 mm
Mounting Kits
AM-215 (v02)
L Shape Bracket
AM-517 (v03)
Adapter Ring
AM-520 (v03)
Mounting Adapter
AM -713
Conduit Box
6F, No.192, Lien-Cheng Rd., Chung-Ho,
New Taipei City, 235, Taiwan, R.O.C.
T: +886-2-82455282 F: +886-2-82455532
E: sales@vivotek.com
VIVOTEK INC.
2050 Ringwood Avenue,
San Jose, CA 95131
T: 408-773-8686 F: 408-773-8298
E: salesusa@vivotek.com
VIVOTEK USA
Ver. 8
All specifications are subject to change without notice. Copyright © VIVOTEK INC. All rights reserved.
Randstad 22-133, 1316BW Almere,
The Netherlands
T: +31(0)36 -5298 -434
E: saleseurope@vivotek.com
VIVOTEK Europe
602, Best sky Tower, Plot No. F-5,
Netaji Subhash Place, Pitam Pura, Delhi-110 034
T: +91-11-45137465
E: salesindia@vivotek.com
VIVOTEK India
* Available per project request.
