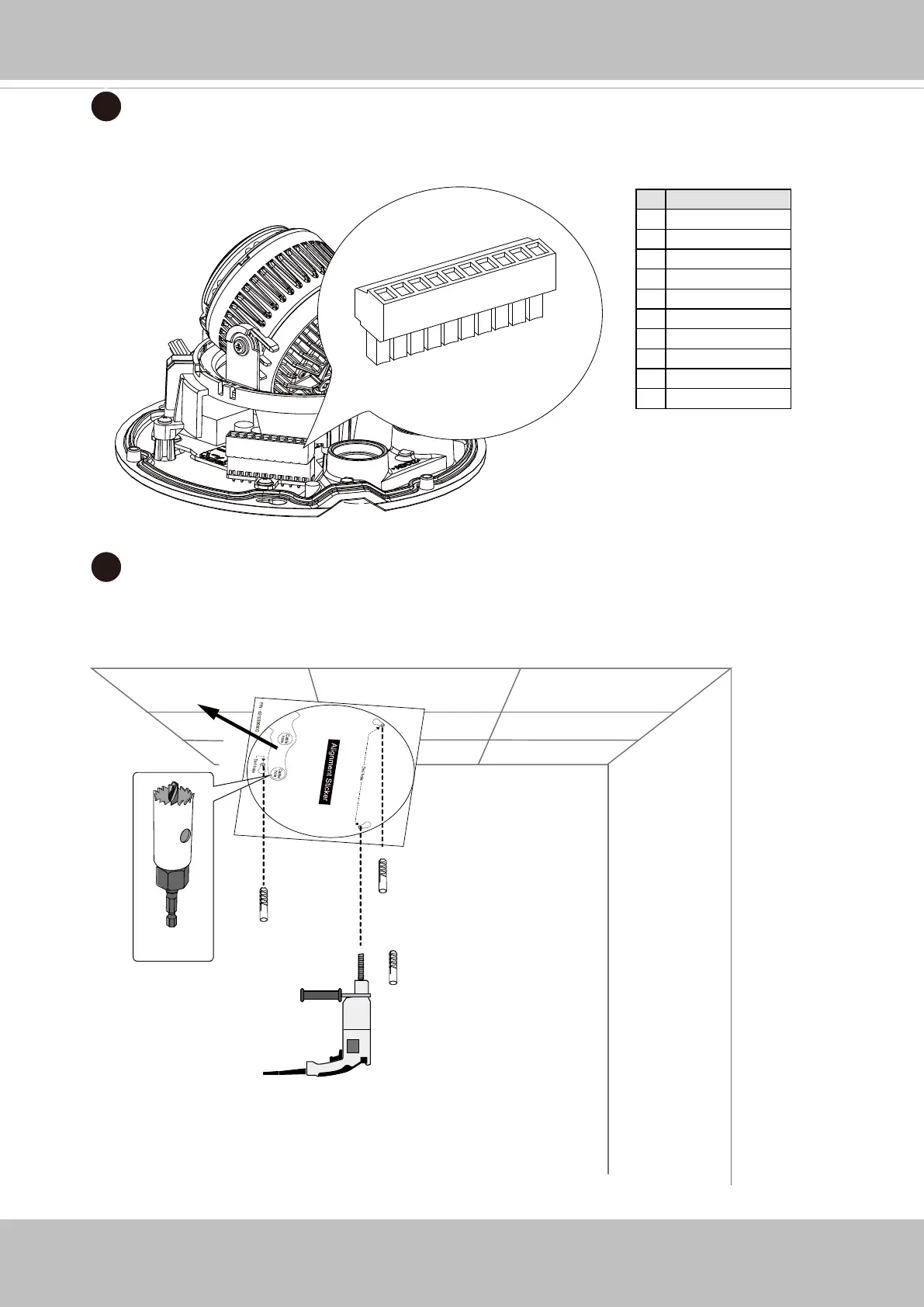

7. If applied, connect DI/DO wires, 12V DC power, or audio wires to the terminal block.
1
2
3
4
5
6
7
8
9
10
# Name
1 EXT_MIC_N
2 EXT_MIC_P
3 Audio_out-
4 Audio_out+
5 DI-
6 DI+
7 DO-
8 DO+
9 12V DC-_IN
10 12V DC+_IN
7
A
8
8. Attach the included alignment sticker to a preferred location. Drill holes for mounting
screws and if preferred, drill one or two routing holes.
