If the JPEG mode is selected, the Network Camera sends consecutive JPEG images to the client,
producing a moving e󰀨ect similar to a lmstrip. Every single JPEG image transmitted guarantees
the same image quality, which in turn comes at the expense of variable bandwidth usage. Because
the media contents are a combination of JPEG images, no audio data is transmitted to the client.

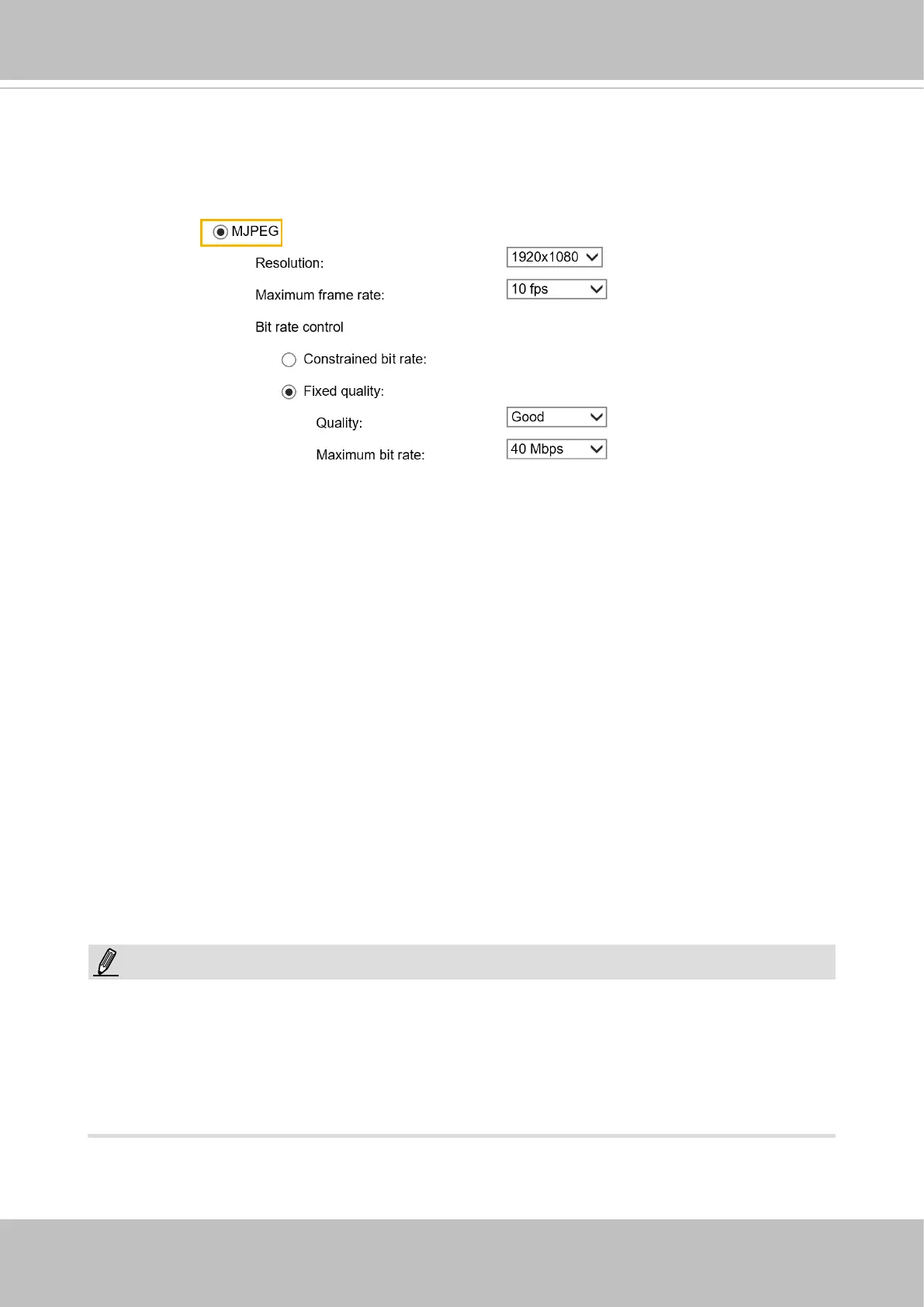

There are three parameters provided in MJPEG mode to control the video performance:
■ Frame size
You can set up di󰀨erent video resolution for di󰀨erent viewing devices. For example, set a smaller
frame size and lower bit rate for remote viewing on mobile phones and a larger video size and
a higher bit rate for live viewing on web browsers. Note that a larger frame size takes up more
bandwidth.
■ Maximum frame rate
This limits the maximum refresh frame rate per second. Set the frame rate higher for smoother
video quality.
If the power line frequency is set to 50Hz (at the 5MP resolution), the frame rates are selectable
at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. If the power line frequency is set to 60Hz, the
frame rates are selectable at 1fps, 2fps, 3fps, 5fps, 8fps, 10fps, and 15fps. You can also select
Customize and manually enter a value. The frame rate will decrease if you select a higher
resolution.
■ Video quality
Refer to the previous page setting an average or upper bound threshold for controlling the
bandwidth consumed for transmitting motion jpegs. The conguration method is identical to that
for H.264.
For Constant Bit Rate and other settings, refer to the previous page for details.
► Video quality and xed quality refers to the compression rate, so a lower value will produce higher
quality.
► Converting high-quality video may signicantly increase the CPU loading, and you may encounter
streaming disconnection or video loss while capturing a complicated scene. In the event of
occurance, we suggest you customize a lower video resolution or reduce the frame rate to obtain
smooth video.
NOTE:

Vivotek FD9369 Specifications

General

Type	IP security camera
Certification	CE, FCC, ICES-003, RCM, VCCI, Safety, UL, CB, IA, BIS, IK10, IP66
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Wi-Fi	-
Number of users	10 user(s)
Streaming method	Multicast
Networking standards	IEEE 802.3af
Ethernet interface type	Fast Ethernet
Supported network protocols	802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Flash memory	256 MB
Compatible memory cards	SD, SDHC, SDXC
Ethernet LAN (RJ-45) ports	1
Sensor type	CMOS
Optical sensor size	1/3.1 \
DC output voltage	12
Power source type	DC, PoE
Power consumption (max)	6.49 W
Power consumption (typical)	4 W
IK code	IK10
Form factor	Dome
Mounting type	Ceiling
Product color	Black, White
LED indicators	Power, Status
International Protection (IP) code	IP66
Pan range	0 - 350 °
Tilt angle range	-10 - 75 °
Camera shutter speed	1/5 - 1/32000 s
Minimum illumination	0.08 lx
Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Audio system	1-way
Audio formats supported	G.711, G.726
Signal-to-Noise Ratio (SNR)	59 dB
Bit rate control	Constant Bit Rate (CBR)
Total megapixels	2 MP
Maximum resolution	1920 x 1080 pixels
Video formats supported	H.264, H.265, M-JPEG
Image quality adjustment	Brightness, Saturation, Sharpness
LED type	IR
Night vision distance	30 m
Windows operating systems supported	Windows 10, Windows 7, Windows 8
Digital zoom	18 x
Focal length range	2.8 mm

Weight and Dimensions

Weight	465 g
Diameter	110 mm
