Vivotek FD9391-EHTV - Page 10

VIVOTEK
10 - User's Manual

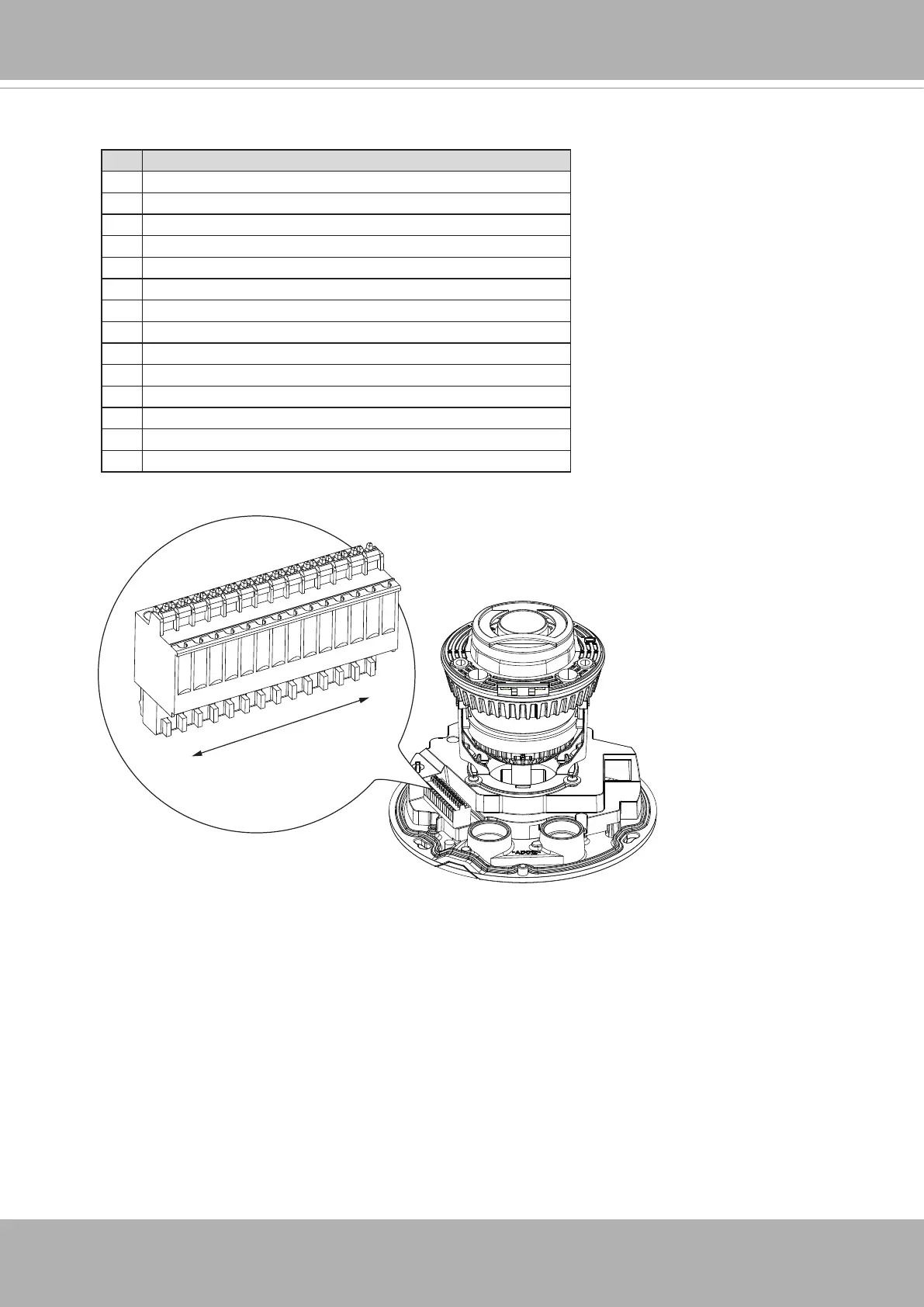

8. If applied, connect DI/DO wires, 12/24V DC power, or audio wires to the terminal block.
1
14
# Name
1 AC 24V
2 AC 24V
3 DC 12V IN-
4 DC 12V IN+
5 N/C
6 N/C
7 DI- (Common ground for DI and DO)
8 GND
9 DI+ 0
10 GND
11 DO- 0
12 DO+ (5V; if used, can be paired with DO- 0.)
13 MIC-IN P (Connect ground to pin #8)
14 AUDIO-OUT P (Connect ground to pin #8)
