Symbols and Statements in this Document
i
INFORMATION:
provides important messages or advices that might help prevent
inconvenient or problem situations.
NOTE
: Notices provide guidance or advices that are related to the functional integrity of
the machine.
Tips
: Tips are useful information that helps enhance or facilitae an installation, function,
or process.
WARNING: or IMPORTANT:
: These statements indicate situations that can be
dangerous or hazardous to the machine or you.
Electrical Hazard
: This statement appears when high voltage electrical hazards might
occur to an operator.
Physical Description

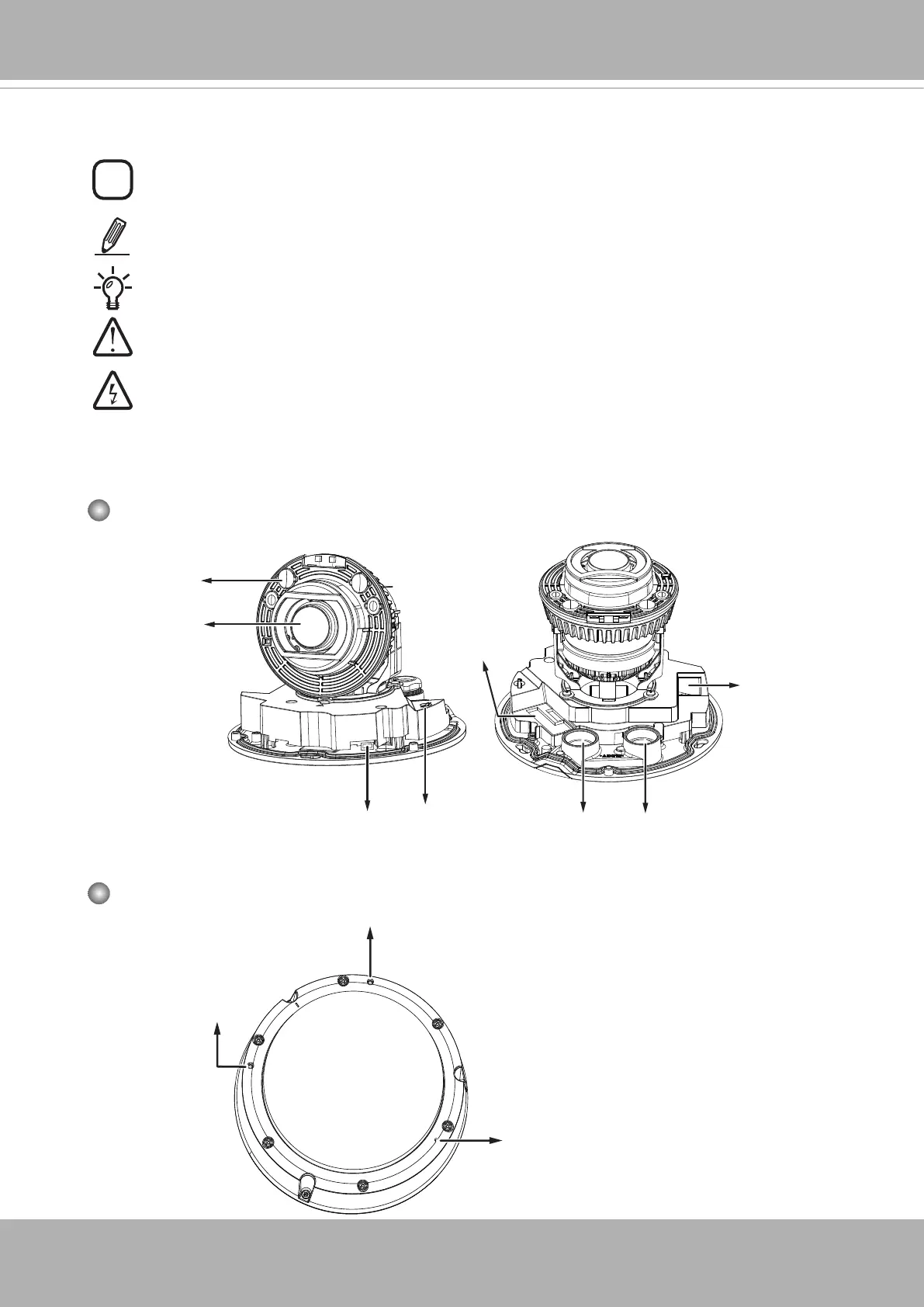

Inner View
I/O routing inlet
Motorized
lens
MicroSD/SDHC/SDXC
Card Slot
IR LEDs
RJ45
Ethernet port
Reset
button
Terminal block
Ethernet
routing inlet
Outer Look
Microphone
Not used
Not used
