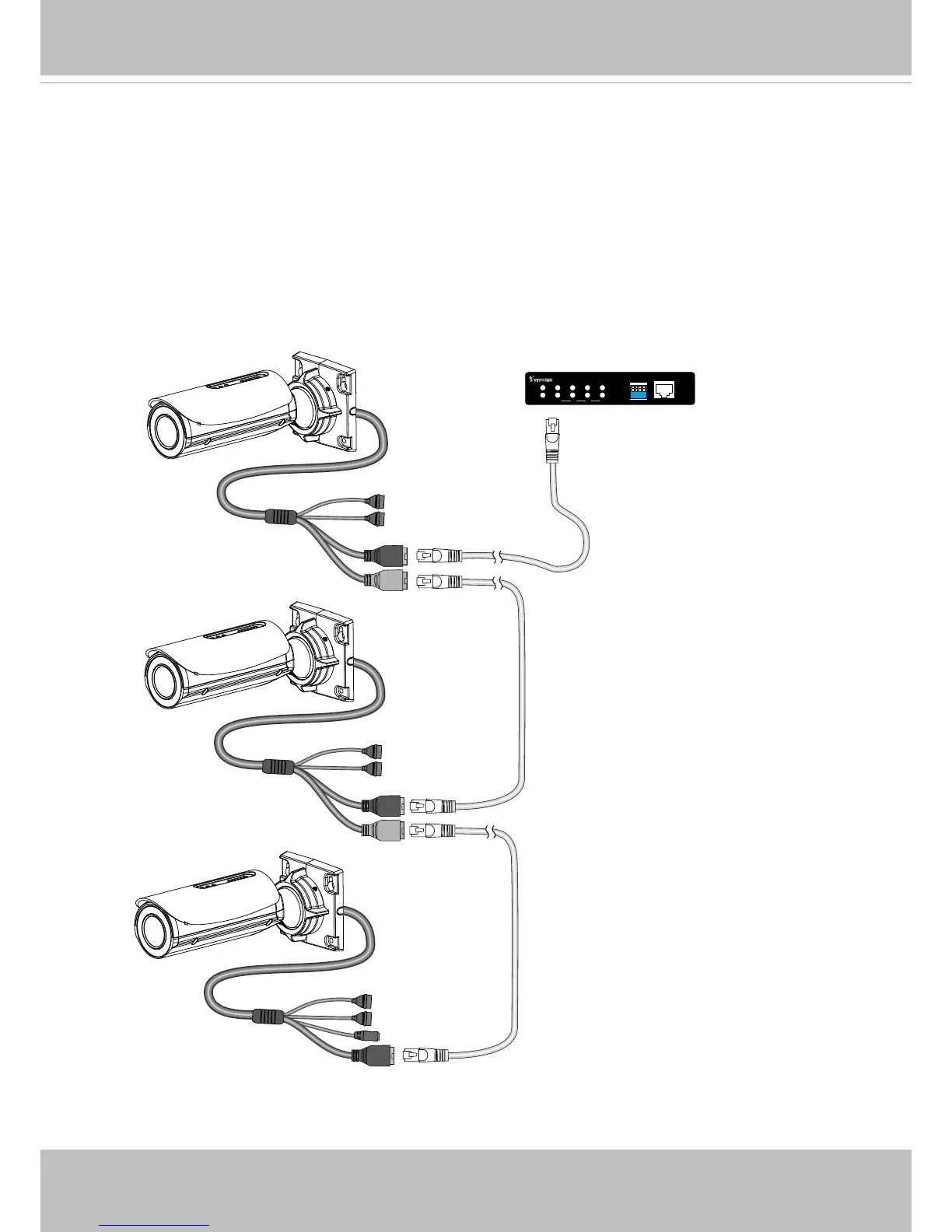

Repeater Model (IB8367-R/RT) Cascade Connections
1 2
3
4
1 2 3 4
LA N
Po E
UPL INK
Po E
ON
OFF
4xFE PoE + 1xFE Switch
UPLINK
POWER
ON
AW-FED-0500-120
100m
100m
100m
IB8367-R
IB8367-R
IB8367
IB8338-HR
IB8338-HR
IB8367-RT
IB8367-RT
IB8338
Each camera consumes up to 14.5W power. Up to 2 IB8367-R/RT and 1 IB8367 can be
cascaded in a conguration with a cabling distance of up to 300 meters. The precondition
is the use of the AE-FED-0500-120 PoE switch, which can deliver more than 50W of power
per port (exceeding the 802.3at specications).
Please use quality cables when cabling over an extended distance. Power loss due to
resistance can occur with low-quality cables.
