User's Manual - 7
Repeater Model (
IB8382-RF3/RT, IB836B-HRT/HRF3.
) Cascade Connections

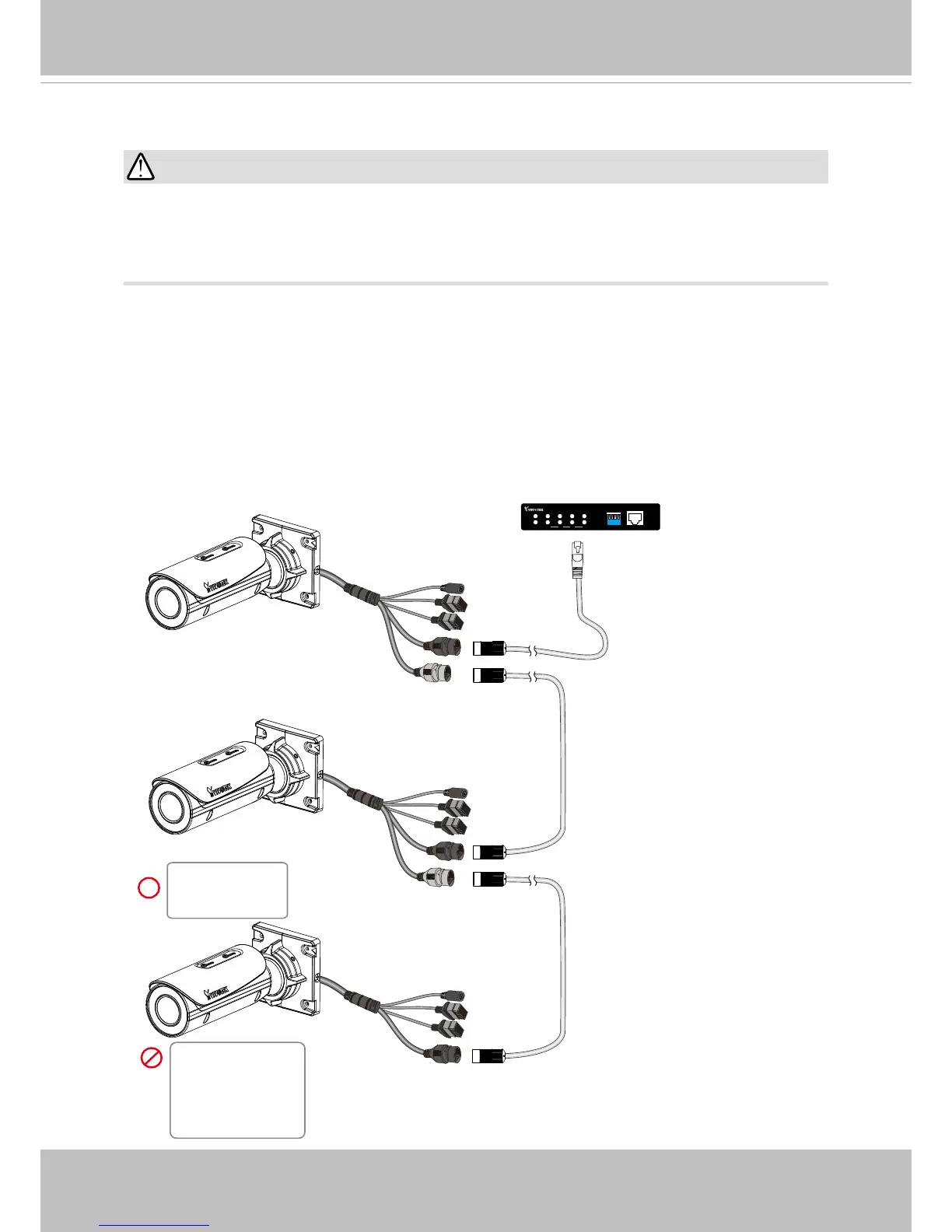

Each camera consumes up to 14.5W power. Up to 2 R model cameras and 1 non-repeater
camera can be cascaded in a conguration with a cabling distance of up to 300 meters.
The precondition is the use of the AE-FED-0500-120 PoE switch, which can deliver more
than 50W of power per port (exceeding the 802.3at specications).
Please use quality cables when cabling over an extended distance. Power loss due to
resistance can occur with low-quality cables.
1 2
3
4
1 2 3 4
LA N
Po E
UPL INK
Po E
ON
OFF
4xFE PoE + 1xFE Switch
UPLINK
POWER
ON
AW-FED-0500-120
100m
100m
100m
IB836B-HRT
IB836B-HT
IB8382-RF3
IB836B-HRF3
IB836B-EHT
IB836B-EHF3
IB836B-HF3
IB8382-F3
IB836B-HRT
IB8382-RF3
IB836B-HRF3
IB8382-ET
IB8382-EF3
Many copper coated aluminum (CCA) and other non-standard conductors cabling products
are masqueraded as CAT5E or CAT6 cables. Please avoid using these CCA products
especially when cascading PoE cameras. It is a must to use Ethernet cables compliant
with the 3P/ETL standard.
IMPORTANT:
The IB "E" series (heater models)
can not be applied in the cascade
conguration due to its extra power
consumption.
To Next Page
