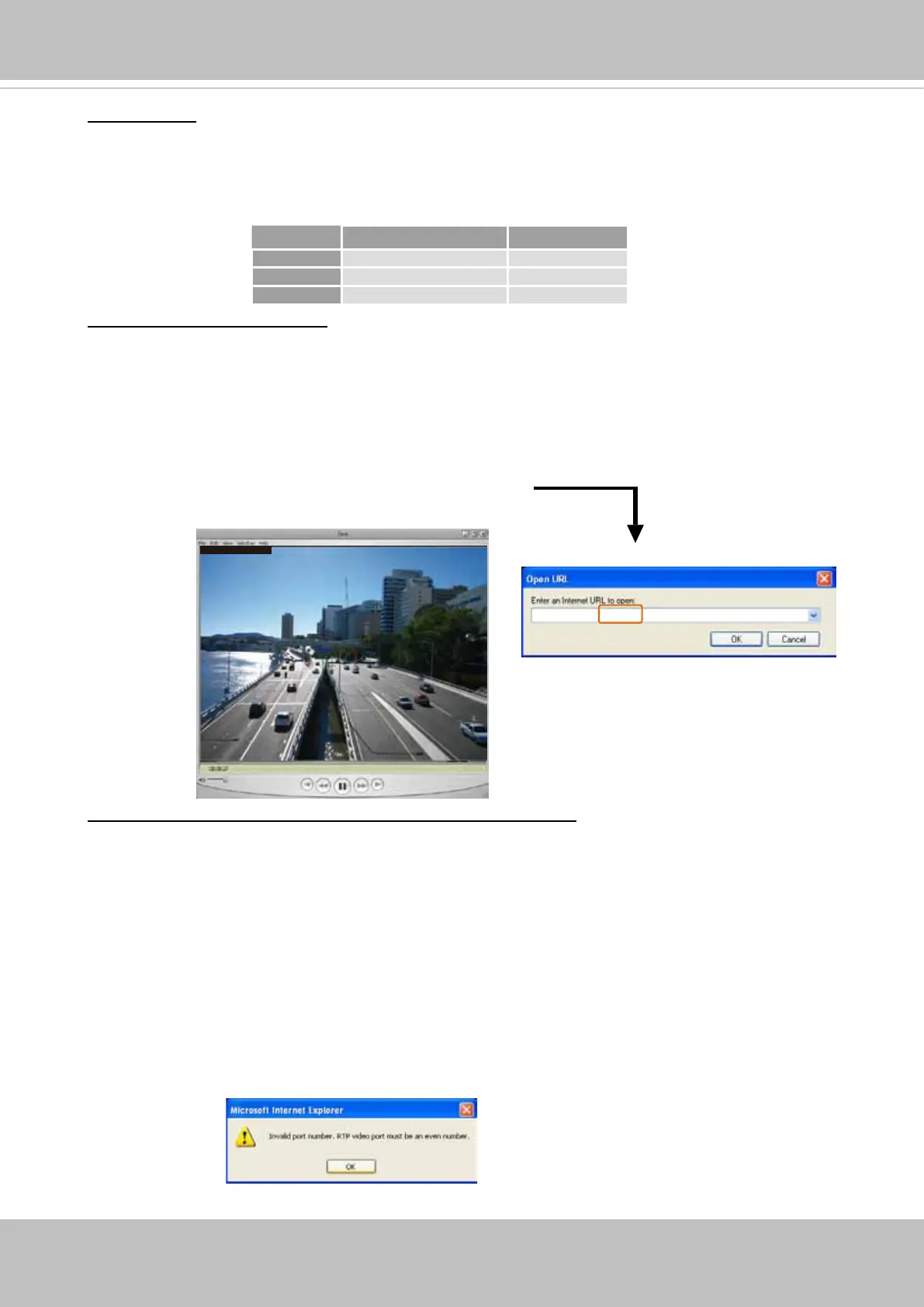

VIVOTEK
User's Manual - 85
Authentication: Depending on your network security requirements, the Network Camera provides
three types of security settings for streaming via RTSP protocol: disable, basic, and digest.
If basic authentication is selected, the password is sent in plain text format, but there can be
potential risks of it being intercepted. If digest authentication is selected, user credentials are
encrypted using MD5 algorithm, thus providing better protection against unauthorized access.
The availability of the RTSP streaming for the three authentication modes is listed below:
Access name for stream 1 ~ 3: This Network camera supports multiple streams simultaneously.
The access name is used to differentiate the streaming source.
If you want to use an RTSP player to access the Network Camera, you have to set the video mode
to H.264 or H.265 and use the following RTSP URL command to request transmission of the
streaming data.
rtsp://<ip address>:<rtsp port>/<access name for stream 1 to 3>
For example, when the access name for stream 1 is set to live.sdp:
1. Launch an RTSP player.
2. Choose File > Open URL. A URL dialog box will pop up.
3. Type the above URL command in the text box.
4. The live video will be displayed in your player as shown below.
rtsp://192.168.5.151:554/live.sdp
Quick Time player VLC
Disable O O
Basic O O
Digest O X
Video 16:38:01 2012/01/25
RTSP port /RTP port for video, audio/ RTCP port for video, audio
RTSP (Real-Time Streaming Protocol) controls the delivery of streaming media. By default, the
port number is set to 554.
■ The RTP (Real-time Transport Protocol) is used to deliver video and audio data to the clients. By
default, the RTP port for video is set to 5556.
The RTCP (Real-time Transport Control Protocol) allows the Network Camera to transmit the
data by monitoring the Internet trafc volume. By default, the RTCP port for video is set to 5557.
The ports can be changed to values between 1025 and 65535. The RTP port must be an even
number and the RTCP port is the RTP port number plus one, and thus is always an odd number.
When the RTP port changes, the RTCP port will change accordingly.
If the RTP ports are incorrectly assigned, the following warning message will be displayed:

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vivotek IB9371-HT and is the answer not in the manual?

Vivotek IB9371-HT Specifications

General IconGeneral
Built-in HDD-
Flash memory128 MB
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
CertificationCE, LVD, FCC Class A, VCCI, C-Tick, UL
Placement supportedOutdoor
Connectivity technologyWired
Video streamingAdjustable resolution, quality and bitrate Smart Stream II
Total megapixels3 MP
Maximum resolution2048 x 1536 pixels
Video formats supportedH.264, H.265
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions2048 x 1536 (QXGA)
Sensor typeCMOS
Optical sensor size1/2.8 \
Digital zoom48 x
Focal length range3 - 9 mm
Maximum aperture number2.3
Audio input1
Camera shutter speed1/5 - 1/16000 s
Minimum illumination0.001 lx
Form factorBullet
Mounting typeCeiling/wall
Product colorWhite
LED indicatorsPower, Status
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP66
LED typeIR
Night vision distance30 m
Audio system2-way
Audio formats supportedG.711
Signal-to-Noise Ratio (SNR)60 dB
Browser supportedMozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11
Number of users10 user(s)
Cabling technology10/100Base-T(X)
Networking standardsIEEE 802.3af, IEEE 802.3at
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS
InterfaceRJ-45
DC output voltage12
Power source typePoE
Power consumption (max)11 W
Storage temperature (T-T)-20 - 50 °C
Operating temperature (T-T)-10 - 50 °C
Operating relative humidity (H-H)0 - 90 %
Windows operating systems supportedWindows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Weight and Dimensions IconWeight and Dimensions
Height293 mm
Weight1182 g
Diameter88 mm
