Vivotek IP8152 - Physical Description

VIVOTEK
6 - User's Manual

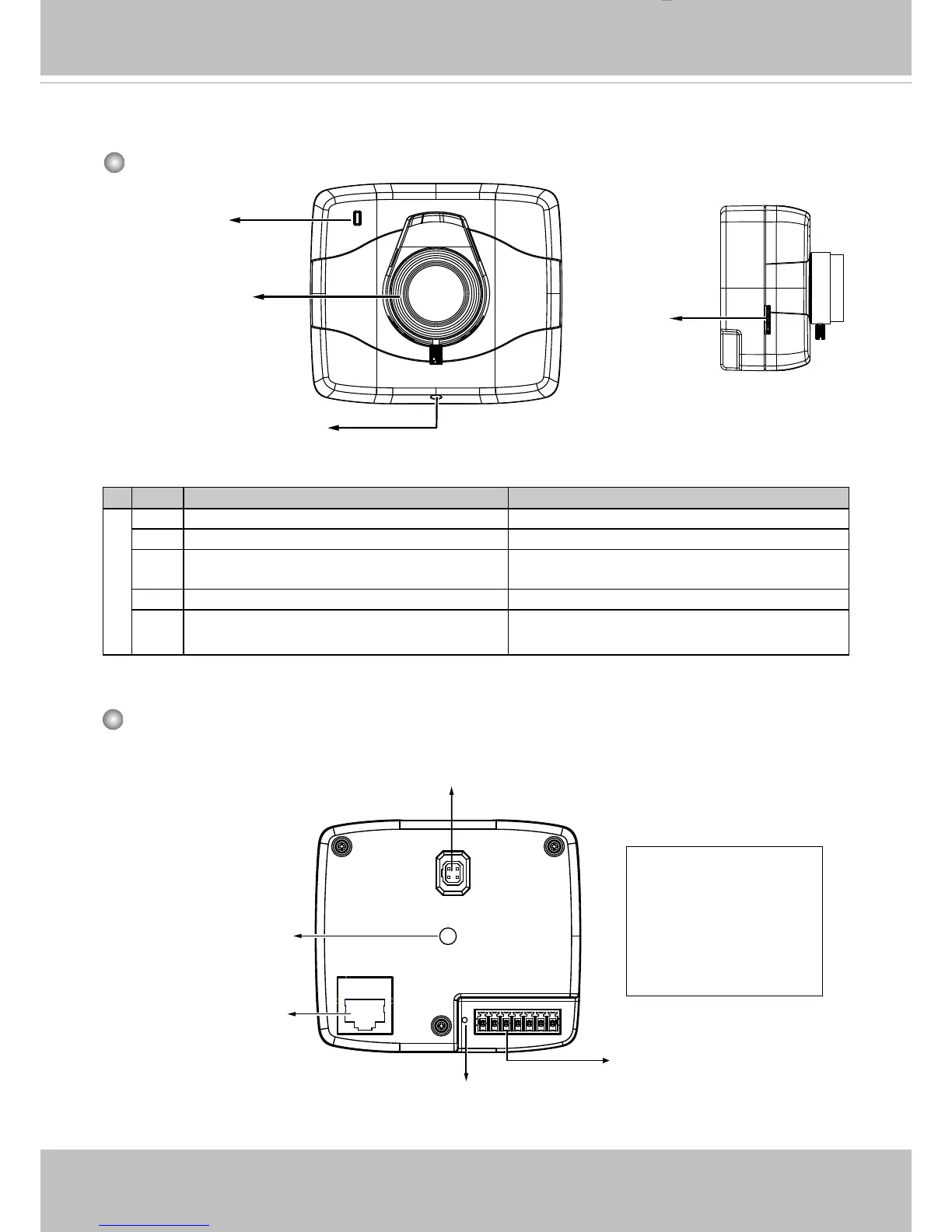

Physical Description
Front Panel
Rear Panel
Item LED status Description
LED Denitions
1 Steady Red Powered and system booting, or network failed
2 Green LED blinks every 1 sec� Connected to network
3 Green and RED blink consecutively every
0�15 sec�
Upgrading rmware
4 Steady Red Network failed
5 Orange blinks every 0�15 sec� Restoring defaults
Status LED
MicroSD/
SDHC/SDXC
Card Slot
Lens
Mount ring adjustment
Ethernet 10/100 RJ45
Socket
Recessed Reset Button
General I/O Terminal Block
Iris Control Cable Socket
1 2 3 4 5 6 7
GND DI
RS485_N RS485_P
GND_AUDIO MIC_IN
AUDIO_OUT
Mounting Hole
