Vivotek IP8352 - Network Deployment

VIVOTEK
10 - User's Manual

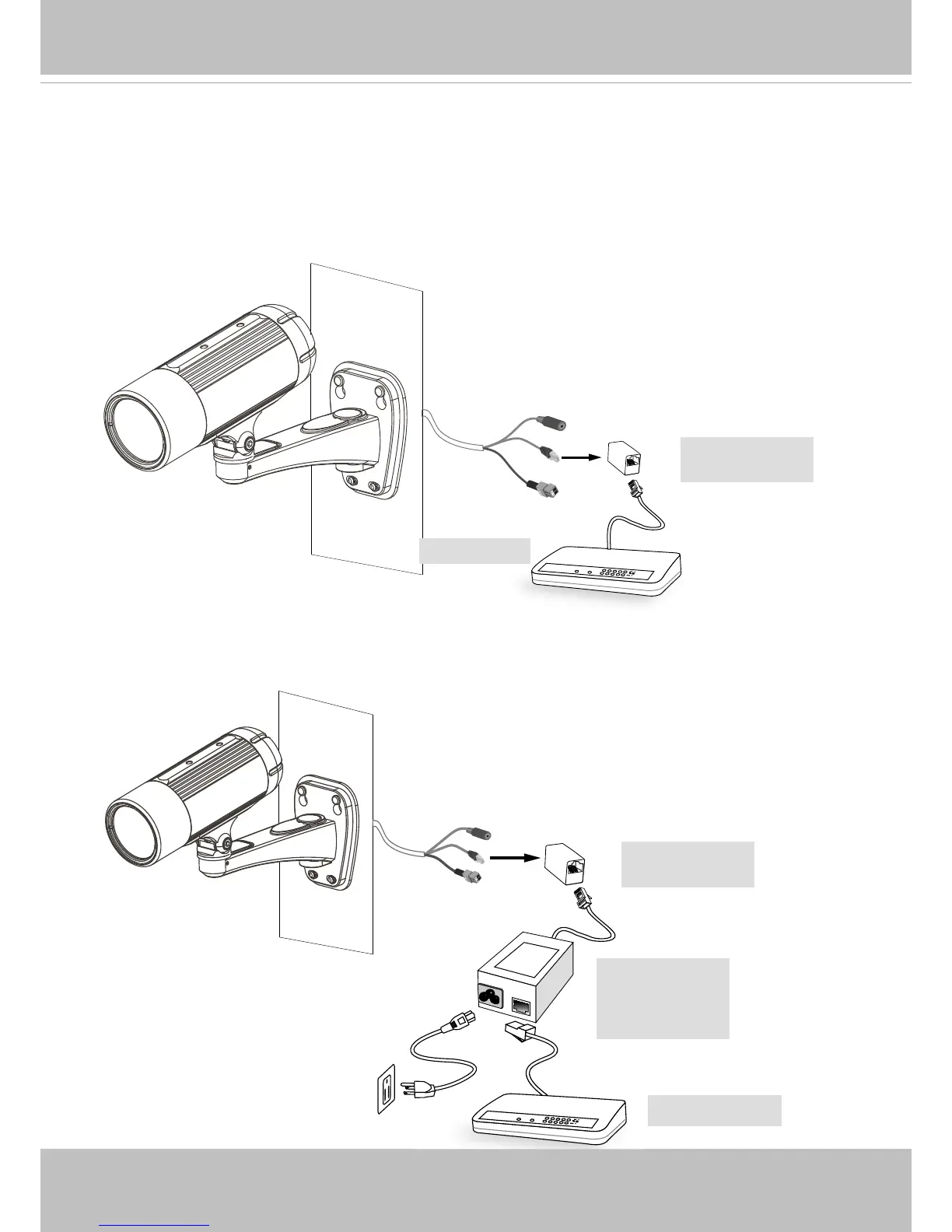

The Network Camera is PoE-compliant, allowing transmission of power and data via a single
Ethernet cable� Follow the below illustration to connect the Network Camera to a PoE-enabled
switch via Ethernet cable�
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Use a PoE power injector (optional) to connect between the Network Camera and a non-PoE
switch�
POWER
COLLISION
LINK
RECEIVE
PARTITION
1
2
3
4
5
Network Deployment
When using a PoE-enabled switch
PoE Switch
RJ45 Female/
Female Coupler
When using a non-PoE switch
RJ45 Female/
Female Coupler
PoE Power
Injector
(Optional)
Non-PoE Switch
