VIVOTEK
User's Manual - 7
Hardware Installation
IMPORTANT:
The diameters of the cable holes on the rubber seal
are shown on the right. Please properly install the
waterproof cable gland and cables through it to obtain
IP66 waterproof functionality.
All units are in millimeters. The cable range for the
Ethernet cable is 6.4 to 4.3mm, 1.6mm for DI lines.
3
1
2
4
Silica gel
M
icro
SD

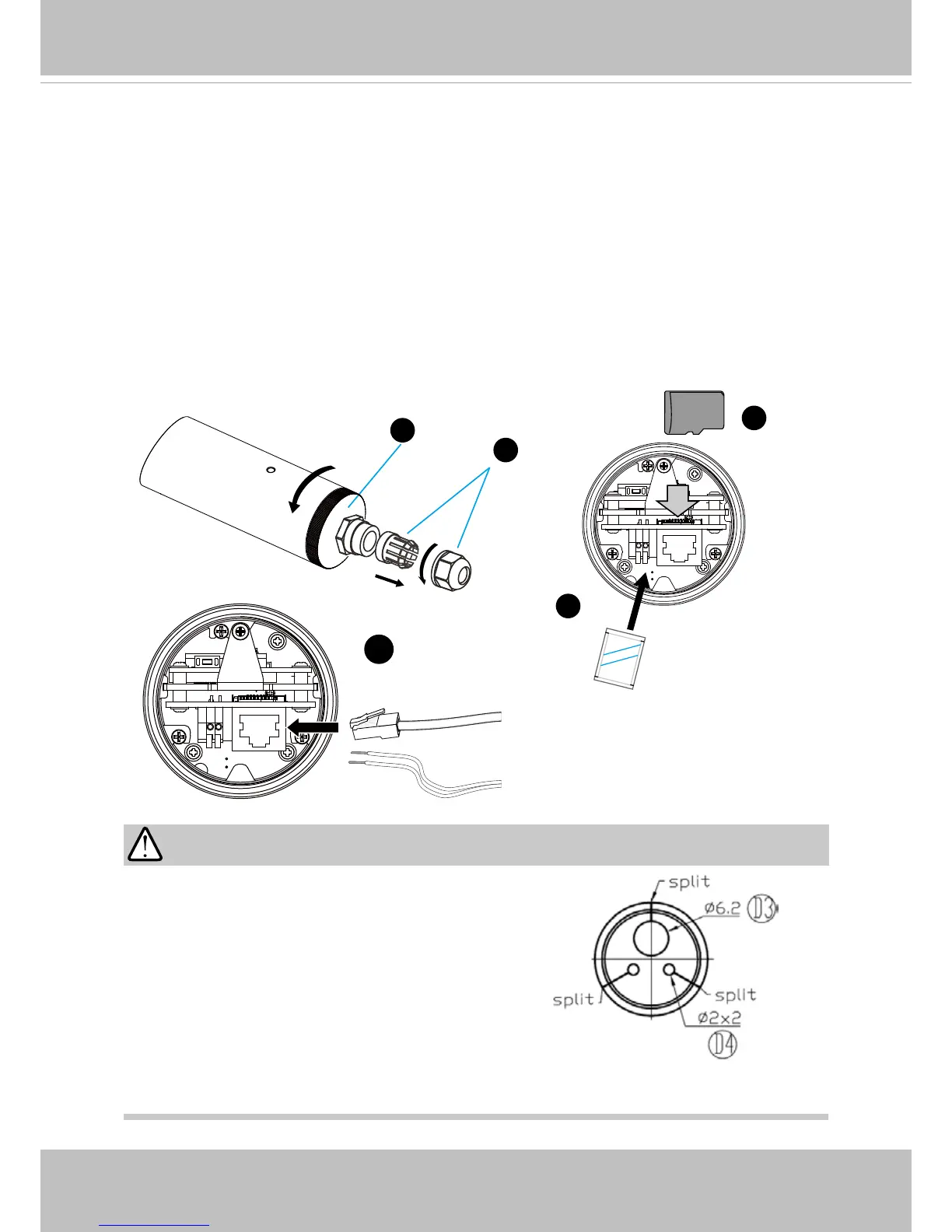

If you prefer installing a MicroSD card as onboard storage:
1. Loosen the waterproof connector, and then remove the rubber seal, and the waterproof
connector.
2. Loosen and open the rear cover.
3. Install a MicroSD/SDHC card.
4. Tear down the aluminum foil vacuum bag and take out the dessicant bag. Attach the
supplied dessicant bag to the inner side of the Network Camera. (Please replace the
dessicant bag with a new one every time you open the rear cover.)
5. Connect an Ethernet cable and DI lines to the camera, and pass them through the
rubber seal.
5
To Next Page
