102 - User's Manual

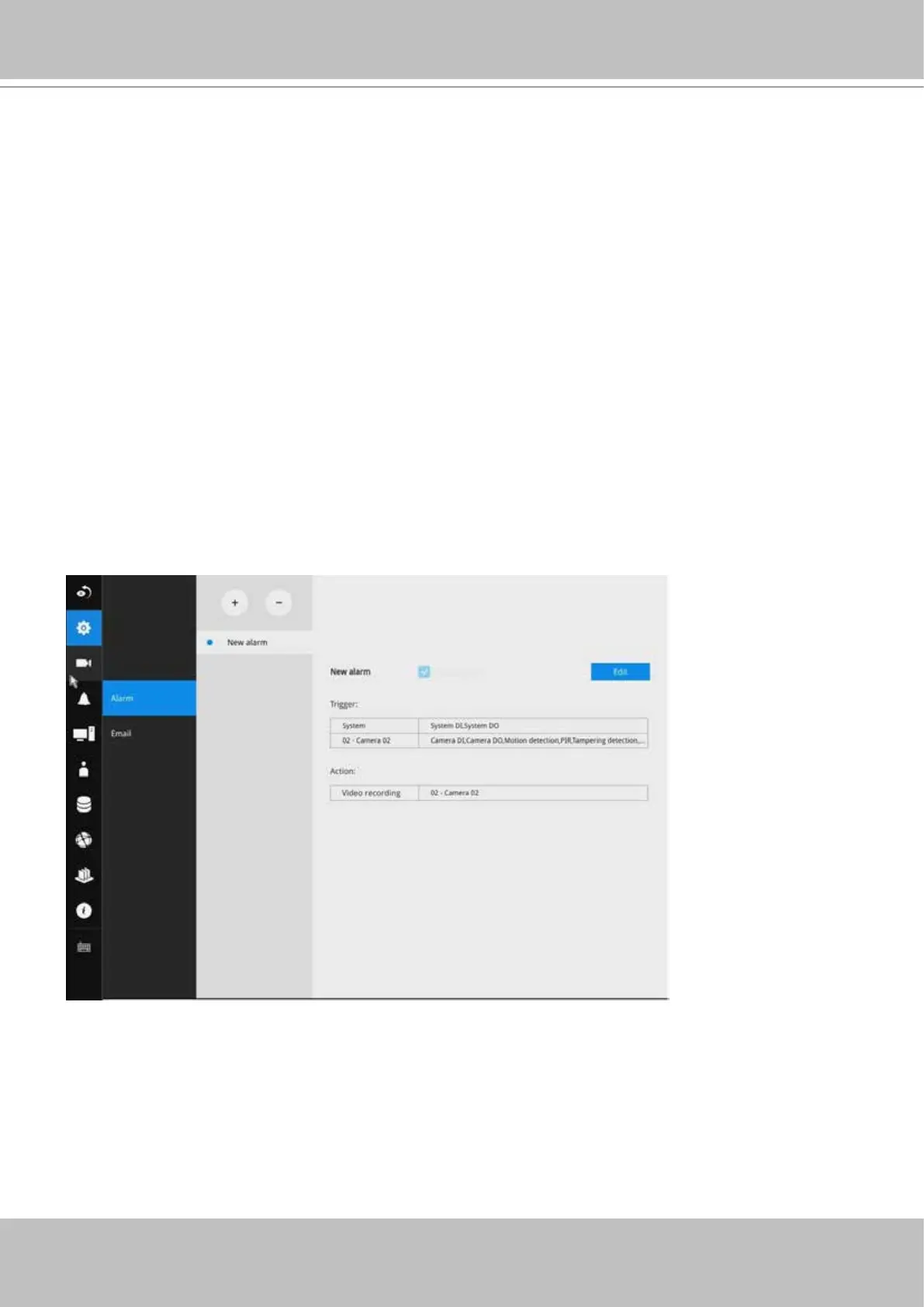

3-5-11. Settings–Alarm–Alarm
The events reported from individual cameras' digital inputs, digital outputs, and motion detection
can be accommodated in the NVR system's alarm settings. These events will then be reported
or trigger corresponding actions as follows:
1. Record the video by the time the event is triggered.
2. Reporting events via Email with snapshots attached.
3. Sound the onboard buzzer.
4. Triggering video snapshot and text message by the occurrences of events to an FTP site.
5. Triggering a camera's DO.
6. Triggering a PTZ camera(s) for its lens to move to a preset position.
7. Sending notication to the VAST CMS software.
8. Sending a full screen live view on the connected monitor.
You can create up to 10 instances of alarm.
Hardware connections to DIs or DOs, e.g., window sensors, should be made separately. The
motion detection conguration can be made in the Camera conguration window.
