User's Manual - 11

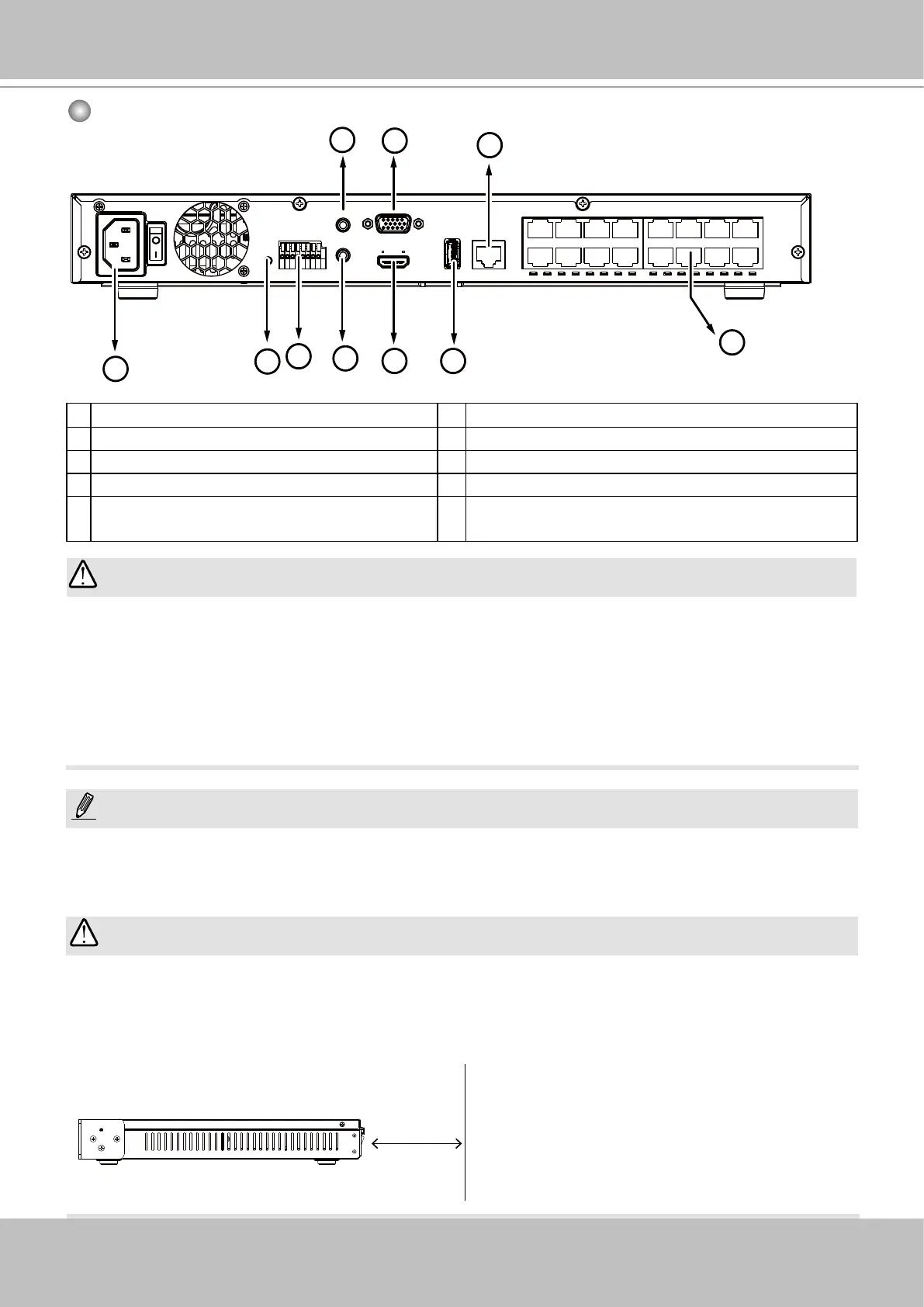

Rear View
9
1
3
4
5
8
10
2
6
7
1 PoE ports # 1 to #16 (ND9424P) 6 Audio OUT
2 RJ45 port - GbE uplink 7 VGA
3 HDMI 8 DI/DO terminal block
4 USB 3.0 port 9 Reset button
5 Audio IN 10 Power socket (110/240V AC), w/ a power
button
IMPORTANT:
It is important to leave a clearance of 25cm behind the chassis. The clearance is required to
ensure an adequate airow through the chassis to ventilate heat.
25cm
To ensure normal operation, maintain ambient airow. Do not block the airow around chassis
such as placing the system in a closed cabinet.
NOTE:
You can also use the Reset button to restore system defaults. Press and hold down the button
for longer than 5 seconds. The system should start restoring defaults.
IMPORTANT:
The total power budget for the ND9322P’s 8 PoE ports is 120W.
The total power budget for the ND9424P’s 16 PoE ports is 200W. Every 8 ports (#1 ~ #8 or #9 ~
#16) provides 100W.
Please ensure the camera PD specication meet the NVR PSE power supply specication be-
fore installation.
