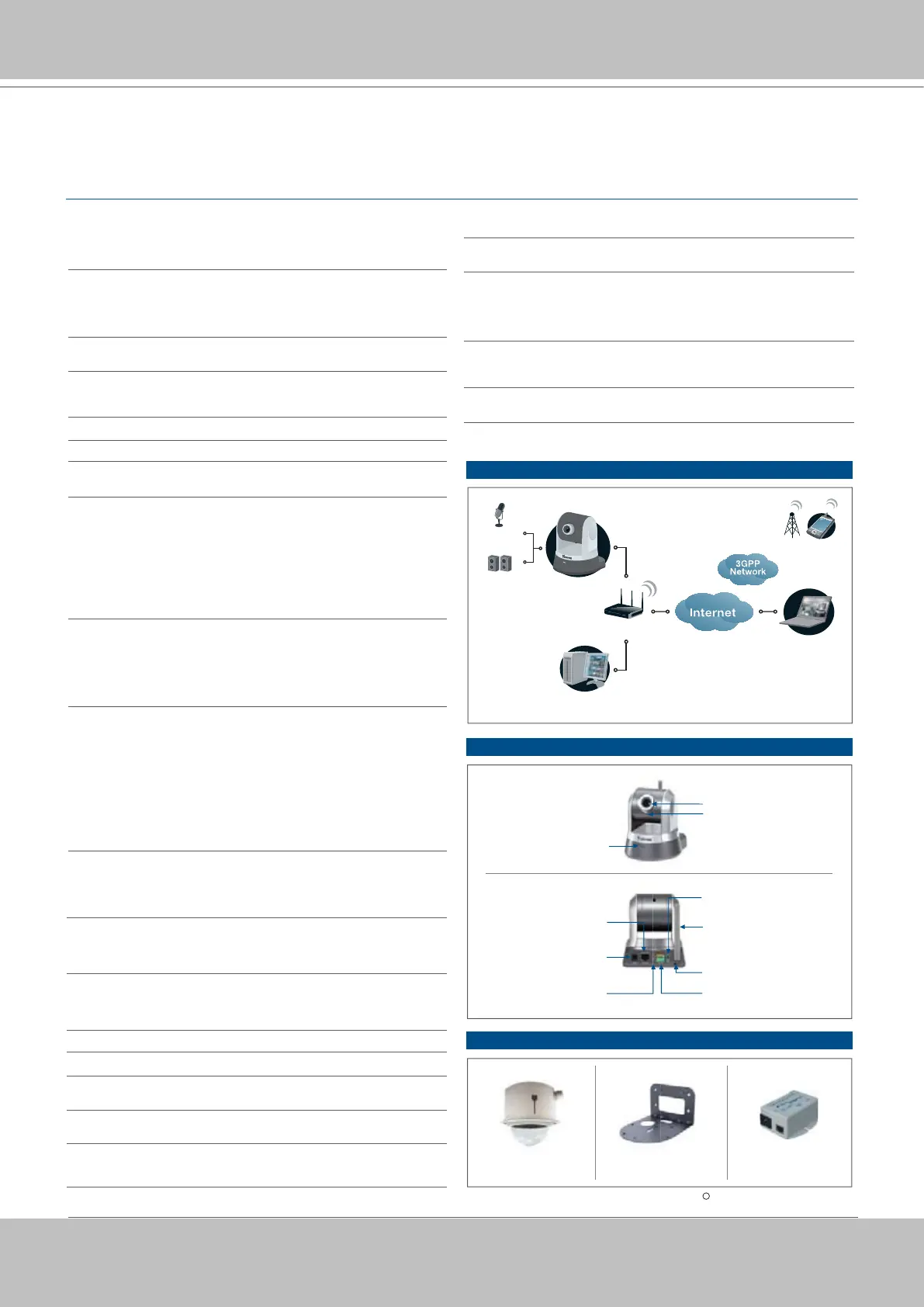

Accessories
External View
．CE, LVD, FCC, VCCI, C-Tick
．CPU: VVTK-1000 SoC
．Flash: 8 MB
．RAM: 64 MB
．Embedded OS: Linux 2.4
．Board lens, 2.6x optical zoom, f=2.8 ~ 7.3 mm,
F1.9, auto-iris,focus range: 0.75 mm to infinity
．1/5 sec. to 1/15,000 sec.
．28.7° ~ 73.4° (horizontal)
．21.6° ~ 54.7° (vertical)
．35.8° ~ 92.2° (diagonal)
．Micron 1/4” CMOS sensor in VGA resolution
．1.25 Lux / F1.9
Specifications
Networking
Alarm and
Event Management
Security
Users
Dimension
Weight
LED Indicator
Power
Approvals
Operating Environments
System
Lens
．Pan range: 350° (+175° ~ -175° )
．Tilt range: 125° (+90° ~ -35° )
．2.6x optical zoom
．Auto pan mode
．Auto patrol mode
Pan/Tilt/Zoom
Shutter Time
Image sensor
Angle of View
Minimum
Illumination
Video
Image Settings
Audio
Viewing System Requirements
Installation, Management,
and Maintenance
Applications
．10/100 Mbps Ethernet, RJ-45
．Protocols: IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/
RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS,
DDNS, and PPPoE
．Built-in 802.11b/g WLAN (PZ7132)
．Triple-window video for motion detection
．One D/I and one D/O for external sensor and alarm
．Event notification using HTTP, SMTP, or FTP
．Local recording of MP4 file
．Multi-level user access with password protection
．IP address filtering
．HTTPS encrypted data transmission
．Wireless: WEP, WPA-PSK, WPA2 (PZ7132)
．Camera live viewing for up to 10 clients
．103.5 mm (D) x 104.1 mm (W) x 118 mm (H)
．Net: 352 g (PZ7131)
．Net: 371 g (PZ7132)
．System power and status indicator
．System activity and network link indicator
．12V DC
．Power consumption: Max. 12 W
．802.3af compliant Power over Ethernet (PZ7131)
．Temperature: 0 ~ 50° C (32 ~ 122° F)
．Humidity: 20% ~ 80% RH
．Compression:
GSM-AMR speech encoding, bit rate:
4.75 kbps to 12.2 kbps
MPEG-4 AAC audio encoding, bit rate:
16 kbps to 128 kbps
．Interface:
Built-in microphone
External microphone input
External audio output
External/Internal microphone switch
．Supports two-way audio by SIP protocol
．Supports audio mute
．Compression: MJPEG & MPEG-4
．Streaming:
Simultaneous dual-streaming
MPEG-4 streaming over UDP, TCP, HTTP, or HTTPS
MPEG-4 multicast streaming
MJPEG streaming over HTTP or HTTPS
．Supports 3GPP mobile surveillance
．Frame rates:
MPEEG-4: Up to 30/25 fps at 640x480
MJPEG: Up to 30/25 fps at 640x480
．Adjustable image size, quality, and bit rate
．Time stamp and text caption overlay
．Flip & mirror
．Configurable brightness, saturation contrast,
sharpness and white balance
．AGC, AES
．Backlight Compensation (BLC)
．OS: Microsoft Windows 2000/XP/Vista
．Browser: Internet Explorer 6.x or above
．Cellphone: 3GPP player
．Real Player: 10.5 or above
．Quick Time: 6.5 or above
．SDK available for application development
and system integration
Warranty
．24 months
．Installation Wizard 2
．16-CH recording software
．Supports firmware upgrade
System Overview
Built-in MIC
Status LED
Lens
Power Cord Socket
Ethernet 10/100
RJ45 Socket
General I/O
Terminal Block
Audio Out
Antenna
(PZ7132)
MIC In
External/Internal
MIC Switch
PoE InjectorMounting KitEnclosure
PC with
Recording Software
Speaker
External
Microphone
Router
Notebook with
Web Browser
3G Cell Phone
PZ7131
Ver 0�1
All specications are subject to change without notice. Copyright 2008 VIVOTEK INC. All rights reserved.
