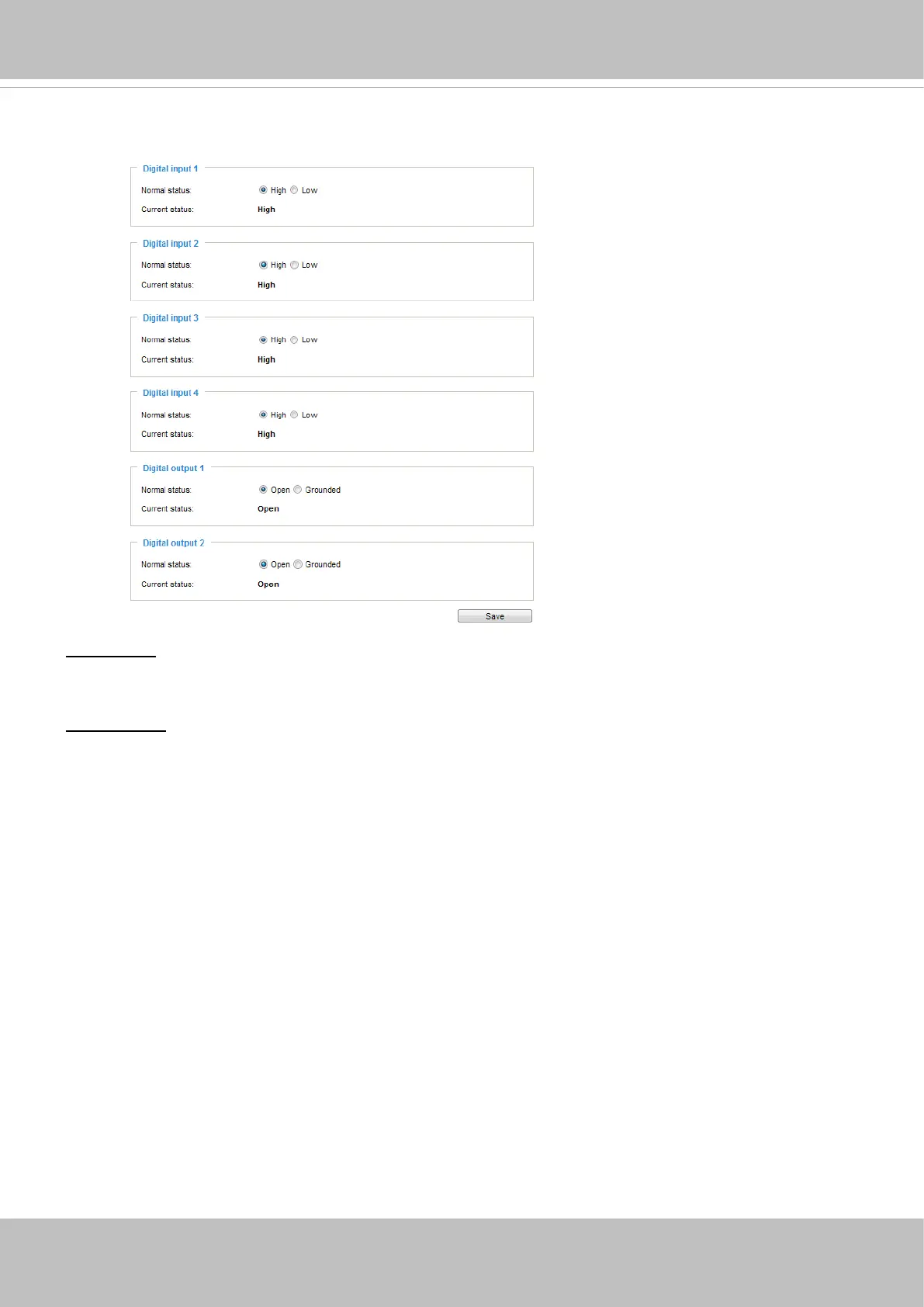

Applications > DI and DO
Digital input: Select High or Low to dene normal status for the digital input. Connect a digital input from
a sensor device to the camera, the Network Camera will report the current signal status. You may then
congure the Normal status (non-trigger status) as High or Low.
Digital output: Select High or Low to dene normal status for the digital output. Connect an output line to
an external device, the Network Camera will report the current signal status. You may then congure the
Normal status (non-trigger status) as High or Low.
Set up the event source as DI on Event > Event settings > Trigger. Please refer to page 131 for
detailed information.
