VIVOTEK
18 - User's Manual

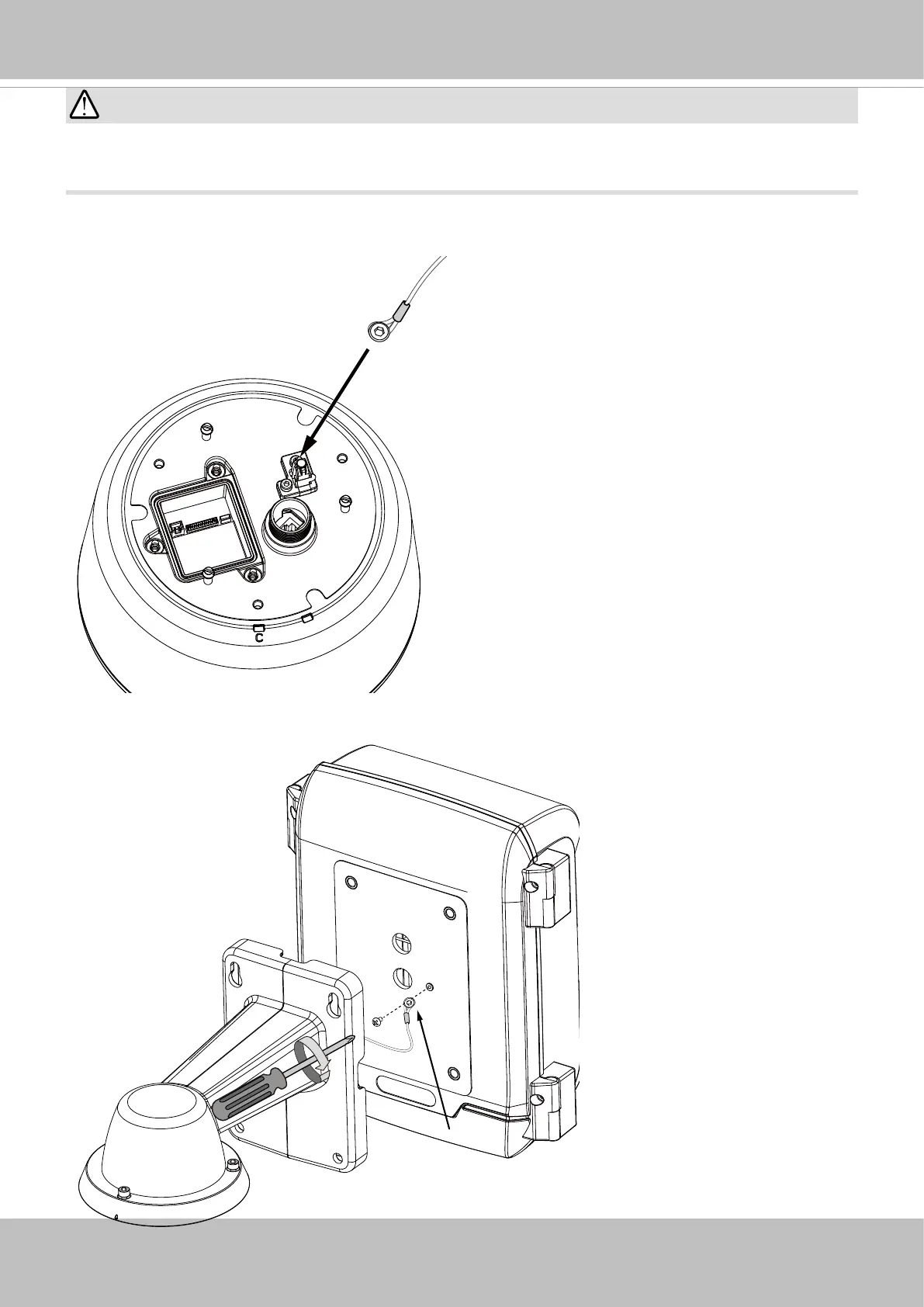

13. Connect the included ground wire. An example is shown below using VIVOTEK’s AT-CAB
cabinet.
Camera ground wire
Connect the ground wire to the copper screw hole on the cabinet door.
IMPORTANT:
Make sure all waterproof cable glands have been properly installed. Water leakage will cause
irrepairable damage to the camera.
