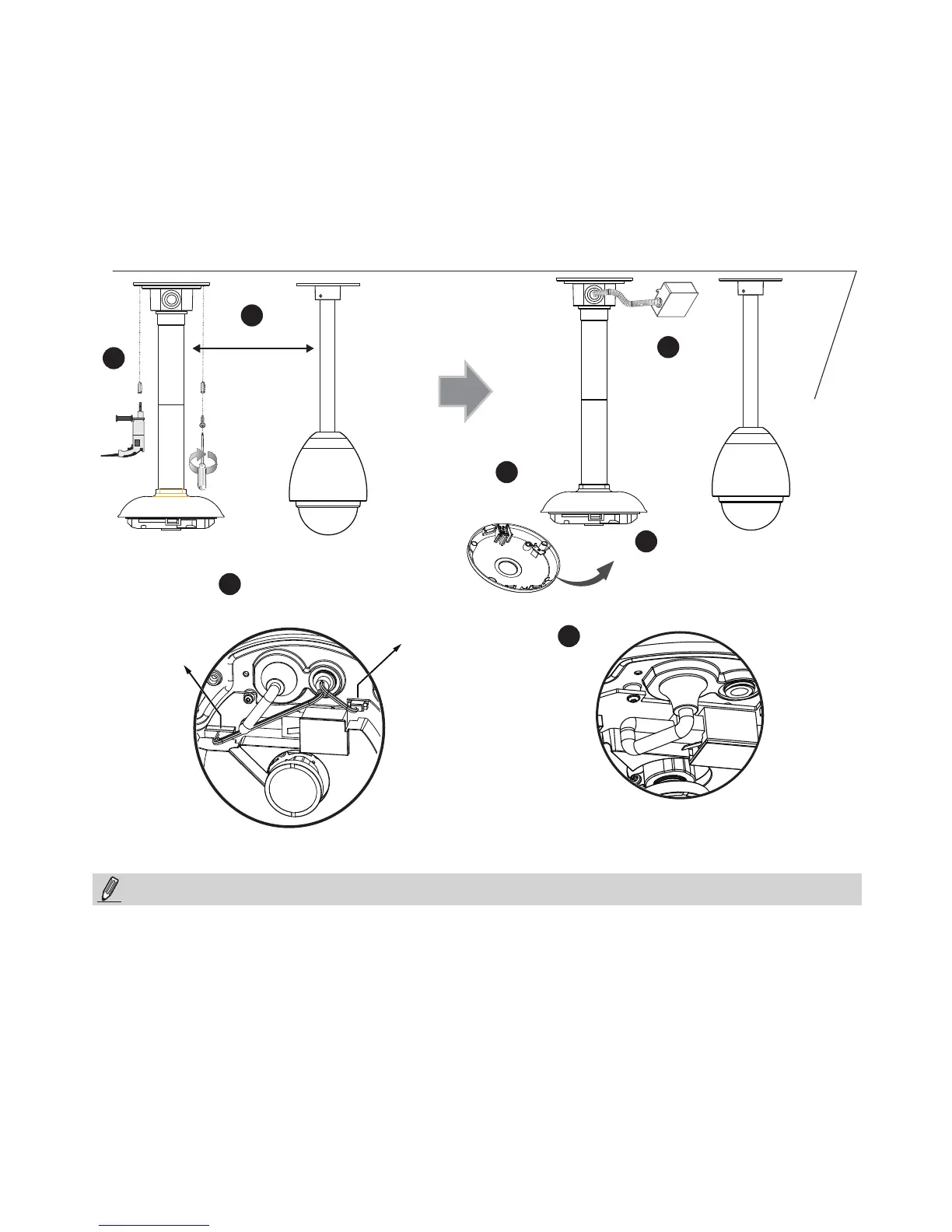

Install to the Ceiling
1. Drill pilot holes into the ceiling. Then hammer four anchors into the holes.
2. Secure the pendant head to the ceiling using four screws.
3. Connect the two white header connectors to the J6 and J7 connectors.
4. Connect the Ethernet cable to the RJ-45 socket.
5. You will find a desiccant bag attached to the camera. Replace the desiccant bag included in the
camera with the one shipped within the accessory bag.
6. Attach the dome cover to the camera.
7. Route cables through a 3/4” conduit from the pendant head.
Arrange the cables neatly to avoid getting in the way when the dome cover is attached.
