1. Align front wheel assembly so that the disc brake rotor is on
the same side as the disc brake caliper mounted to the front
fork.
2. Slide front wheel assembly in place so that the brake rotor
slides up and in-between the two brake pads installed in the
disc brake caliper. (the slot in the middle)
3. The front axle protruding from both side of the front wheel
assembly should also line up with the slots on the bottom of
the front suspension fork.
4. Once the axle of the front wheel assembly is centered and
positioned as far up as possible on the bottom of the front
suspension fork, the axle bolts MUST be securely tightened.
A 15mm open ended wrench, 15mm scoket wrench or an ad-
justable wrench will suffice to
tighten the two front axle
nuts.
5. After securing the front wheel
assembly, check the adjust-
ment of the brake assembly.
The front wheel should be
able to spin freely with little
drag from the disc brake.

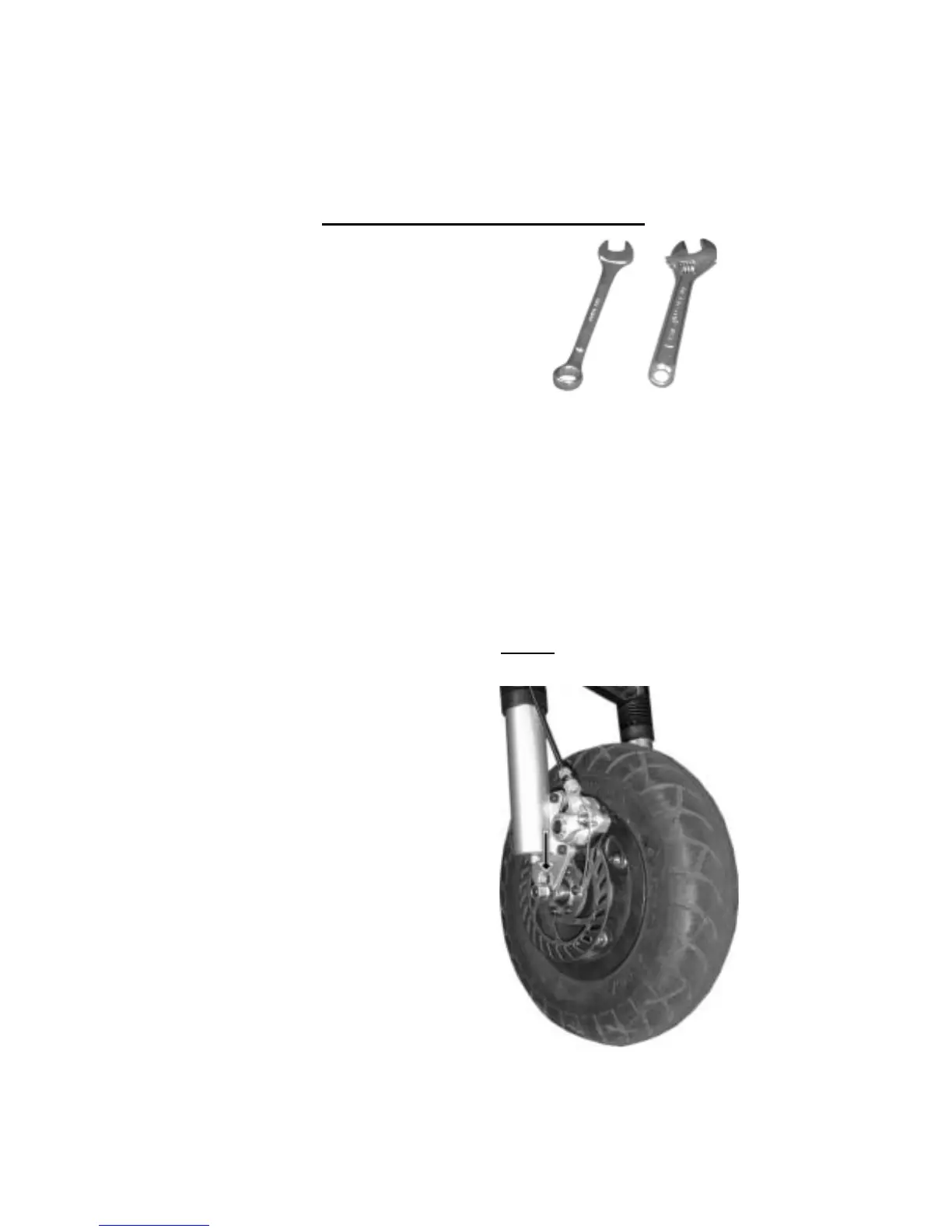

ASSEMBLY OF FRONT WHEEL
TOOLS REQUIRED
15mm open wrench, 15mm socket
wrench or an adjustable wrench.
POSITION WHEEL ASSEMBLY
