Vizio D40fM-K09 User Manual

9

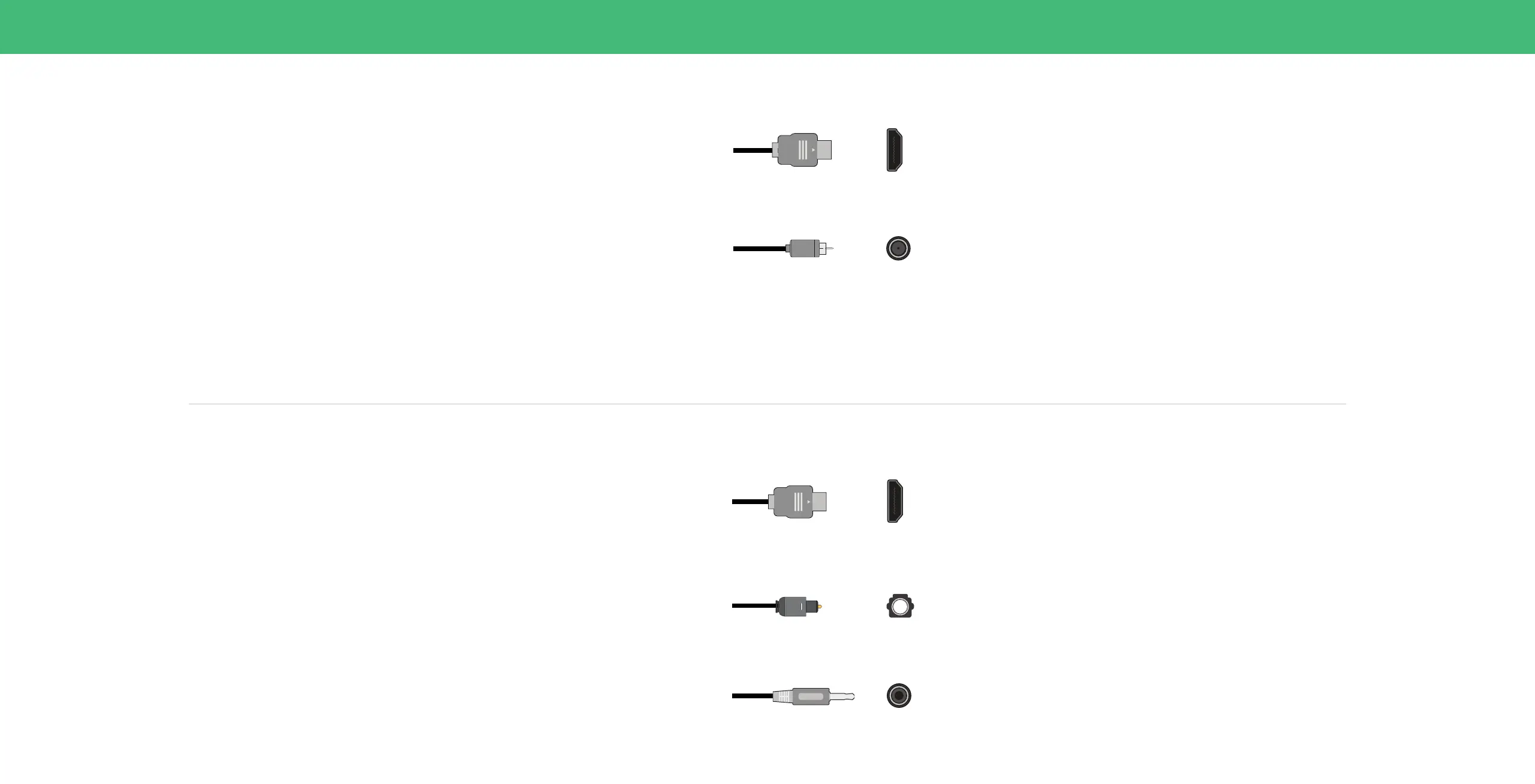

Connecting a device — AUDIO & VIDEO CABLE TYPES
Your TV can be used to display output from most devices.
1. Verify that your device has a video port that matches an available port on the TV.
2. Connect the appropriate cable (not included) to the TV and the device.
3. Turn the TV and your device on.
4. Set the TV’s input to match the connection you used (HDMI-1, HDMI-2, etc.).
HDMI
Optical
Standard
RCA
RCA To 3
5mm
HDMI
HDMI CABLE
Coaxial
Optical
Standard
RCA
RCA To 3
5mm
HDMI
COAXIAL CABLE
Connecting a device — AUDIO CABLE TYPES
Your TV can output sound to an audio device, such as a receiver or sound bar.
1. Verify that your device has an audio port that matches an available port on the TV.
2. Connect the appropriate cable (not included) to the TV and the device.
3. Turn the TV and your device on.
Note: The actual ports and their locations may vary, depending on the TV model.
Optical
Standard
RCA
RCA To 3
5mm
HDMI
OPTICAL/SPDIF CABLE
HDMI
Optical
Optical
Standard
RCA
RCA To 3
5mm
HDMI
HDMI CABLE
Optical
Standard
RCA
RCA To 3
5mm
HDMI
STEREO AUDIO OUT CABLE
Stereo Audio Out

Vizio D40fM-K09 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	40 \
Display brightness	- cd/m²
Display technology	LED
Native aspect ratio	16:9
Display diagonal (metric)	101.6 cm
Motion interpolation technology	-
Tuner type	Analog
RMS rated power	- W
Number of speakers	2
Ethernet LAN	No
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Product color	Black
Panel mounting interface	100 x 100, 200 x 100 mm
HDMI version	1.4
Headphone outputs	1
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Package depth	150.1 mm
Package width	1011.9 mm
Package height	620 mm
Package weight	9100 g
Remote control type	XRT260 (Voice RCU)

Weight and Dimensions

Depth (with stand)	223.8 mm
Width (with stand)	892.8 mm
Height (with stand)	565.4 mm
Weight (with stand)	5600 g
Depth (without stand)	79.5 mm
Height (without stand)	505.7 mm
Weight (without stand)	5500 g
