VIZIO E260MV User Manual
11
www.VIZIO.com

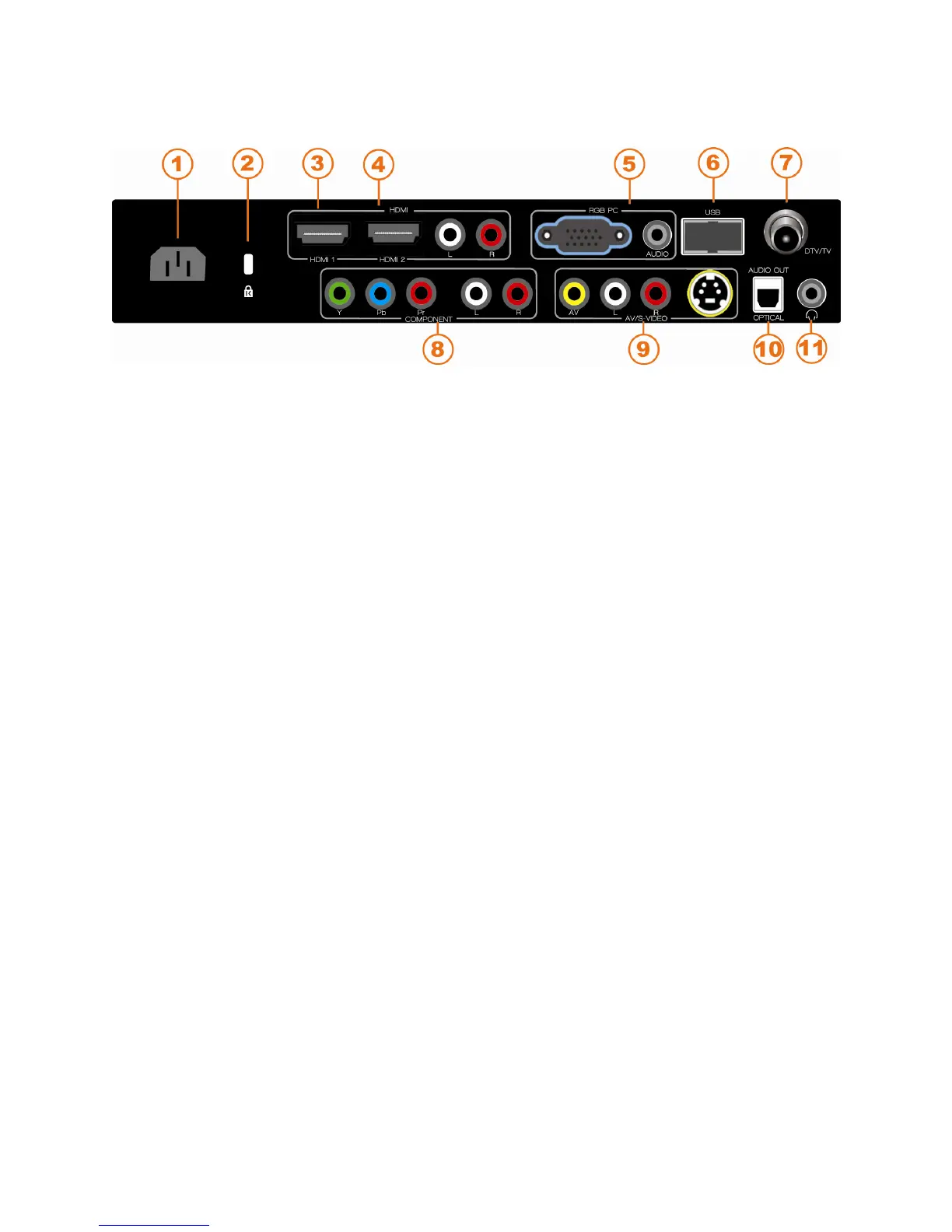

Rear Panel Connections
1. AC IN—Connect the included AC power cord here. Connect the other end to a wall
outlet.
2. Kensington Security Slot—Insert a Kensington lock and attach your HDTV to a
permanent object to prevent theft.
3. HDMI 1—Connect digital video devices such as a DVD player or Set-Top Box through
these all digital connectors.
4. HDMI 2 with L/R Audio—Connect another digital video device such as a DVD player
or Set-Top Box through this all digital connector. For users who want to connect to a
DVI enabled device, use a DVI-HDMI cable and connect the analog audio output of the
device to the L / R AUDIO here. Your VIZIO Certified HDMI-DVI cables are available
for purchase from www.VIZIO.com or by calling 877-MYVIZIO (877-698-4946).
5. RGB PC— Connect the video and audio from a computer here. Connect a 1/8” mini
plug stereo connector from the computer to the TV if you want the sound to come from
the HDTV speakers.
6. USB PORT—Insert a FAT/FAT32 formatted USB drive to view pictures. This port is
also used for service.
7. DTV/TV— Connect to an antenna or digital cable source. For digital TV stations in your
area visit www.antennaweb.org. For Cable and Satellite Set-Top boxes, we
recommend that you use a HDMI or component cable connection for high definition
image quality.
8. COMPONENT (Y Pb/Cb Pr/Cr with L/R Audio)—Connect component video devices
such as a DVD Player or set top box here.
9. AV/S-VIDEO— Connect composite or S-Video video devices, such as a VCR or game
console. Use the white and red connectors to connect the external audio from the same
source.
10. AUDIO OUT—(OPTICAL) When digital TV is selected for viewing, the audio associated
with the programming will be available on the S/PDIF Optical connector for connection
to a VIZIO Sound Bar or your Home Theater system.
11. Headphones—Connect your personal headphones here.
