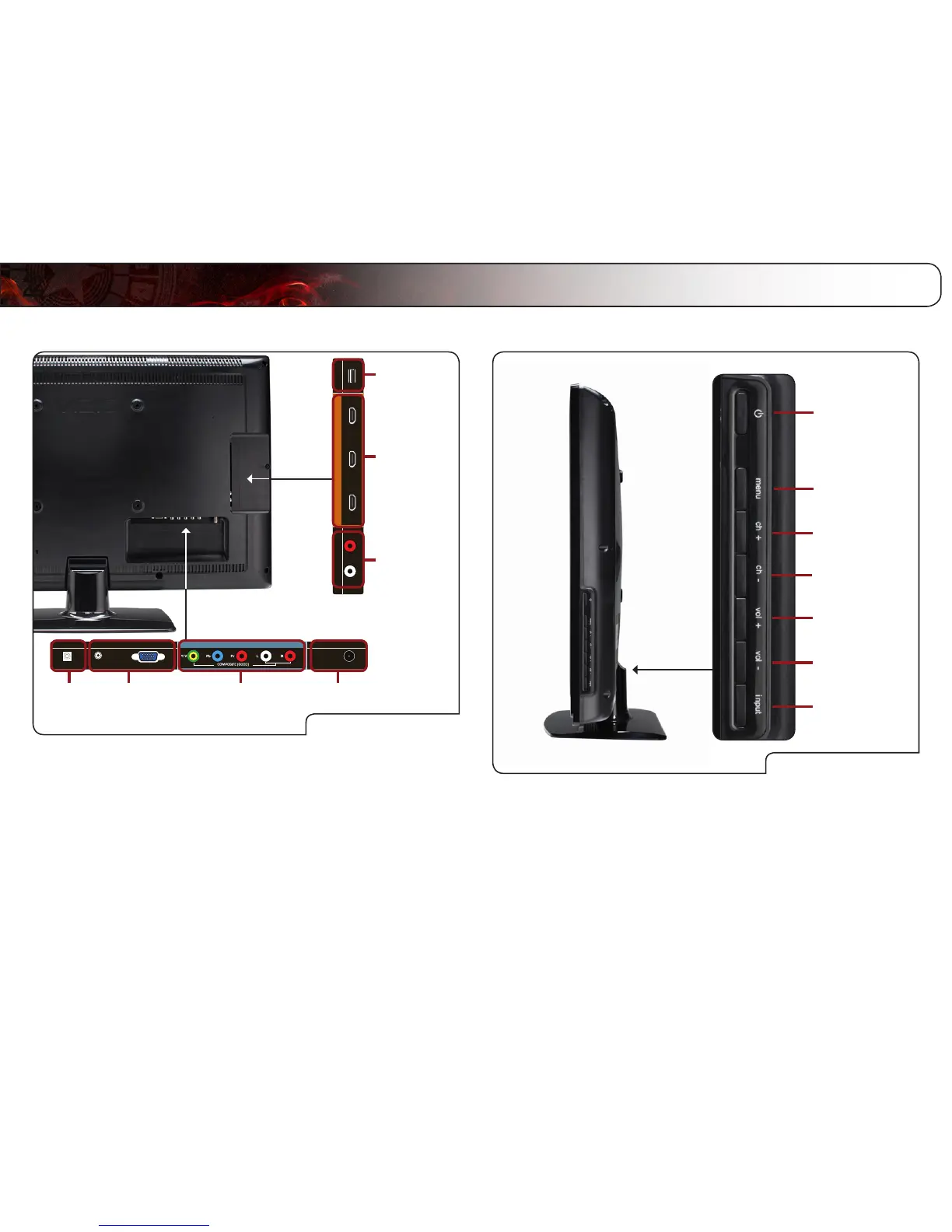

Controls and Connections
Right Side Panel
Right Side Panel
Power
Menu
Channel Up
Volume Up
Channel Down
Volume Down
Input
Power: Turn the TV on or off.
Menu: Display on-screen menu.
Channel Up/Down: Change the channel.
Volume Up/Down: Increase or decrease the loudness of the TVs audio.
Input: Change the input device. With each press of the
button, the TV will display a different input source.
Rear Panel
Rear Panel
Component/
Composite
Digital
Audio Out
RGB PCOPTICAL
PC
AUDIO CABLE / ANTENNA
COMPONENT(BETTER) DTV / TV AUDIO OUT RGB PC
DTV/TVRGB PC
1
3
2
HDMI(BEST)
USB
USBAUDIO OUT
R
L
USB
HDMI (1,2,3)
RCA Audio Out
USB: Connect a USB thumb drive to view photos.
HDMI (1,2,3): Connect HDMI devices.
RCA Audio Out: Connect RCA audio device (soundbar, receiver, etc).
DTV/TV: Connect RF/Coaxial connector from cable, antenna, or
satellite box.
Component/
Composite:
Connect component or composite video/audio device.
When using composite, use only yellow, white, and red
ports.
RGB PC: Connect RGB cable from computer. Use 3.5mm port to
connect PC audio.
Digital Audio Out: Connect SPDIF/Optical audio device (soundbar, re-
ceiver, etc).
