Vizio E60-C3 Service Manual

5
1.

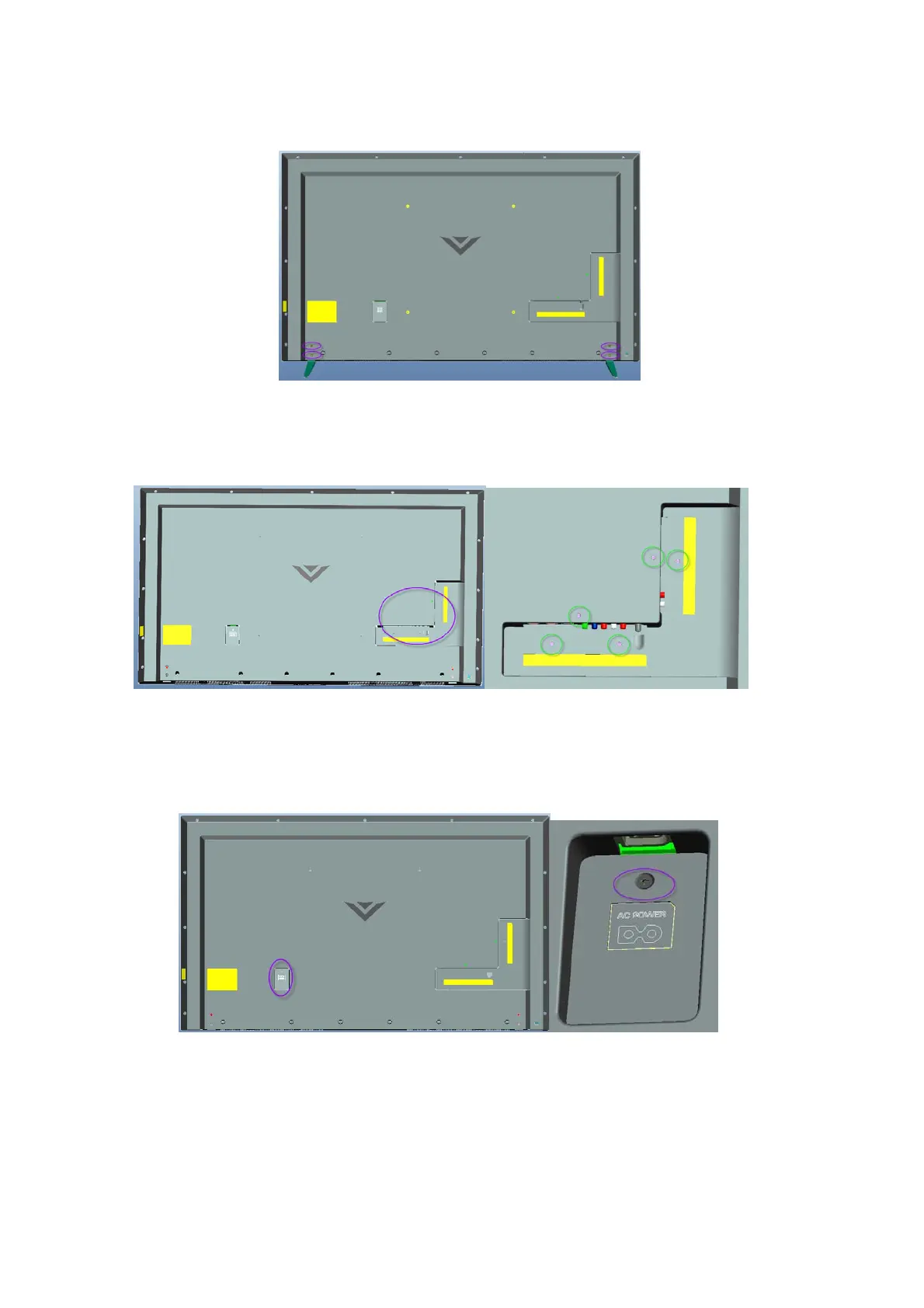

Remove the 4 crews as Fig.3 and pull out the FEET ASSY module
Fig.3
Step 2. Remove the REAR COVER Assy.
1. Remove the 5screws, around the I/O cover area as Fig.4.
Fig.4
2. Remove the 1 screw at the AC socket area as Fig.5.
Fig.5
3. Remove the 19 screws at the rear cover area as Fig.6.

Vizio E60-C3 Specifications

General

Screen shape	Flat
Response time	- ms
Display diagonal	60 \
Display brightness	- cd/m²
Native aspect ratio	16:9
LED backlighting type	Full-Array
Supported video modes	1080p
Contrast ratio (dynamic)	5000000:1
Viewing angle, horizontal	176 °
Display refresh rates supported	120 Hz
Motion interpolation technology	-
Music apps	Pandora, Spotify
Video apps	Netflix, YouTube
Lifestyle apps	Facebook, Twitter
Audio decoders	DTS Studio Sound
RMS rated power	10 W
Number of speakers	2
PC in (D-Sub)	No
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Wi-Fi standards	Wi-Fi 4 (802.11n)
On Screen Display (OSD) languages	ENG, ESP, FRE
Product color	Black
Panel mounting interface	400 x 400 mm
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (standby)	0.5 W
Package depth	172 mm
Package width	1447 mm
Package height	902 mm
Package weight	25400 g
Sustainability certificates	ENERGY STAR
Certification	UL, cUL, FCC Class B, BET7/ICES-003 Class B, IC, HDMI (CEC, ARC), Dolby Digital

Weight and Dimensions

Stand width	1186 mm
Depth (with stand)	279.9 mm
Height (with stand)	851.4 mm
Weight (with stand)	21000 g
Depth (without stand)	64.26 mm
Width (without stand)	1353 mm
Height (without stand)	786.4 mm
Weight (without stand)	20600 g
