4
CHAPTER 2. Removing of Major Parts
Vizio E60-C3
1. Assy/Panel Removal
Notes: Please put your machine on soft material to avoid scrape panel when you
disassemble it.

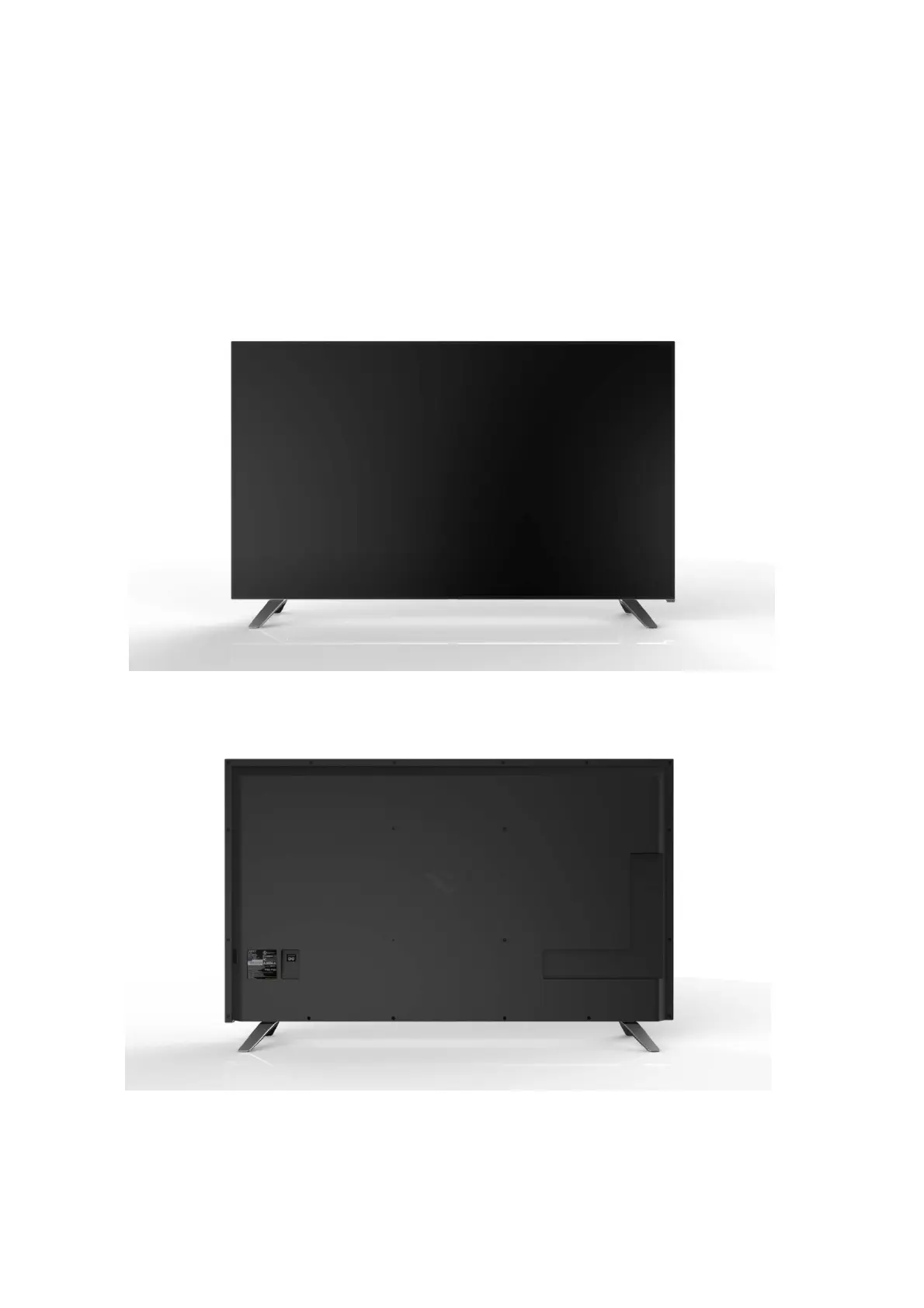

Front view
Fig.1
Back view
Fig.2
Step1. Remove the FEET Assy.

Other manuals for Vizio E60-C3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Vizio E60-C3 and is the answer not in the manual?

Vizio E60-C3 Specifications

General IconGeneral
Screen shapeFlat
Response time- ms
Display diagonal60 \
Display brightness- cd/m²
Native aspect ratio16:9
LED backlighting typeFull-Array
Supported video modes1080p
Contrast ratio (dynamic)5000000:1
Viewing angle, horizontal176 °
Display refresh rates supported120 Hz
Motion interpolation technology-
Music appsPandora, Spotify
Video appsNetflix, YouTube
Lifestyle appsFacebook, Twitter
Audio decodersDTS Studio Sound
RMS rated power10 W
Number of speakers2
PC in (D-Sub)No
HDMI ports quantity3
DVI-D ports quantity0
USB 2.0 ports quantity1
Wi-Fi standardsWi-Fi 4 (802.11n)
On Screen Display (OSD) languagesENG, ESP, FRE
Product colorBlack
Panel mounting interface400 x 400 mm
AC input voltage120 V
AC input frequency60 Hz
Power consumption (standby)0.5 W
Package depth172 mm
Package width1447 mm
Package height902 mm
Package weight25400 g
Sustainability certificatesENERGY STAR
CertificationUL, cUL, FCC Class B, BET7/ICES-003 Class B, IC, HDMI (CEC, ARC), Dolby Digital
Weight and Dimensions IconWeight and Dimensions
Stand width1186 mm
Depth (with stand)279.9 mm
Height (with stand)851.4 mm
Weight (with stand)21000 g
Depth (without stand)64.26 mm
Width (without stand)1353 mm
Height (without stand)786.4 mm
Weight (without stand)20600 g
