Vizio P602ui-B3 User Manual

2

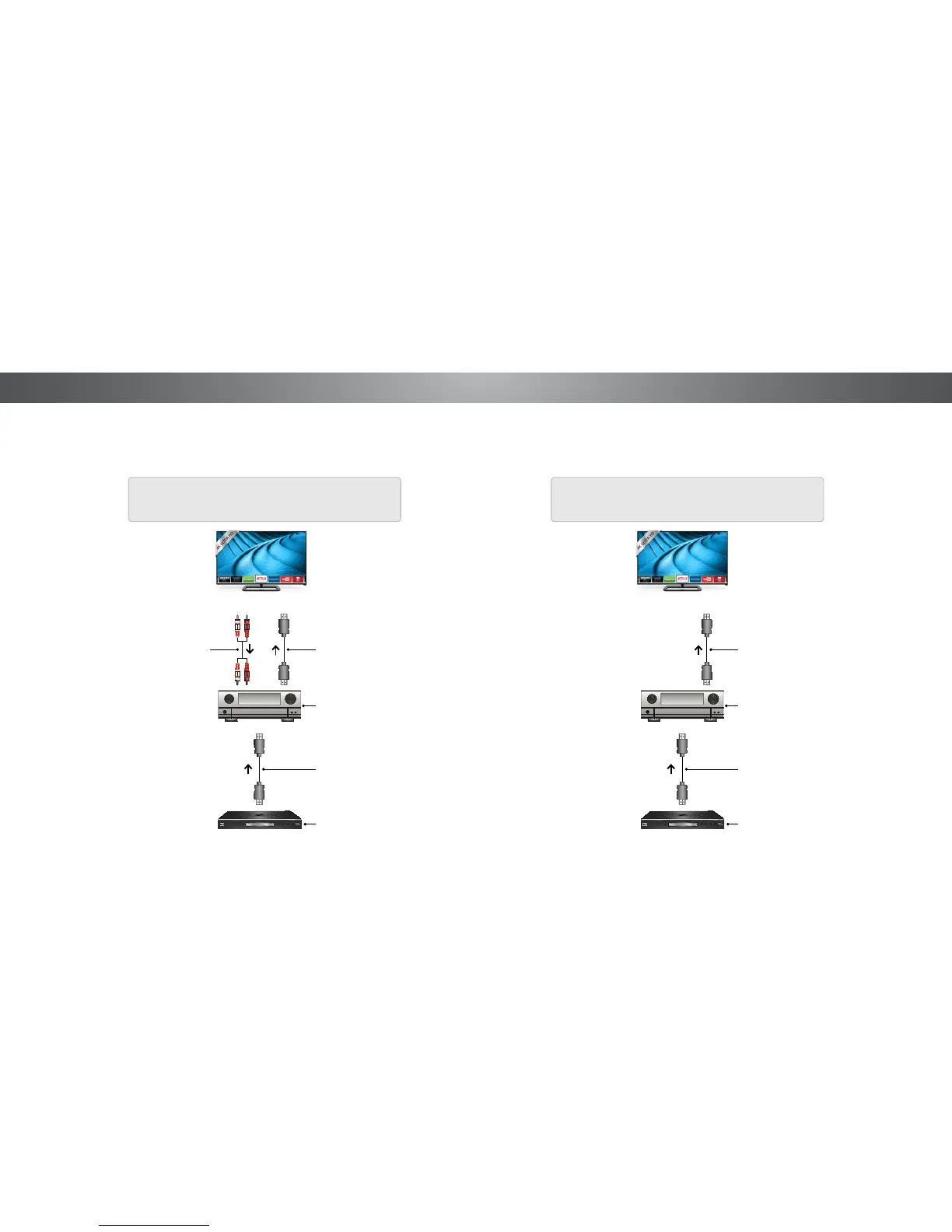

CONNECTING AN AUDIO DEVICE - ARC
Your Home Audio Receiver
WITHOUT HDMI ARC
Your TV
Without an HDMI ARC setup, your TV will transmit audio signal
from the built-in tuner and VIA apps to your home audio
receiver through a separate audio connection.
HDMI Cable
HDMI Cable
Your Blu-Ray Player
RCA (Audio)
Your Home Audio Receiver
WITH HDMI ARC
Your TV
With an HDMI ARC setup, the audio connection between
your TV and Home Audio Receiver can be removed. The HDMI
cable will transmit audio signal to and from your TV with an
all-digital audio/video connection.
HDMI Cable
HDMI Cable
Your Blu-Ray Player
18

Vizio P602ui-B3 Specifications

General

Screen Type	led
Wall Mount	400mm x 400mm
Screen Size	60 inches
Refresh Rate	240hz
USB Ports	1
Component Video Inputs	1
Composite Video Inputs	1
DVI	0
Remote Control	smart
3D	no
Width with Stand	53.59 inches
Depth without Stand	2.5 inches
Height without Stand	30.9 inches
Net Weight without Stand	48.7 pounds
