VIZIO SV470XVT1A User Manual
Version 6/2/2008 12
www.VIZIO.com
1

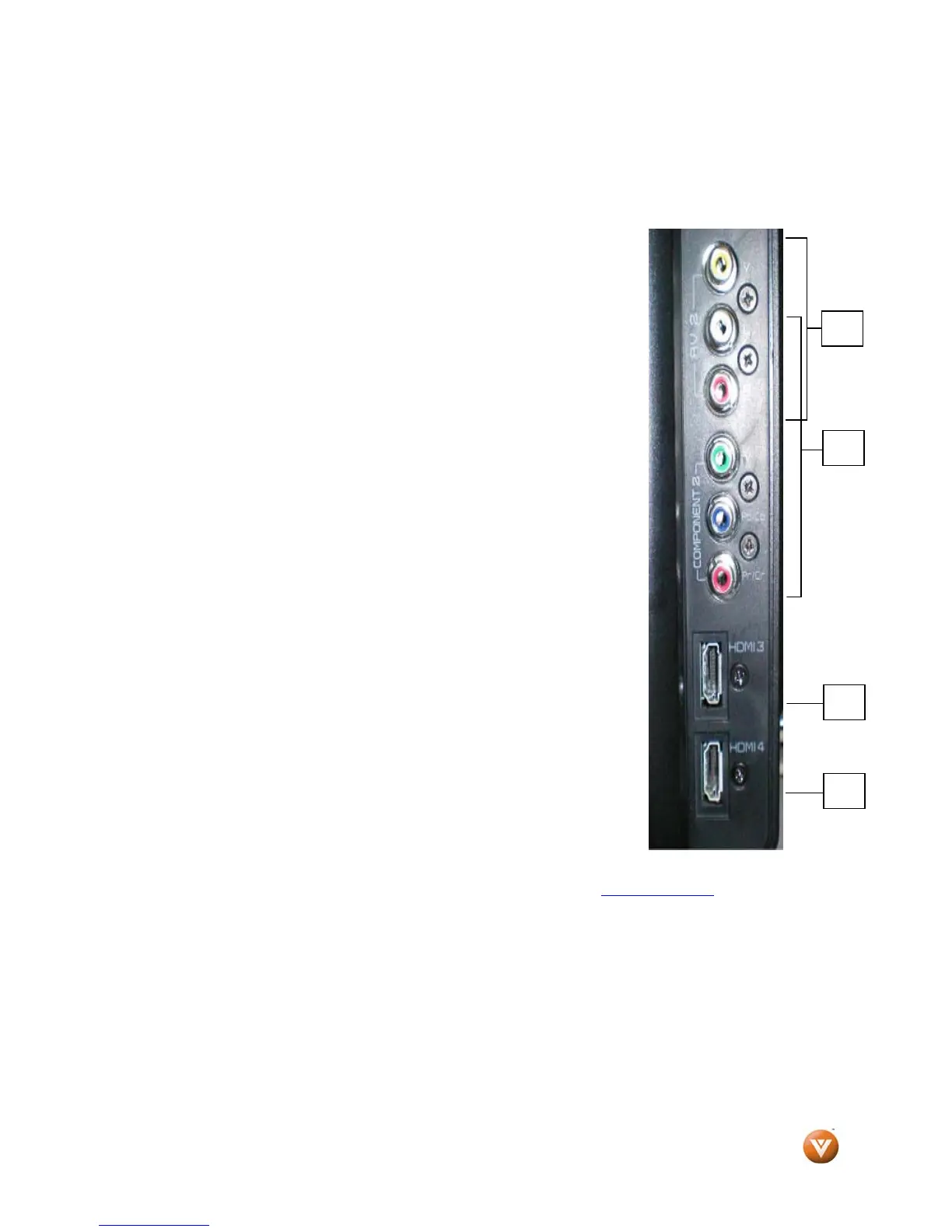

1.4 Right-Side Panel Connection
1. AV2 – Connect the secondary source for composite video devices,
such as a VCR or video game. Use the white and red connectors
to connect the external audio from the same source, and then use
the yellow connector to connect the external video from the same
source. Note: The red and white audio connectors are shared
between AV2 and COMPONENT2.
2. COMPONENT2 (YPb/CbPr/Cr with Audio L/R) - Connect the
secondary source for component video devices such as a DVD
Player or set top box here. From top to bottom, left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), then connect
white for left audio and red for right audio inputs. Note: The red
and white audio connectors are shared between AV2 and
COMPONENT2.
3. HDMI 3 - Connect the third source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
4. HDMI 4 - Connect the third source for digital video such as a DVD
multimedia player or set top box through this all digital connector.
Certified HDMI and HDMI-DVI cables are available for purchase from www.VIZIO.com
or by calling 888-
VIZIOCE (888-849-4623)
2
3
4
